- Product Description -

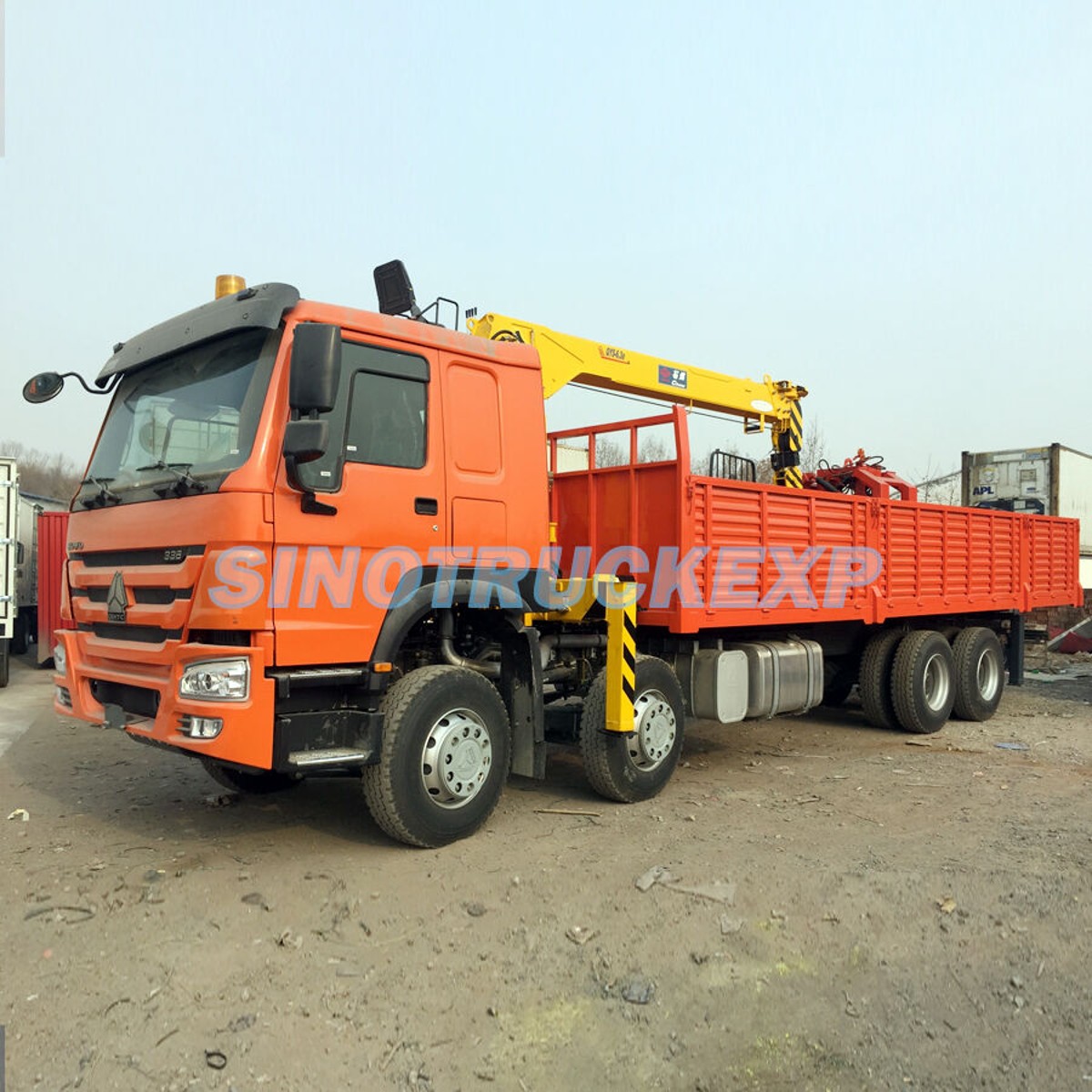

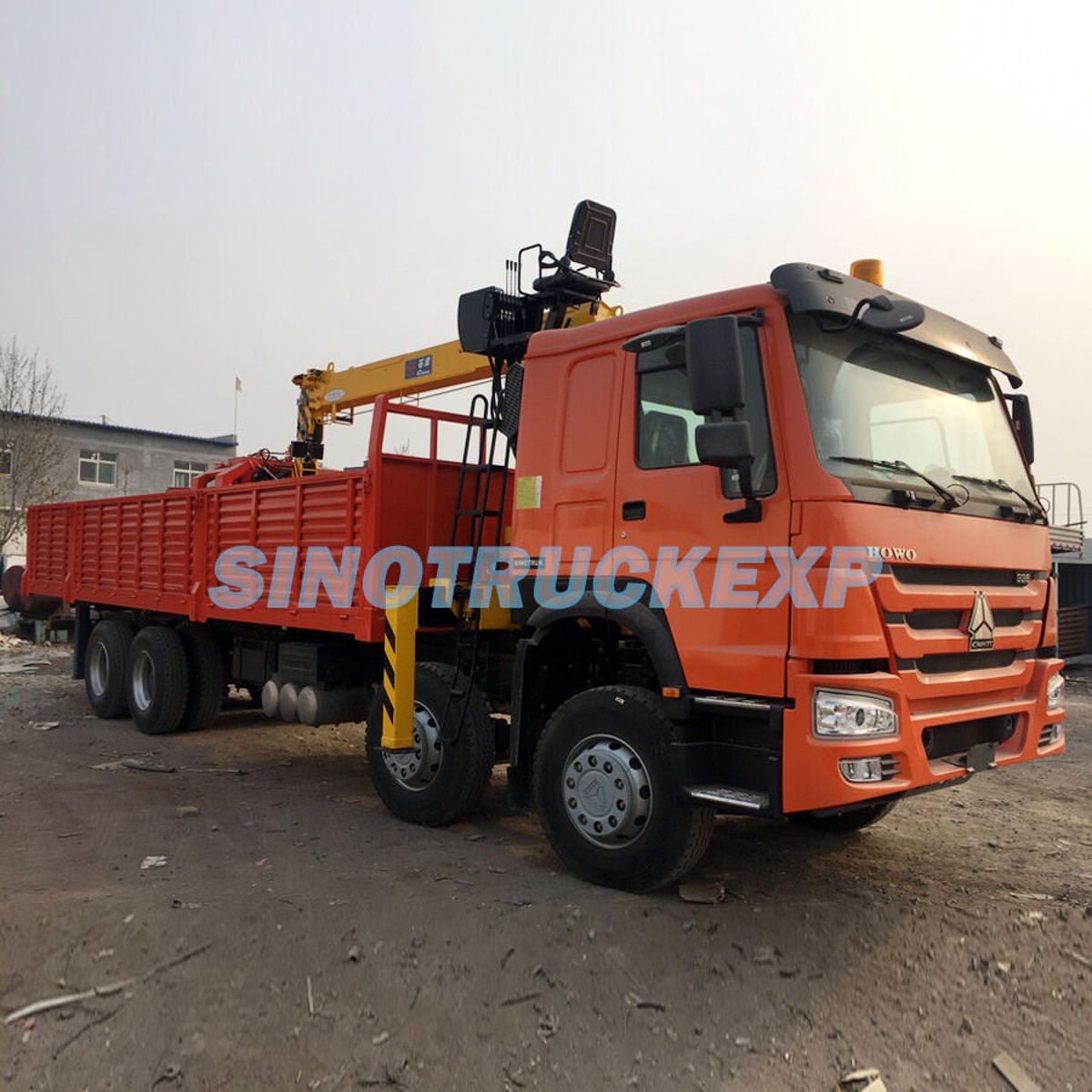

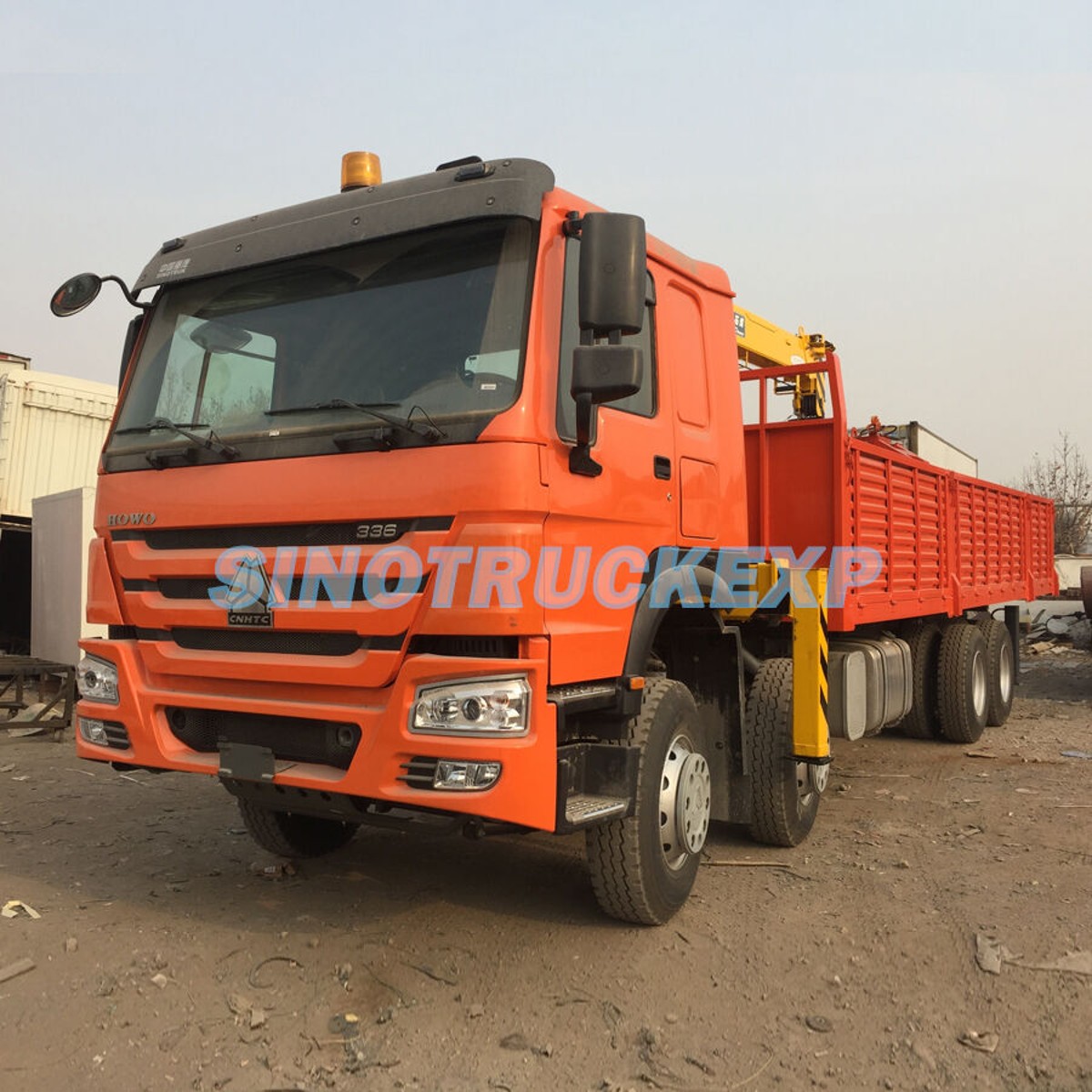

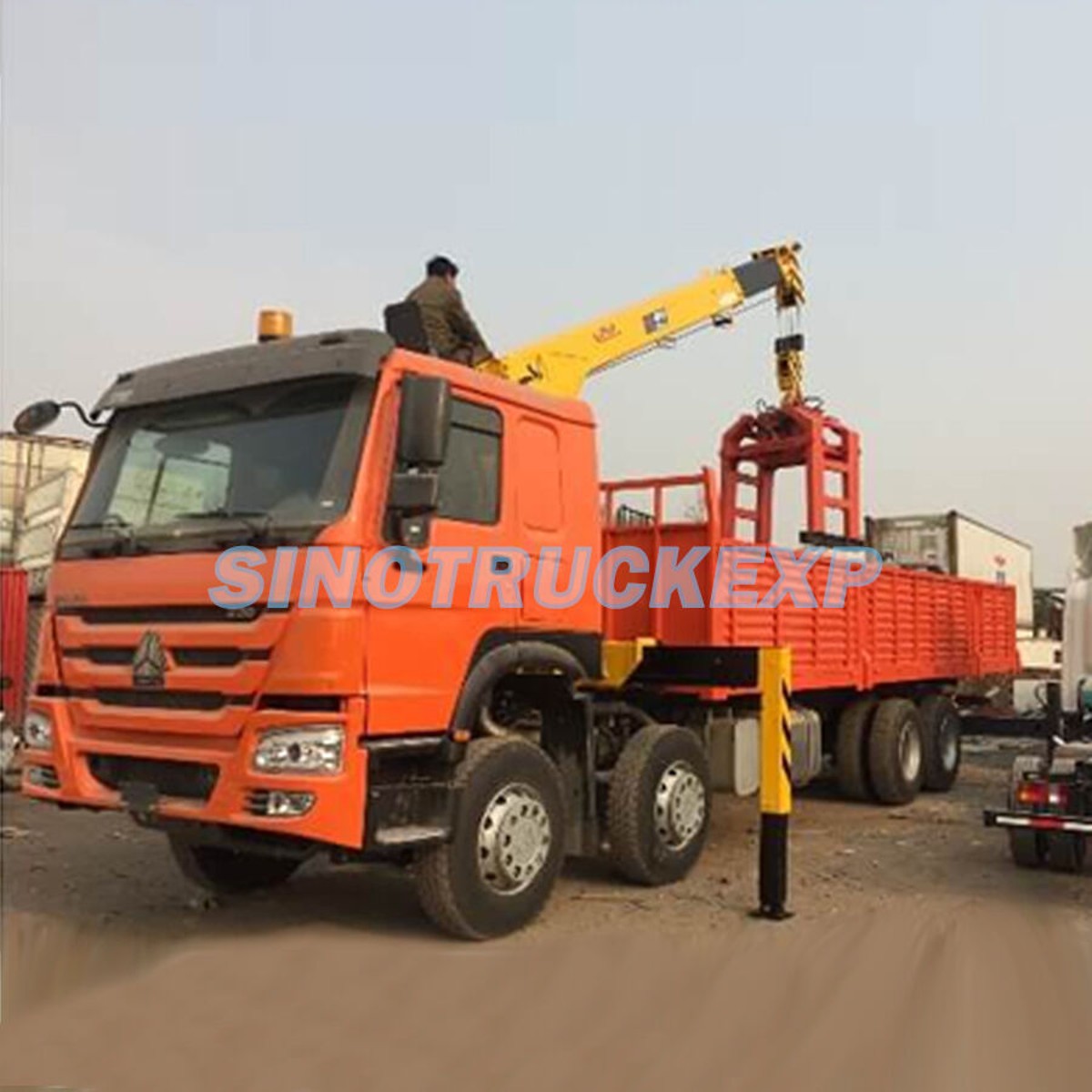

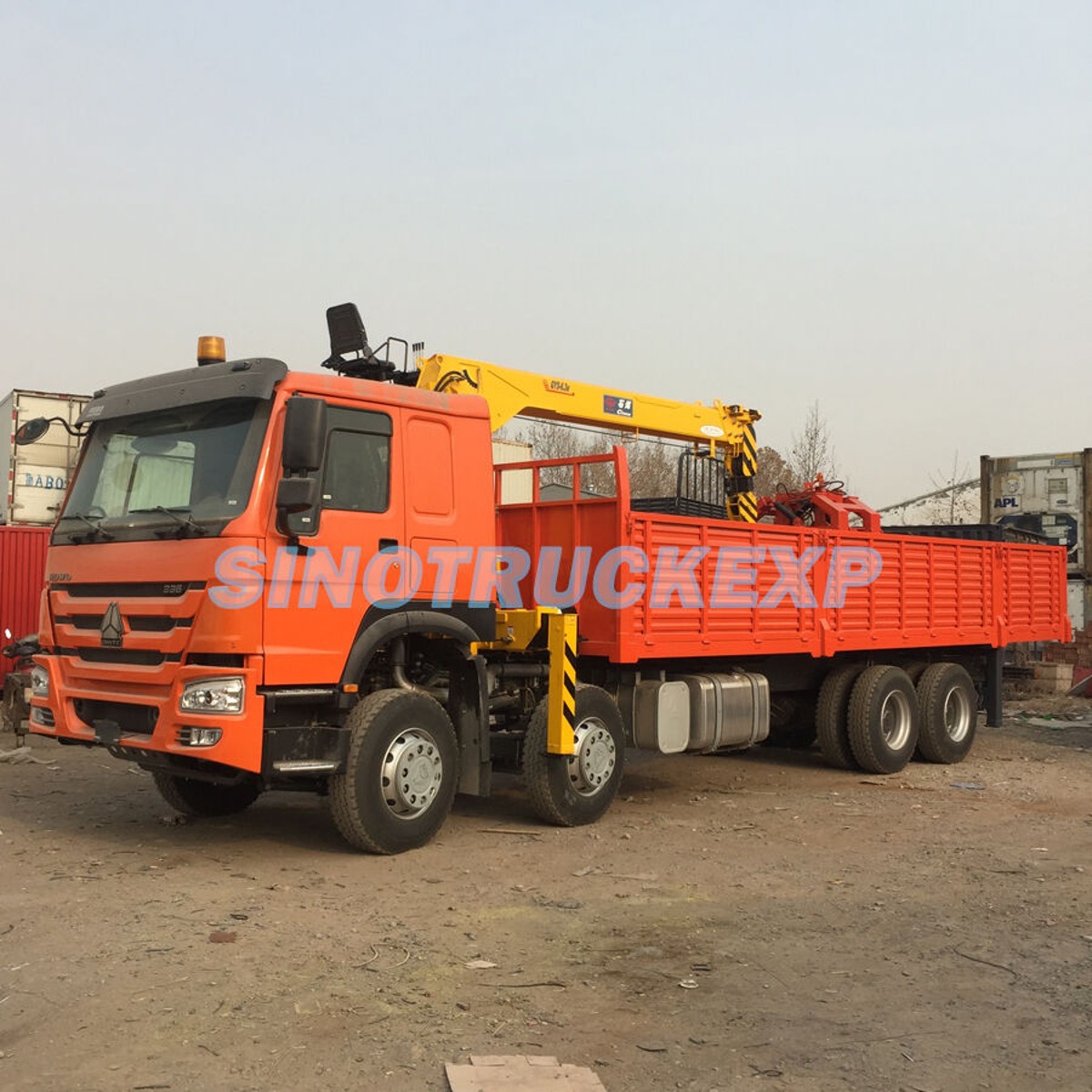

SINOTRUK HOWO 8X4 12 wheelers cargo XCMG HIAB crane truck with hooklift
| Truck Brand | SINOTRUK—HOWO ( LHD) | ||||
| Truck Model | ZZ1317N4667 | ||||
| Dimension(Lx W x H)(unloaded)(mm) | 11182*2500*3750 | ||||
| Cargo body size (L*W*H, mm) | 8500*2500*600Bottom:3mm, Side: 1.5mm | ||||
| Crane Model | SQ12SK3Q | ||||
| Max Lifting capacity(kg) | 12000 | ||||
| Max Lifting Moment(T.M) | 30 | ||||
| Recommend Power(kw) | 30 | ||||
| Crane Weight(kg) | 4200 | ||||
| Installation space(mm) | 1300 | ||||
| Rotation Angle | All Rotation | ||||
| Max Oil Flow of Hydraulic System | 63 L/min | ||||
| Max Pressure of Hydraulic System | 26 Mpa | ||||
| Crane Type | telescopic boom | ||||
| Approaching angle/Departure angle(°) | 16/15 | ||||
| Overhang(front/rear) (mm) | 1500/2707 1540/2530 | ||||
| Wheel base (mm) | 1800+4600+1350 | ||||
| Max speed(km/h) | 95 | ||||
| Curb weight(kg) | 13070 | ||||
| Loading Weight(kg) | 31000 | ||||
| Engine(made in China) | Model | WD615.47 water-cooled,four strokes,6 cylinders in line with water cooling , directly injection | |||
| Fuel type | Diesel | ||||
| Horse Power, max(kw/rpm) | 371HP | ||||
| Emission | EURO II | ||||
| Fuel tanker capacity (L) | 300 | ||||
| Transmission | Model | HW10,10 forwards and 2 reverse | |||
| PTO | Model | 50# | |||
| Brake system | Service brake | Dual circuit compressed air brake | |||
| Parking brake | spring energy, compressed air operating on rear wheels | ||||
| Auxiliary brake | Engine exhaust brake | ||||
| Steering system | Model | 8098 hydraulic steering with power assistance | |||
| Front axle | HF9 | ||||
| Rear axle | HC16 | ||||
| Color | Optional | ||||
| Tyre | 12.00R20, steel wire tire | ||||
| Tyre quantity | 12pcs + 1 spare | ||||
| Electrical system | Battery | 2X12V/165Ah | |||
| Alternator | 28V-1500w | ||||
| Starter | 7.5Kw/24V | ||||
| Cab | HW76 cab, Single sleeper with air conditioner, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | ||||
