- Product Description -

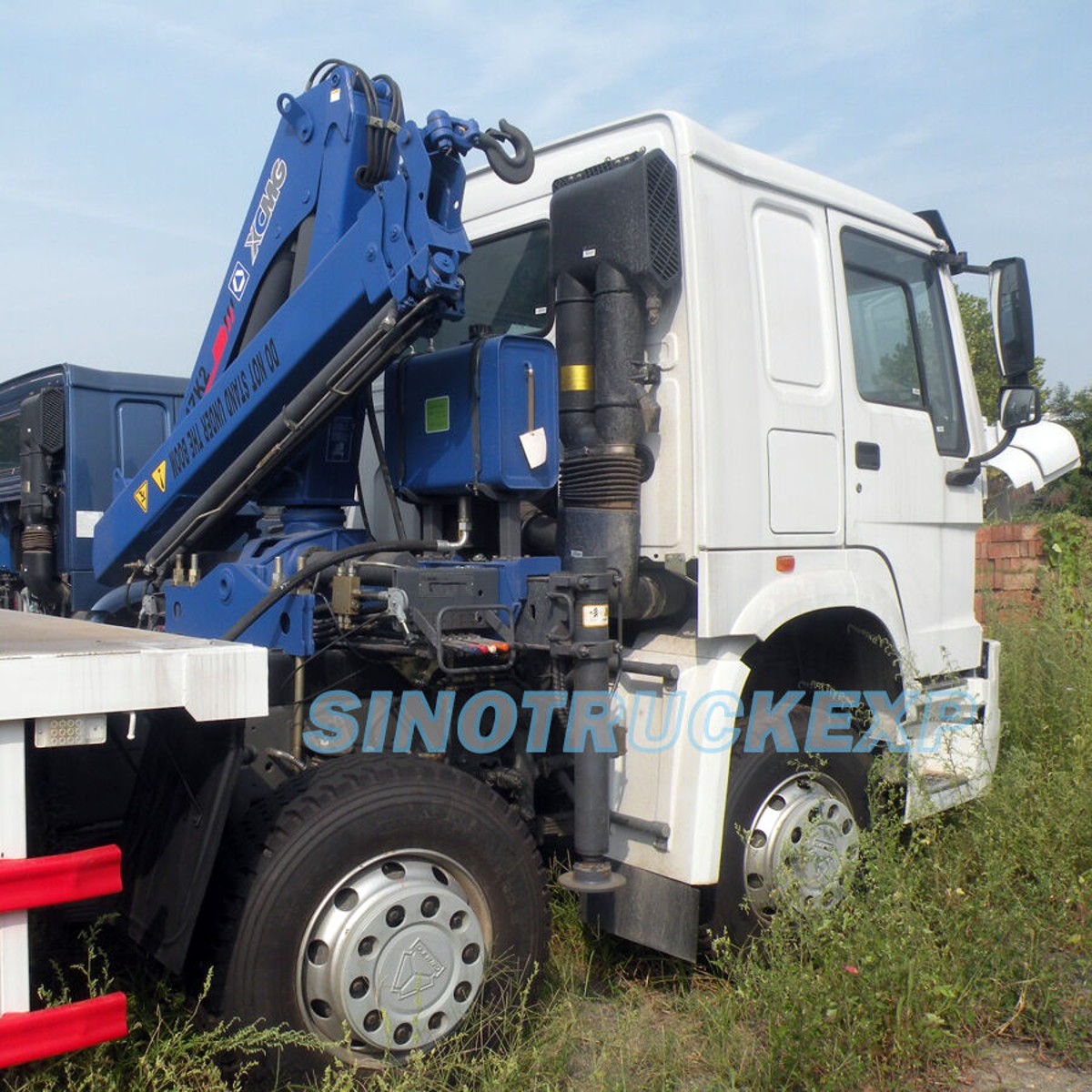

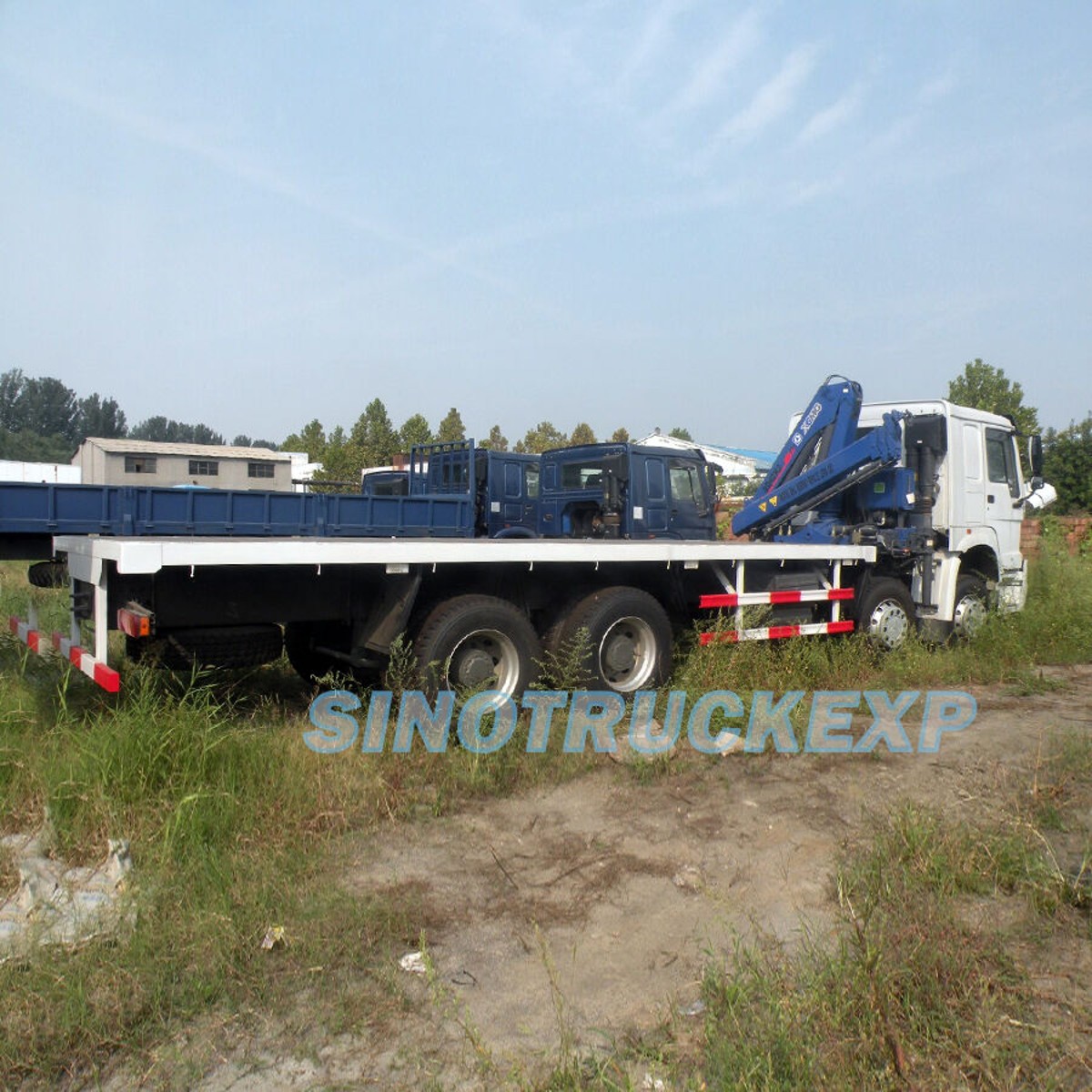

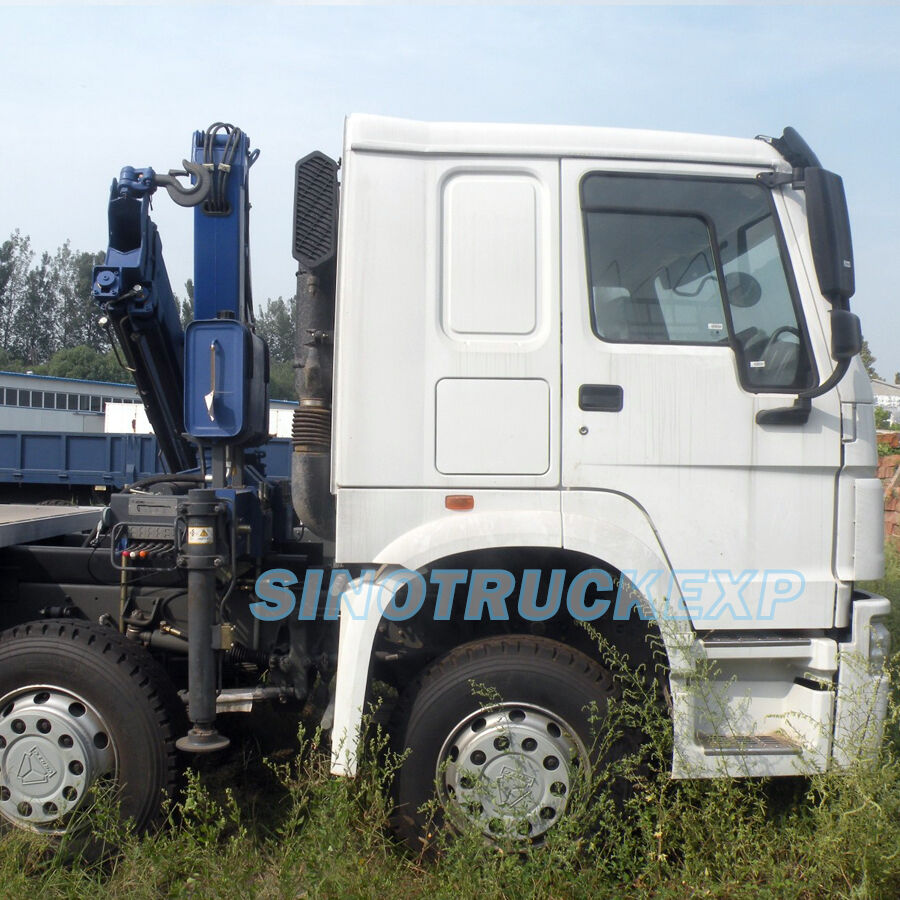

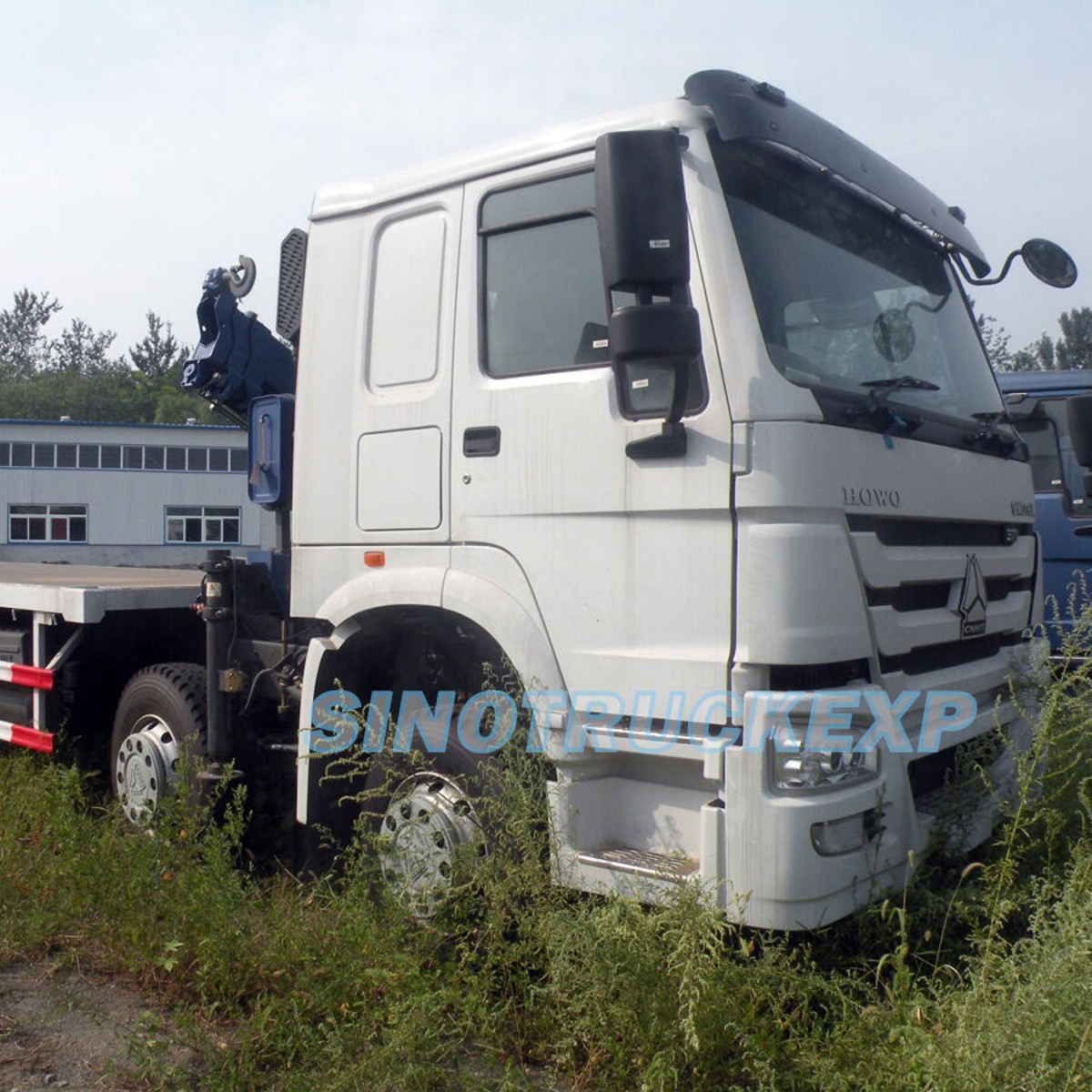

| Sinotruk Howo 8x4 12 wheeler Side XCMG Crane Truck for 20ft Container | |
| Truck Model | ZZ1317N3867W |
| Drive type | 8x4, RHD, LHD |
| Cabin | cabin: HW76 long cabin, two seats |
| Engine | 371hp, EURO2, 380hp, Euro 4 |
| Transmission | HW19710, 10 forward&2 |
| Chassis | with TGA MAN chassis or double chassis frames |
| Front axle | loading capacity: 2x9000kgdrum brake, HF9 |
| Rear axle | loading capacity:2x16000kgHC16 |
| Tire | 12R22.5/11R22.5/315/80R22.5 tubeless tyre with one spare tire |
| fuel tanker | 400L |
| Crane specification | XCMG Brand SQ4ZK2 |
| Max lifting capacity | 37000KG, Tire weight: 7000 kg |
| Max pressure | 28 Mpa for hydraulic system |
| Working range | Max working range: 4000mmOverall height: 2490mmOverall width: 2500mmOverall length: 1090mmPlatform size: 7.00m*2.5m |
| Main features | i. Power take off; sideloader can slide to load 20FT containers; wireless remote control/Manual operatingii.the front and rear crane can work together and separate, adjust container convenientlyiii: Safety control with stop button; elegant appearance; Reliable performance ; convenient operation & maintaince |
| Model | SQ4ZK2 | Unit | ||
| Max Lifting Moment | 8.4 | t.m | ||
| Max Lifting Capacity | 4000 | kg | ||
| Recommend Power Needed At Recommend Oil Flow | 14 | kw | ||
| Max Oil Flow of Hydraulic System | 25 | L/min | ||
| Rated Pressure Of Hydraulic System | 26 | MPa | ||
| Oil Tank Capacity | 60 | L | ||
| Rotation Angle | 370 | . | ||
| Crane Weight | 1200 | kg | ||
| Installation Space | 850 | mm | ||
| SQ4ZK2 Lifting capability diagram | ||||
| Working radius (m) | 2.1 | 4.15 | 5.8 | 7.3 |
| Lifting capacity (kg) | 4000 | 1840 | 1260 | 920 |
