- Product Description -

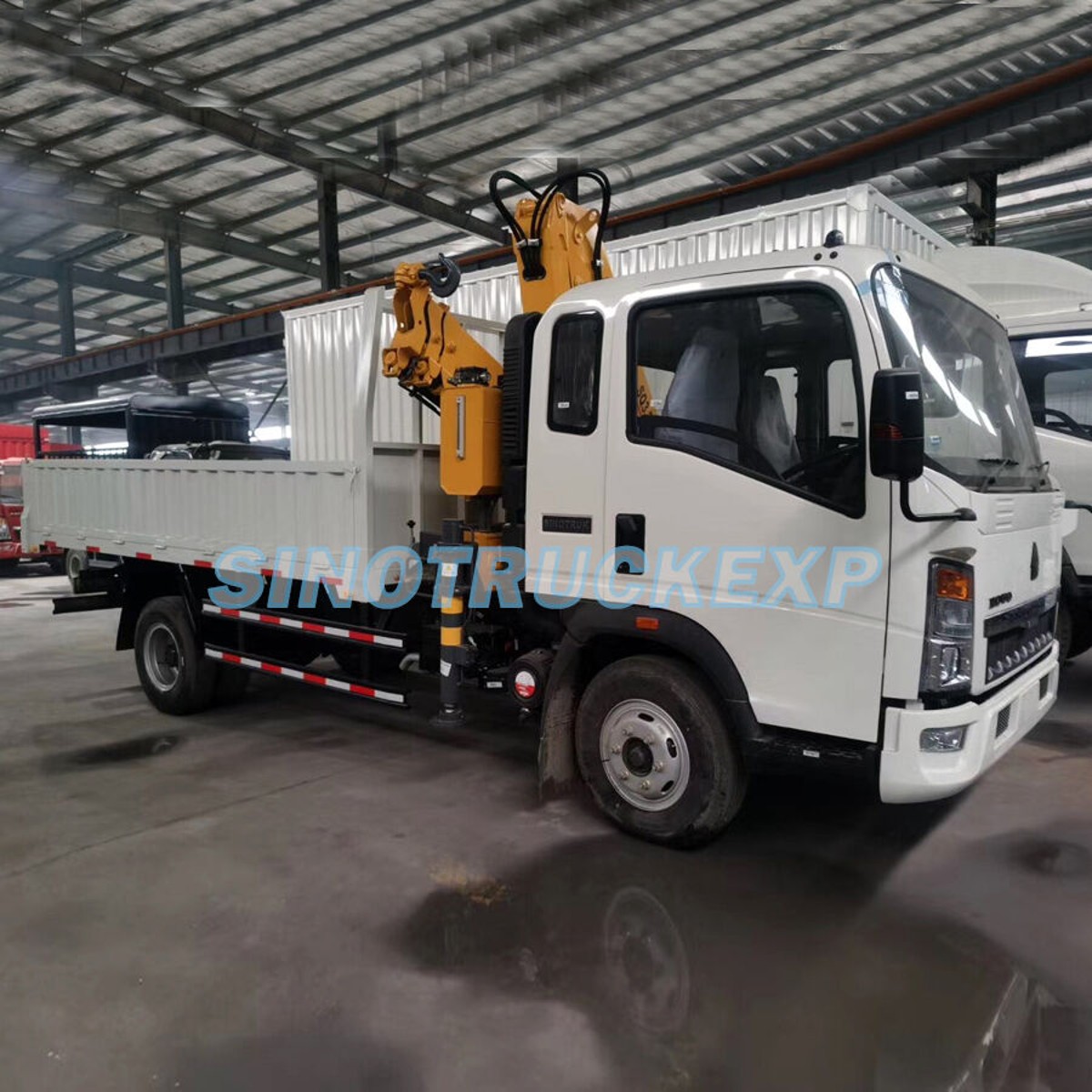

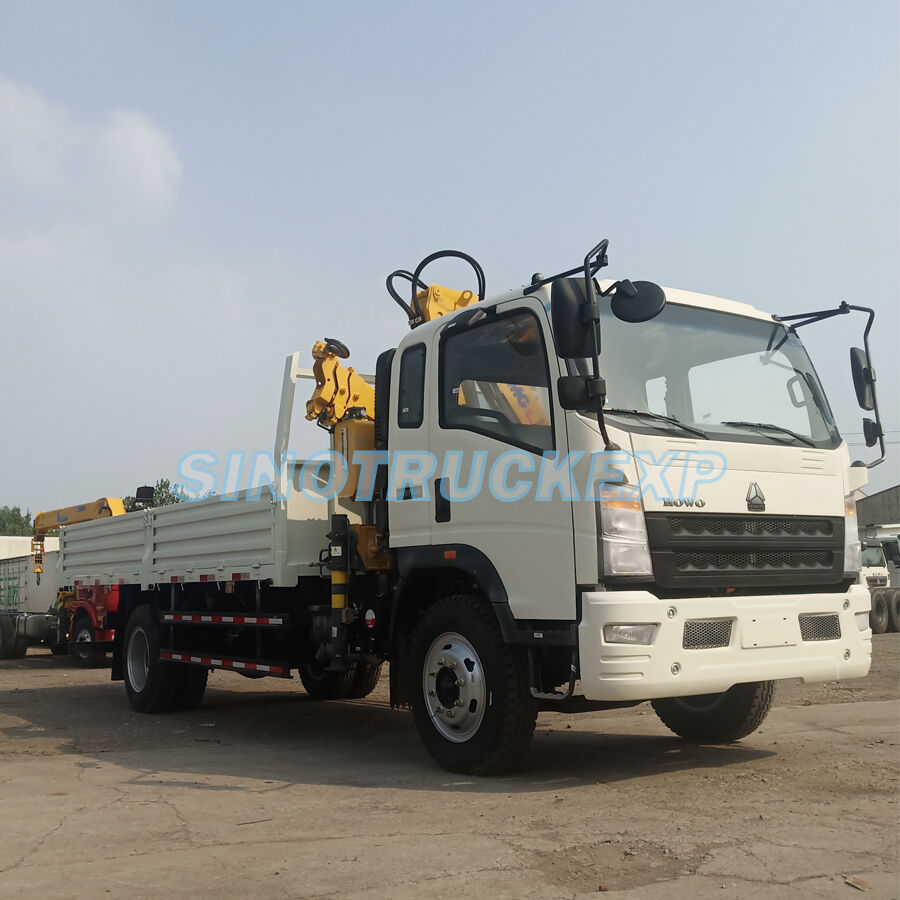

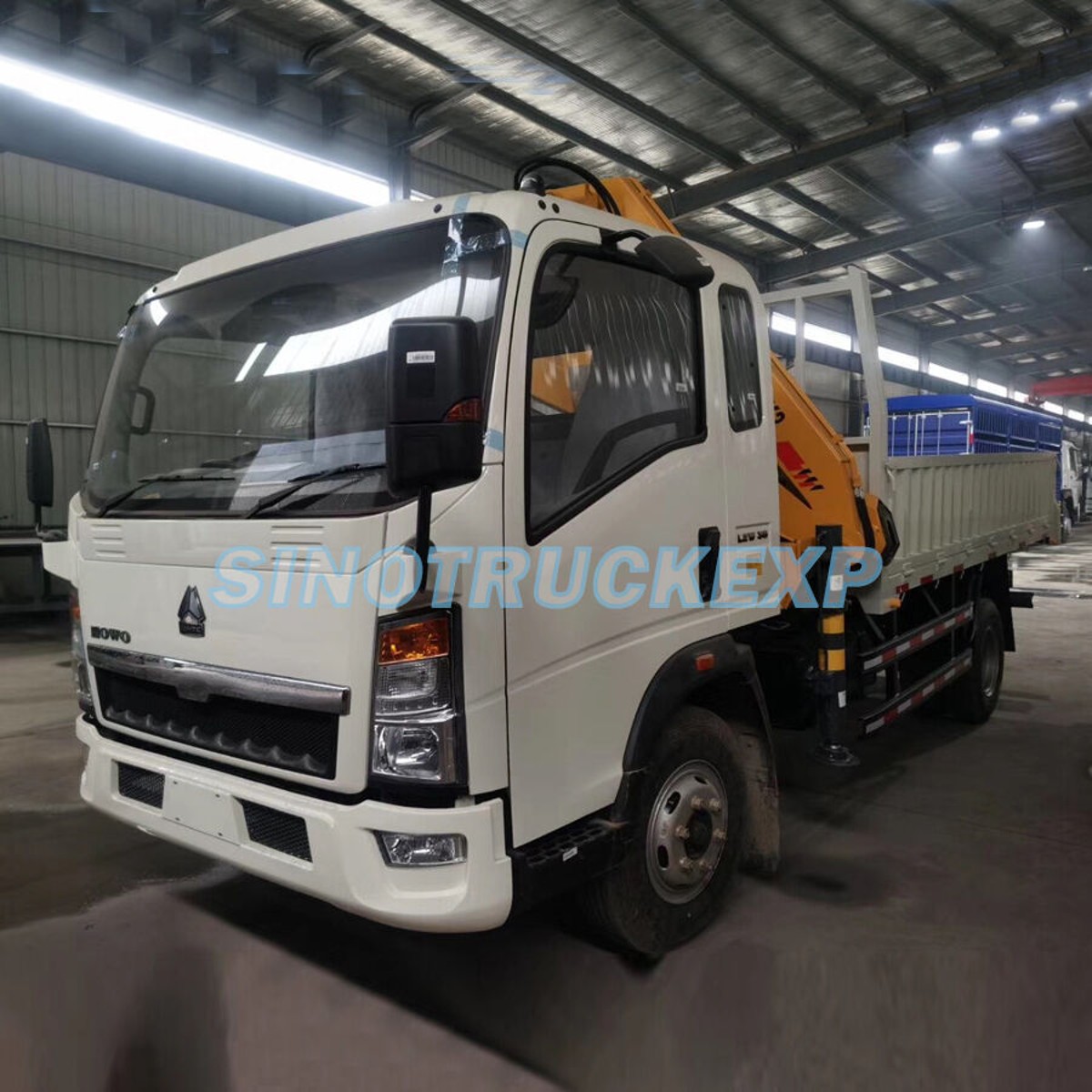

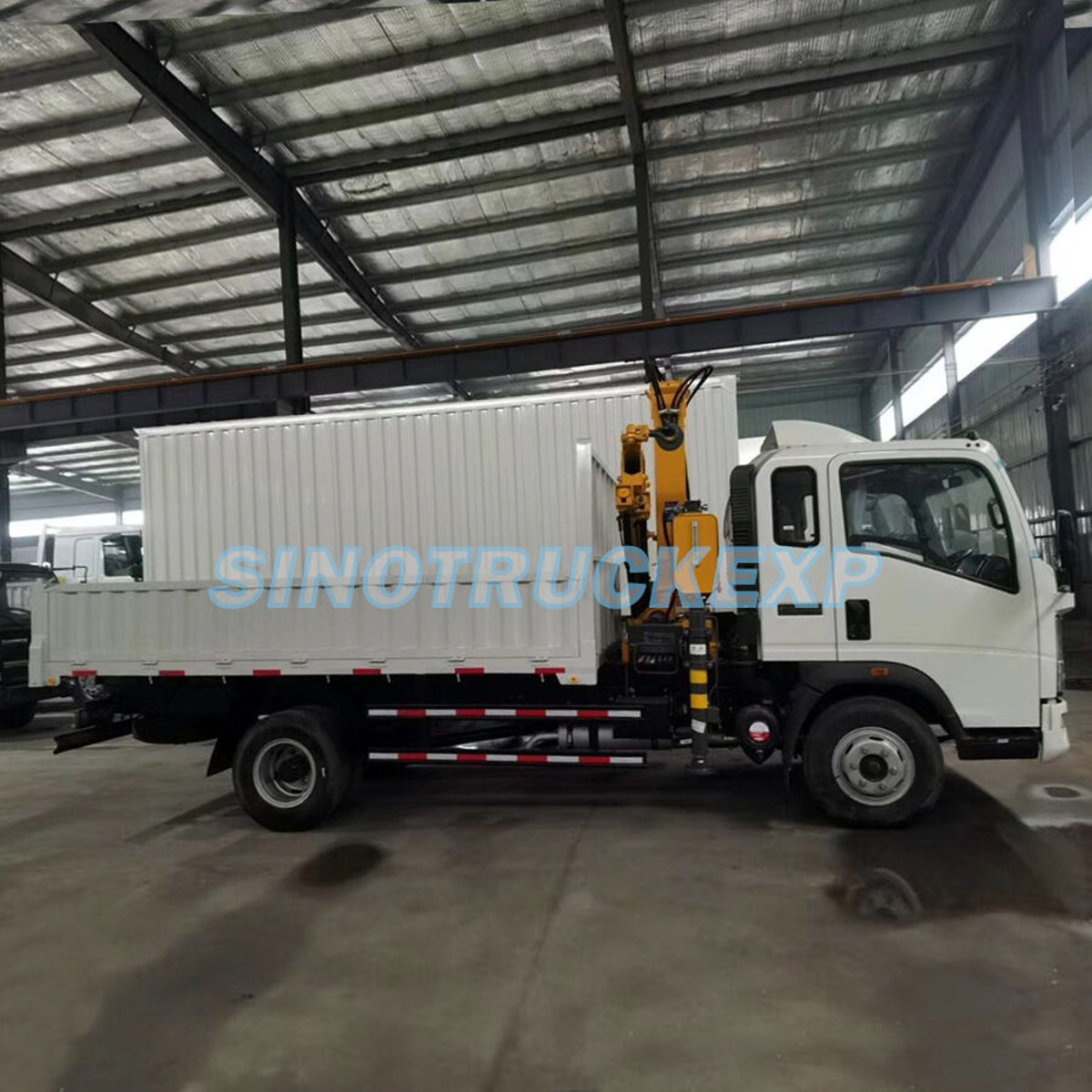

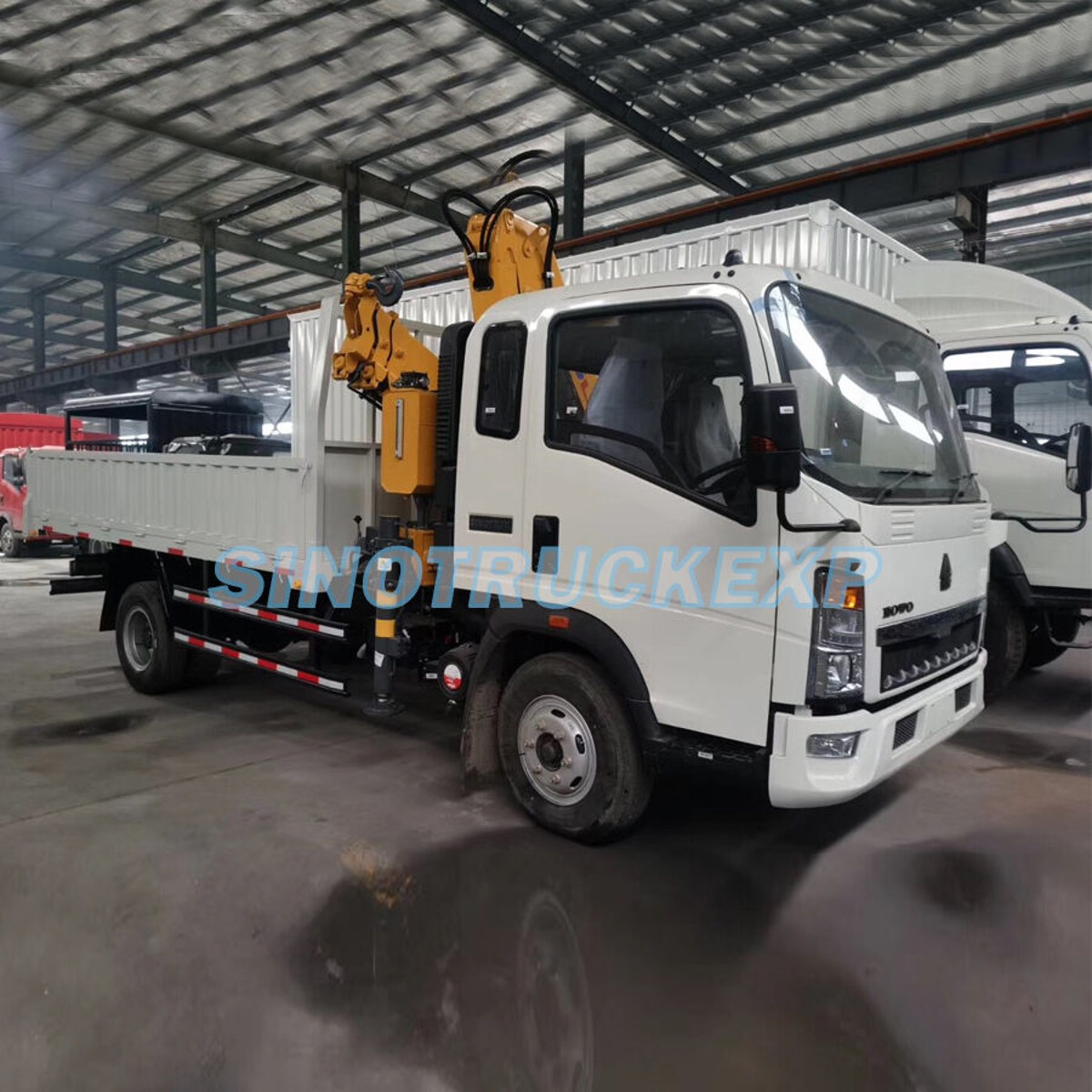

HOWO 4x2 Truck with XCMG 3.2T Crane ZZ1127G4715C1,ZZ1168G4515C1,ZZ1168E4514C1, L3W 47,ZZ1127G4715D1,ZZ1168G4515D1,
| Cabin | Driving type 4x2 LHD/RHD2080 standard cab, with two seats, and air condition, one sleeper, without air deflector. 70°hydraulically tillable to the front as attached photo for ref. | |
| Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 8500x2500x3350 |
| Carriage Size (L x W x H) mm | 4900x2300x600 | |
| Wheel base (mm) | 4500 | |
| Wheel track (front/rear) (mm) | 1589/1599 | |
| Weight in KGS | Tare Weight | 6000 |
| payload | 8000 | |
| Front axles loading capacity | 1x4500 | |
| Rear axles loading capacity | 1x9500 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Brand | YUCHAI |
| Model | 4110Y | |
| Type | 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 140 | |
| Emission standard | Euro Ⅱ, Diesel | |
| Gearbox | WLY6T51, 6 Forwards gear & 1 reverse gear, Manual | |
| Tire | 8.25R20 steel radial tire 7 pcs including one spare tire | |
| Crane specifications | Brand : XCMG | |
| Model: SQ3.2ZK2Q | ||
| Type: straight | ||
| Max lift capacity: 3200 kg | ||
| Max working radius 7.3 m, Max lifting height 9.2m | ||
Specifications of the Crane
| Model | SQ3.2ZK2 | Unit | |||
| Max Lifting Moment | 6.72 | t.m | |||
| Max Lifting Capacity | 3200 | kg | |||
| Recommend Power Needed At Recommend Oil Flow | 14 | kw | |||
| Max Oil Flow of Hydraulic System | 25 | L/min | |||
| Rated Pressure Of Hydraulic System | 22 | MPa | |||
| Oil Tank Capacity | 60 | L | |||
| Rotation Angle | 370 | ° | |||
| Crane Weight | 1200 | kg | |||
| Installation Space | 850 | mm | |||
| Choice of Chassis | EQ1092FJ1;EQ1092FJ;NKR77PLLWCJAY ;DFL1120B D530;EQ1081GJ12D5;HFC1083K103R1D;EQ1092F3GJ1;EQ5121GFJ;Z1127G4715C1,ZZ1168G4515C1,ZZ1168E4514C1, L3W 47 | ||||
| SQ3.2ZK2 Lifting capability diagram | |||||
| Working radius (m) | 2.1 | 4.15 | 5.8 | 7.3 | |
| Lifting capacity (kg) | 3200 | 1300 | 950 | 650 | |
