- Product Description -

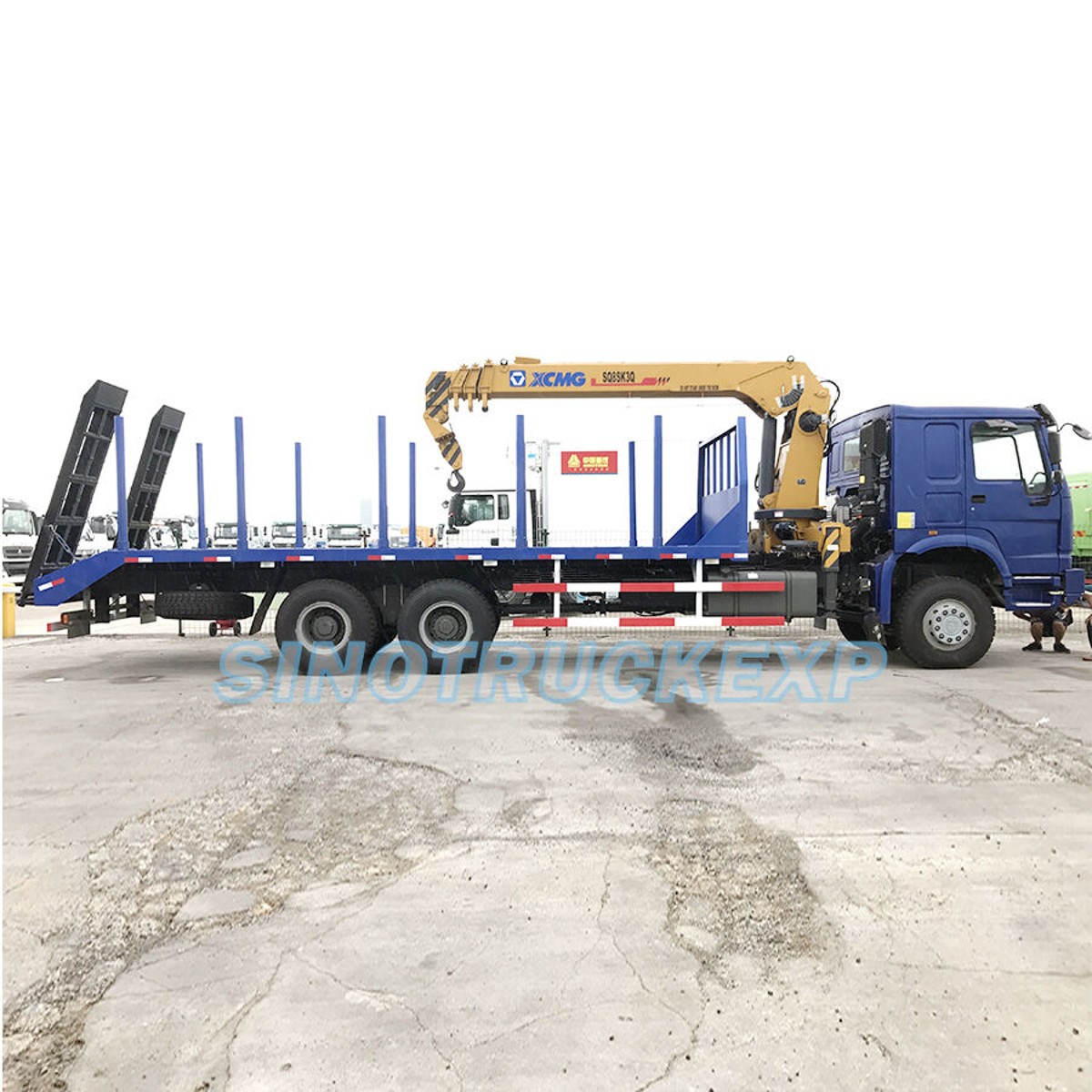

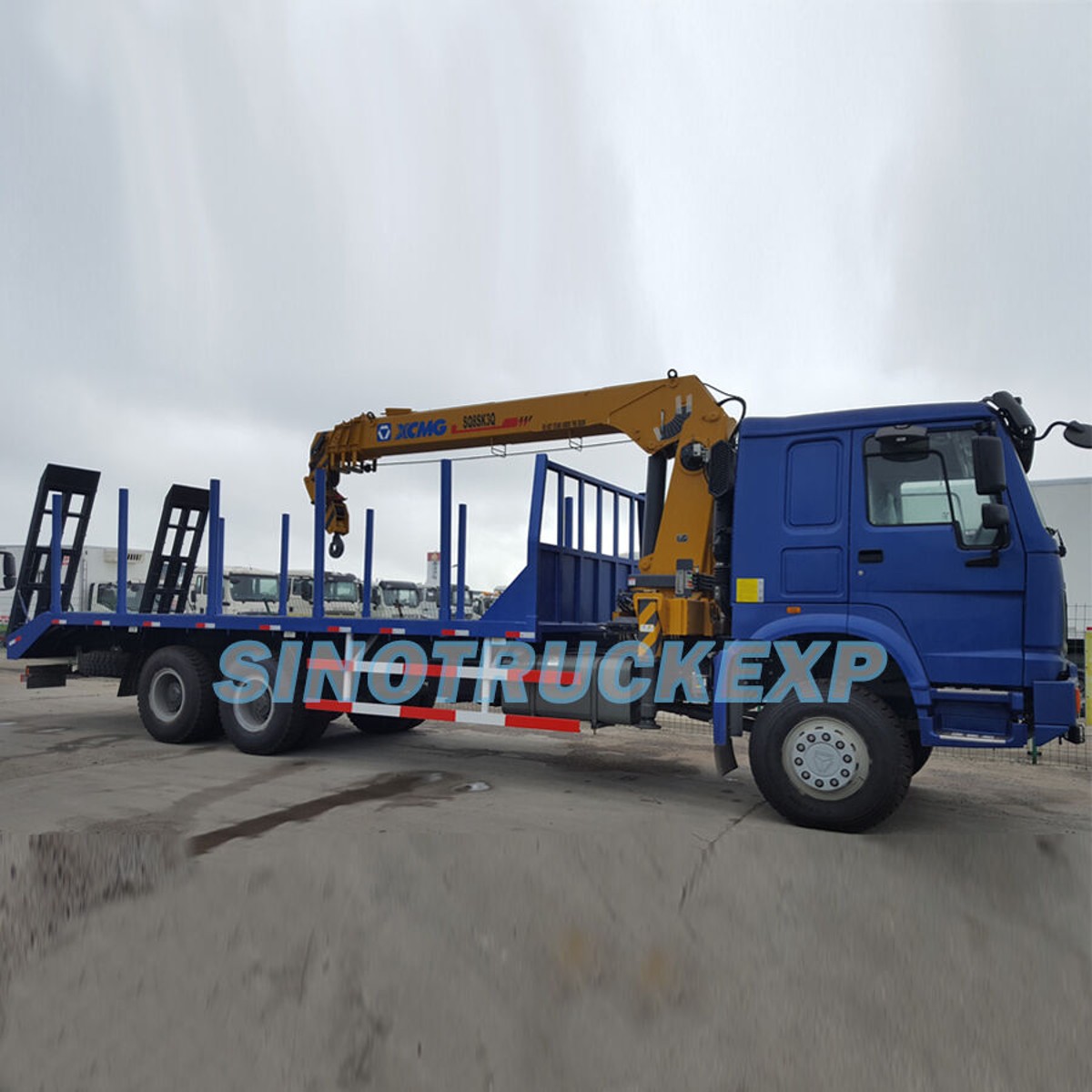

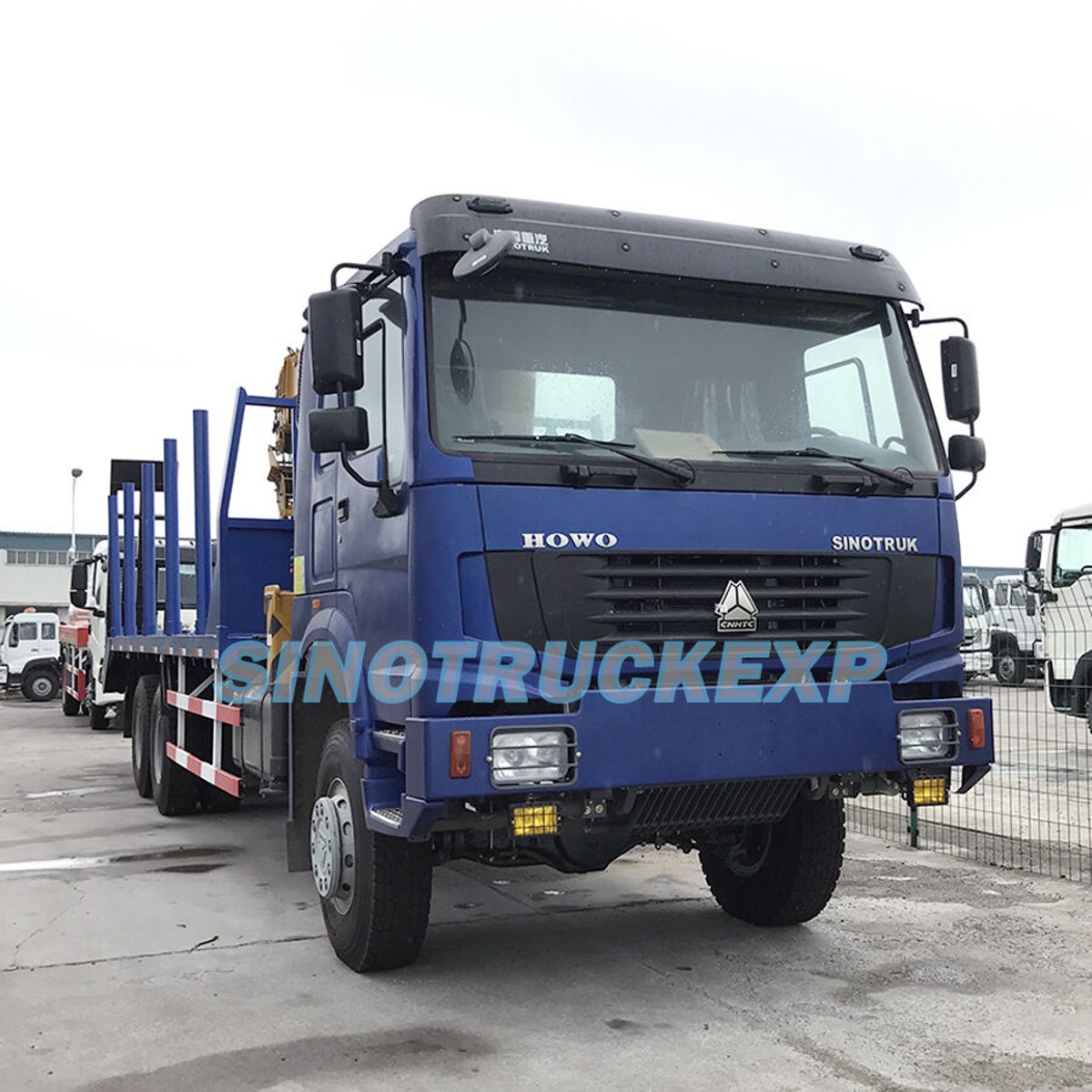

SINOTRUK HOWO 6X6 12 WHEELER LOGGING TRUCK MOUNTED XCMG CRANE
| Product Name | Howo 6x6 logging truck mounted crane | |||
| Loading capacity(ton) | 20-30 | |||
| Flatbed tuck body(mm) | 8000x2600 Bottom:10mmwith front board & backboard | |||
| Stand Column | With 10 pcs 1.5m stand Column ( can be detachable) | |||

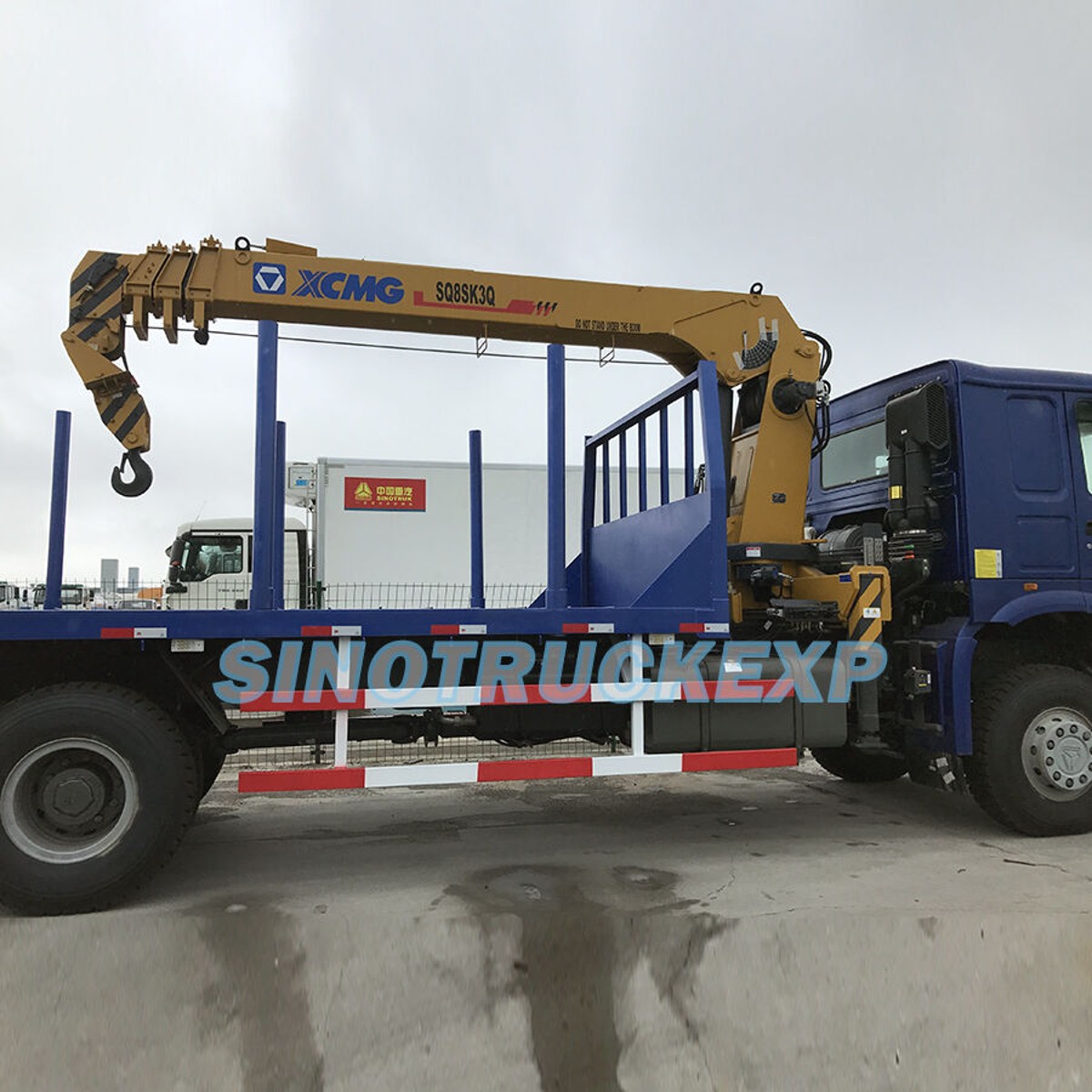

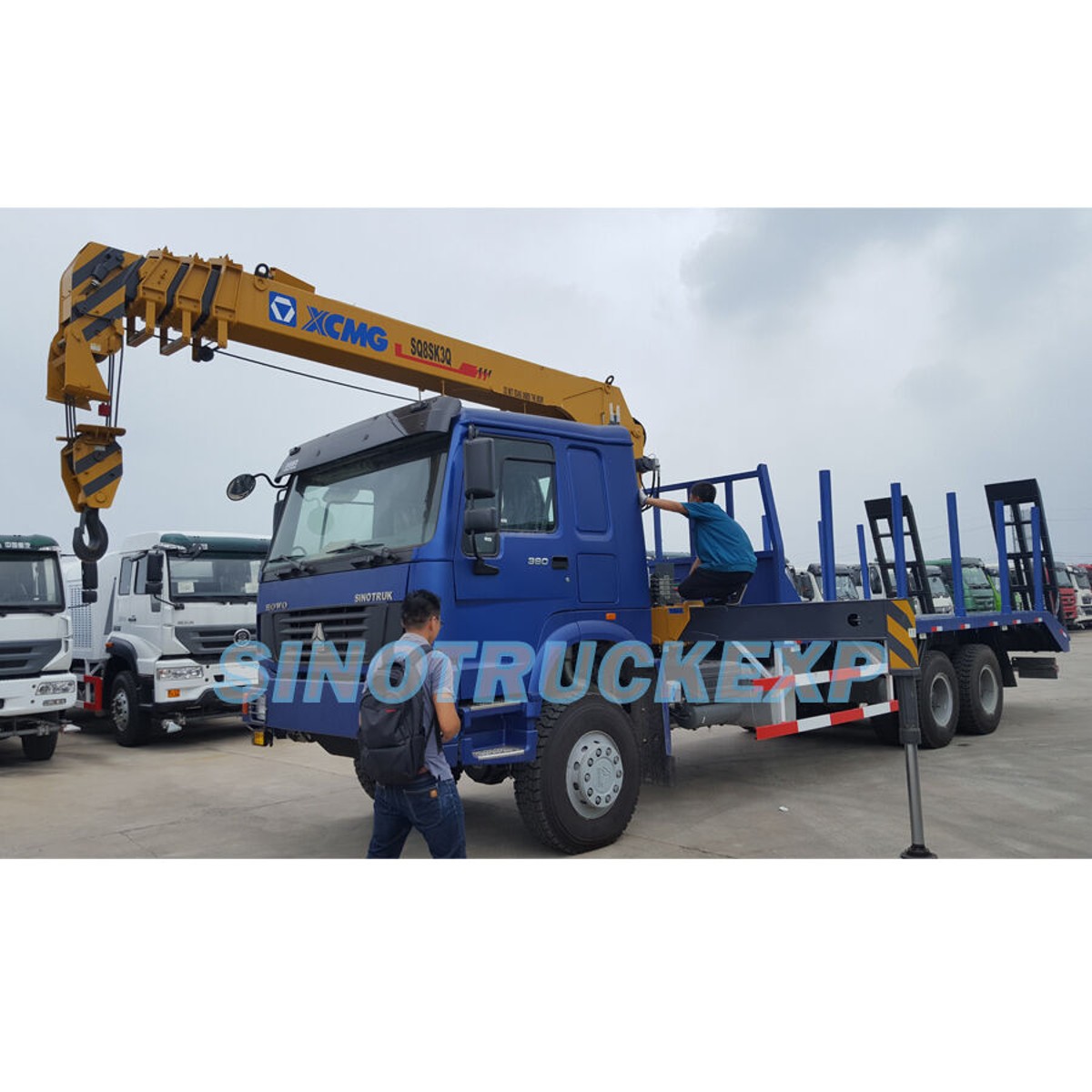

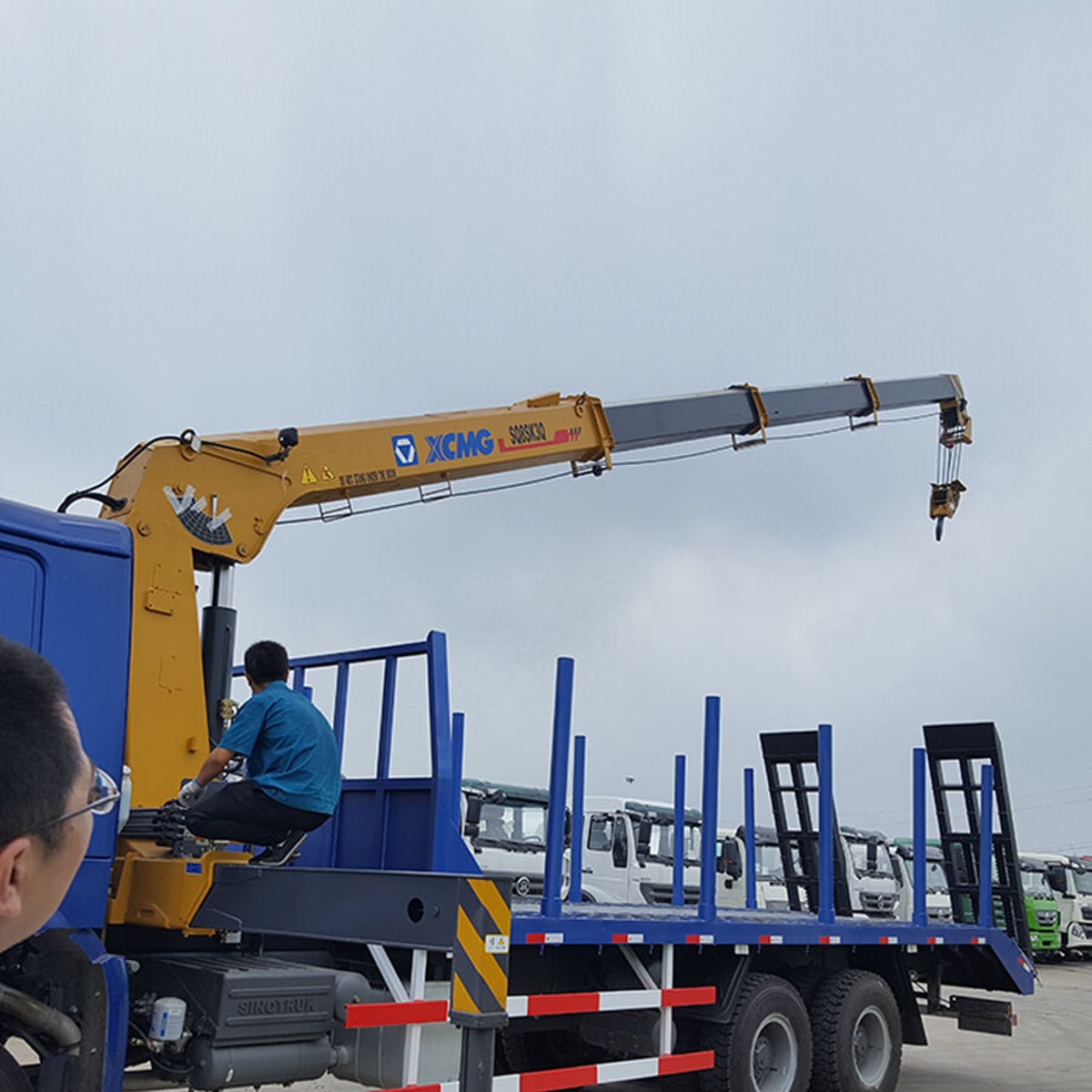

| Crane | XCMG 8ton Telescopic boom crane | |||

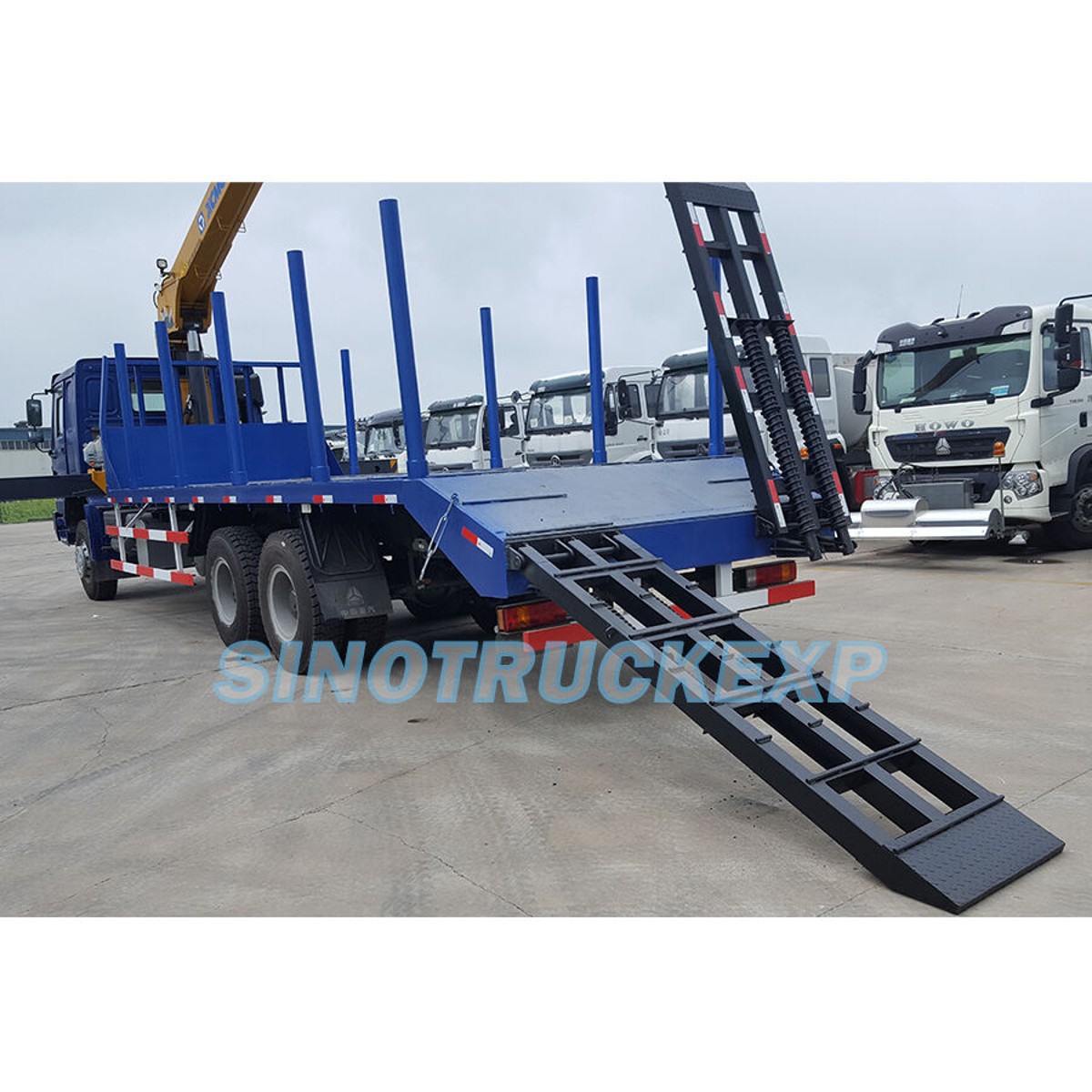

| Ladder | Mechanical ladder Can withstand 20 tons of excavators and bulldozers on and off | |||
| Engine | 336/371/420HP 340/380/420hp Euro 2/3/4 Diesel | |||
| Gearbox | HW19710/HW19712 manual | |||
| Cabin | HW76 One sleeper with air conditioner | |||
| Truck withloading crane | ITEM | UNITS | XCMG Crane model | |
| SQ8SK3Q | ||||
| Max lifting capacity | KG | 8000 | ||
| Max lifting capacity | T.M | 20 | ||
| Recommend power | KW | 27 | ||
| Max oil flow | L/MIN | 55 | ||
| Max pressure | MPA | 27 | ||
| Oil Tank Capacity | L | 160 | ||
| Crane weight | KG | 3300 | ||
| Installation space | MM | 1200 | ||
| Rotation angle | DEGREE | 360 All Rotation | ||
| Max extension length | MM | 11500 | ||
| Max lifting height | MM | 12500 | ||
| Max elevation | DEGREE | 75 | ||
