- Product Description -

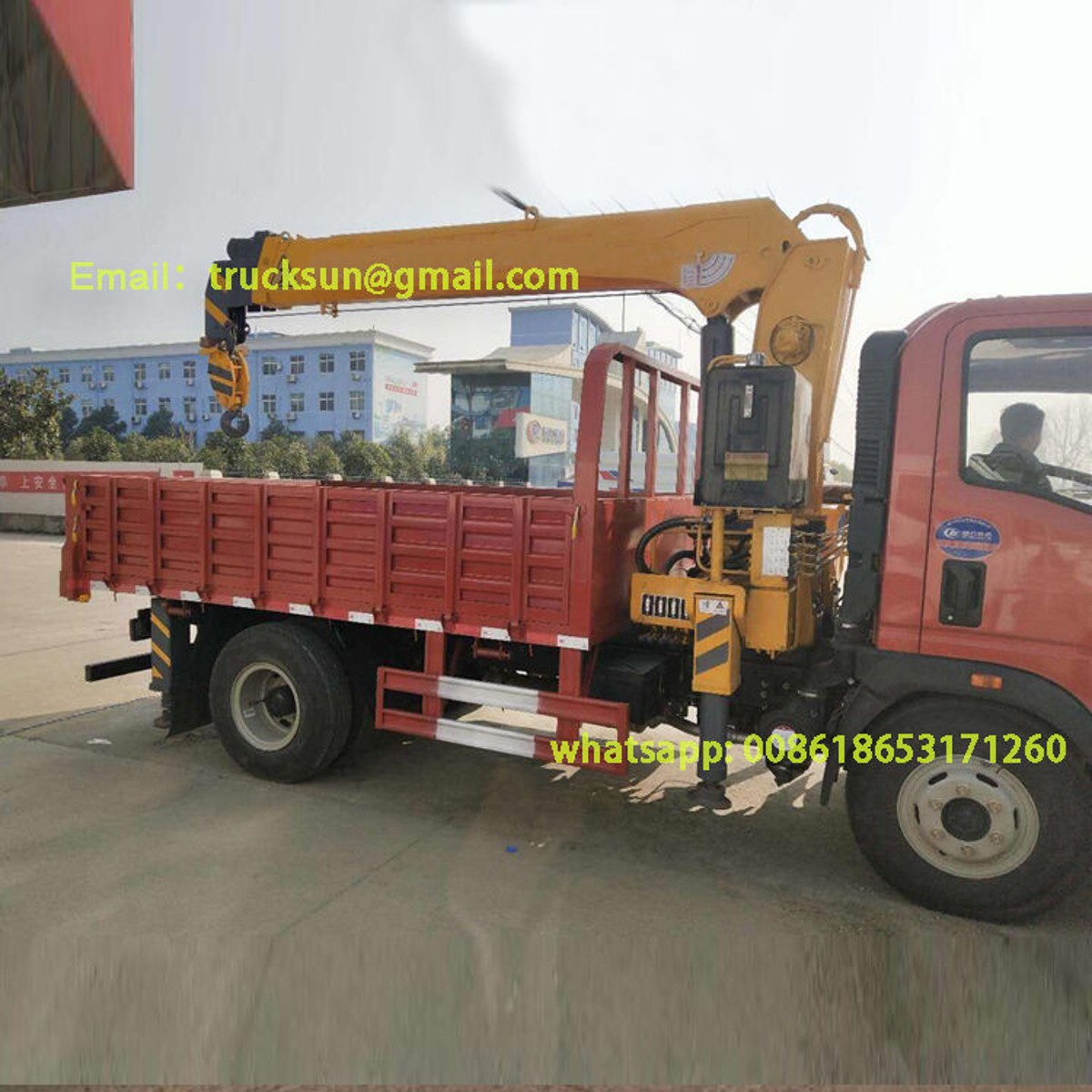

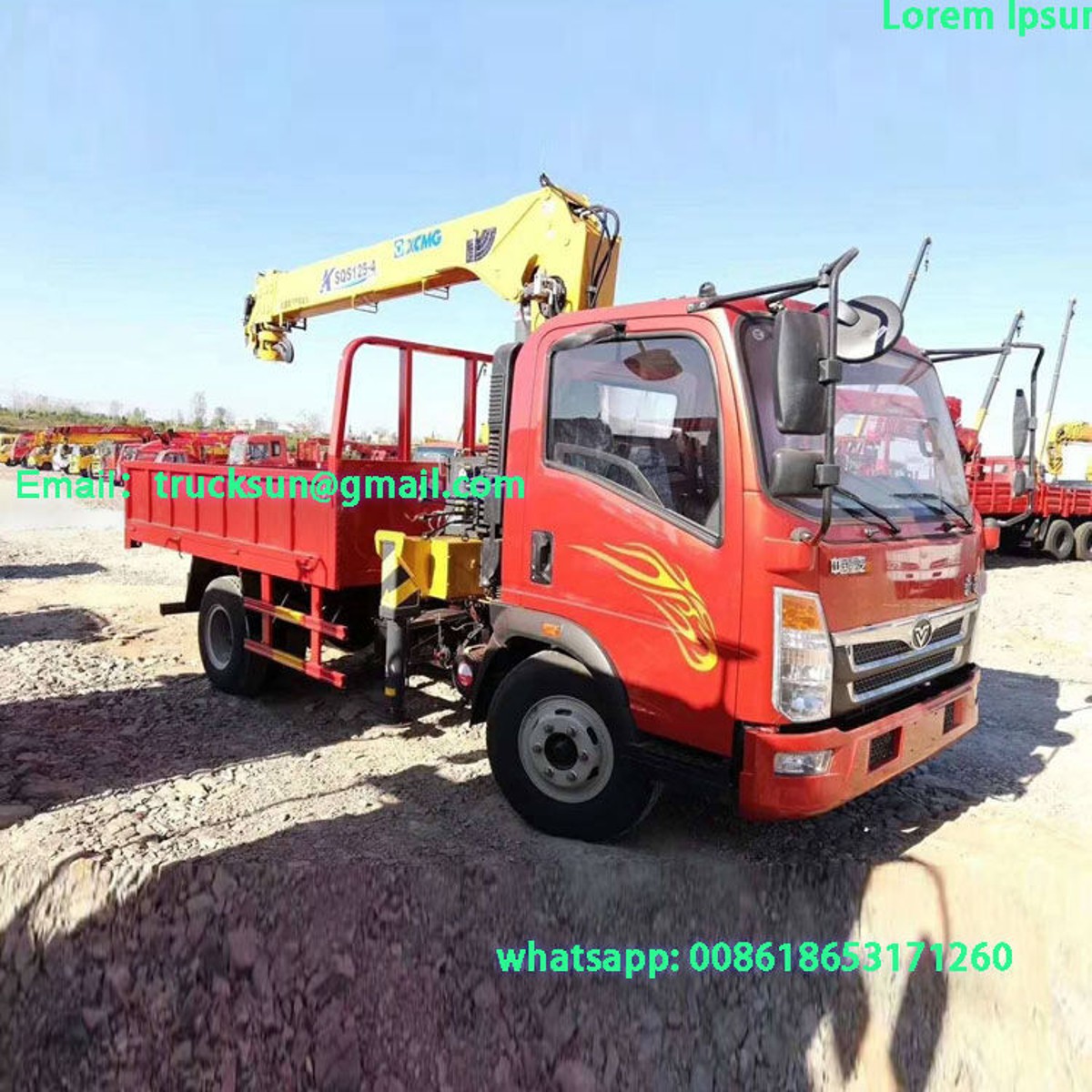

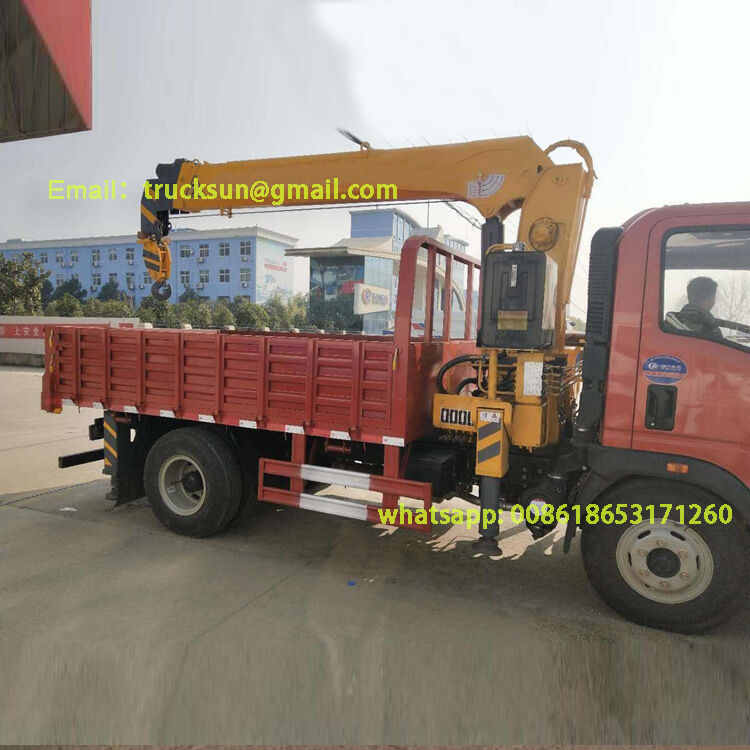

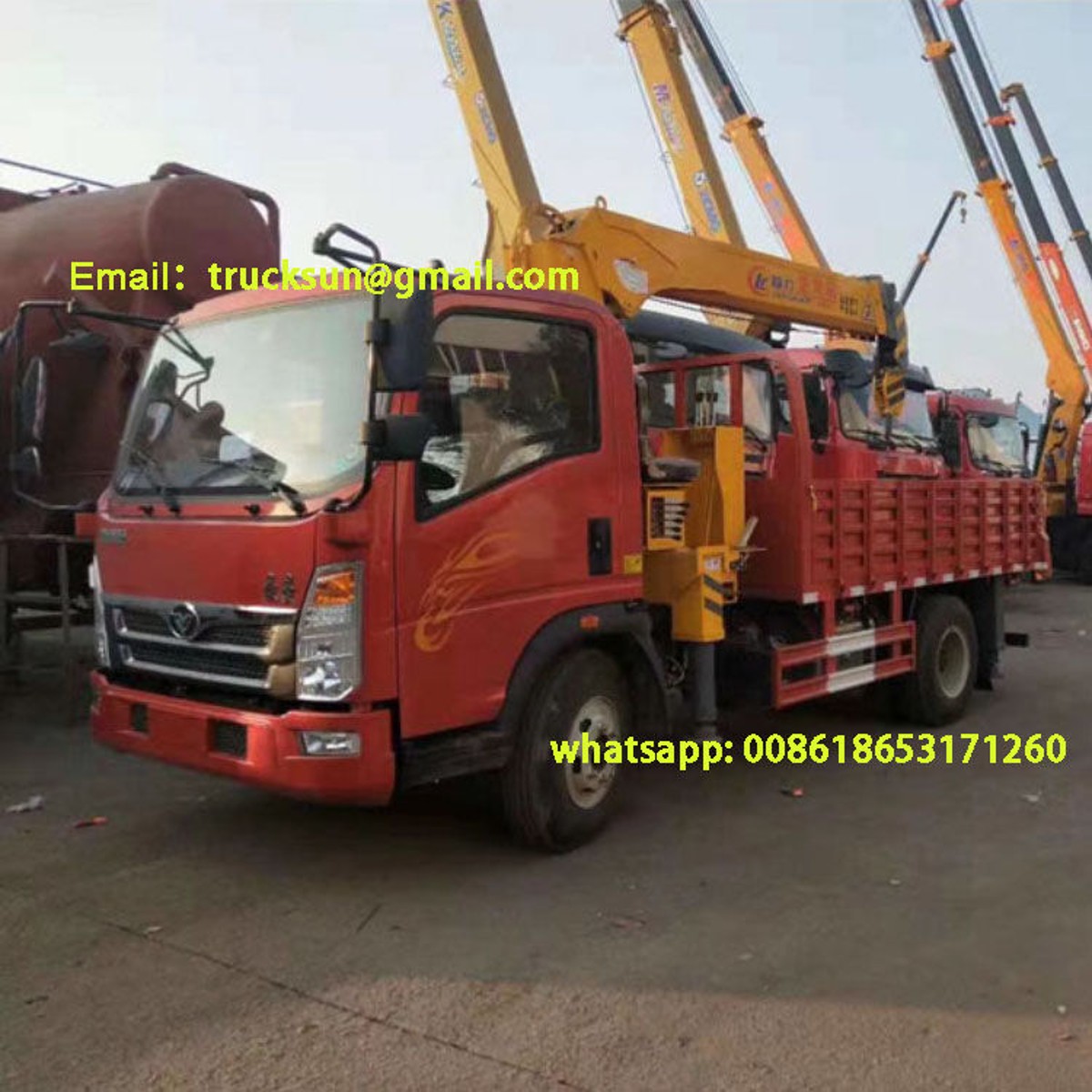

SINOTRUK HOWO 4X2 6 wheeler 160HP 4T BOOM TRUCK WITH XCMG SQ4SK2Q TRUCK MOUNTED CRANE MODEL ZZ1127G5215C1
| Model | ZZ1127G5215C1 | |
| Cabin | 2080 King Cab, with two seats and one bed, with Air Conditioner. | |
| Engine | Model | YC4E160-33 |
| Horse Power (Hp/rpm) | 160/2600, Euro III Emission Standard | |
| Max.Torque (Nm/rpm) | 600/1200-1600 | |
| Displacement L | 4.257 | |
| Type | 4-cylinder in-line with water cooling, 4-stroke direct injection diesel engine | |
| Transmission | DC6J65TC, 6 speeds forward and 1 speeds reverse. | |
| Front Axle | Steering with double T-cross section beam, Loading Capacity: 3.2T | |
| Driving Axle | Pressed axle housing, central reduction, loading capacity: 8T | |
| Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer | |
| Steering System | Hydraulic steering with power assistance | |
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake | |
| Tire | 9.00R20 | |
| Fuel Tank Capacity (L) | 120L Diesel Tank | |
| Kurb Weight (kg) | 10,500 | |
| Loading Capacity (kg) | 12,500 | |
| Gross Vehicle Weight (kg) | 23,000 | |
| Overall Dimension(L*W*H)(mm) | 8100×2200×3500 | |
| Body Dimension(L*W*H)(mm) | 6000×2100×600 | |
| Model | SQ4SK2Q | |
| Max Lifting Moment | 8.4 tm | |
| Max Lifting Capacity | 4000 kg | |
| Recommend Power Needed At Recommend Oil Flow | 16 kw | |
| Max Oil Flow of Hydraulic System | 25 L/min | |
| Rated Pressure Of Hydraulic System | 20 Mpa | |
| Oil Tank Capacity | 60 L | |
| Rotation Angle | (360°)All Rotation | |
| Crane Weight | 1271 Kgs | |
| Installation Space | 850 mm | |
| Wheelbase(mm) | 5200 | |
| Max. Speed (km/h) | 90 | |
| ITEM | UNITS | SQ4SK2Q |
| Max lifting capacity | KG | 4000 |
| Max lifting capacity | T.M | 8.4 |
| Recommend power | KW | 16 |
| Max oil flow | L/MIN | 25 |
| Max pressure | MPA | 20 |
| Oil Tank Capacity | L | 60 |
| Crane weight | KG | 1271 |
| Installation space | MM | 850 |
| Rotation angle | DEGREE | 360 All Rotation |
| Max extension length | MM | 7930 |
| Max lifting height | MM | 9000 |
| Max elevation | DEGREE | 75 |
