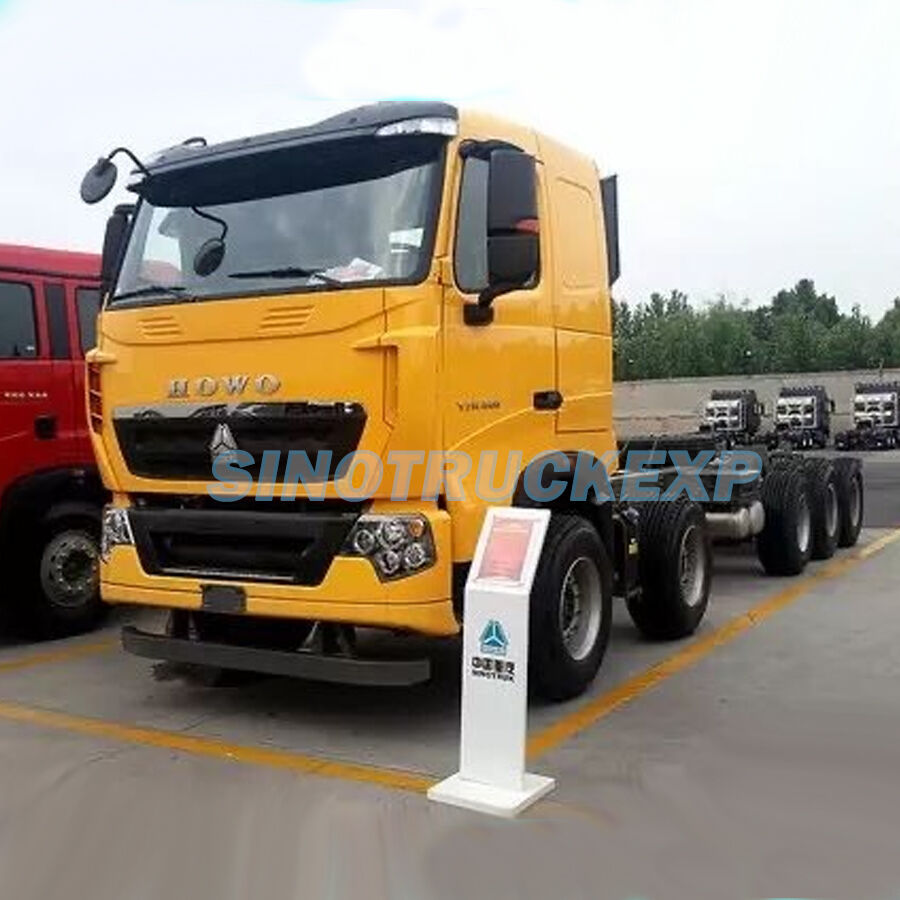

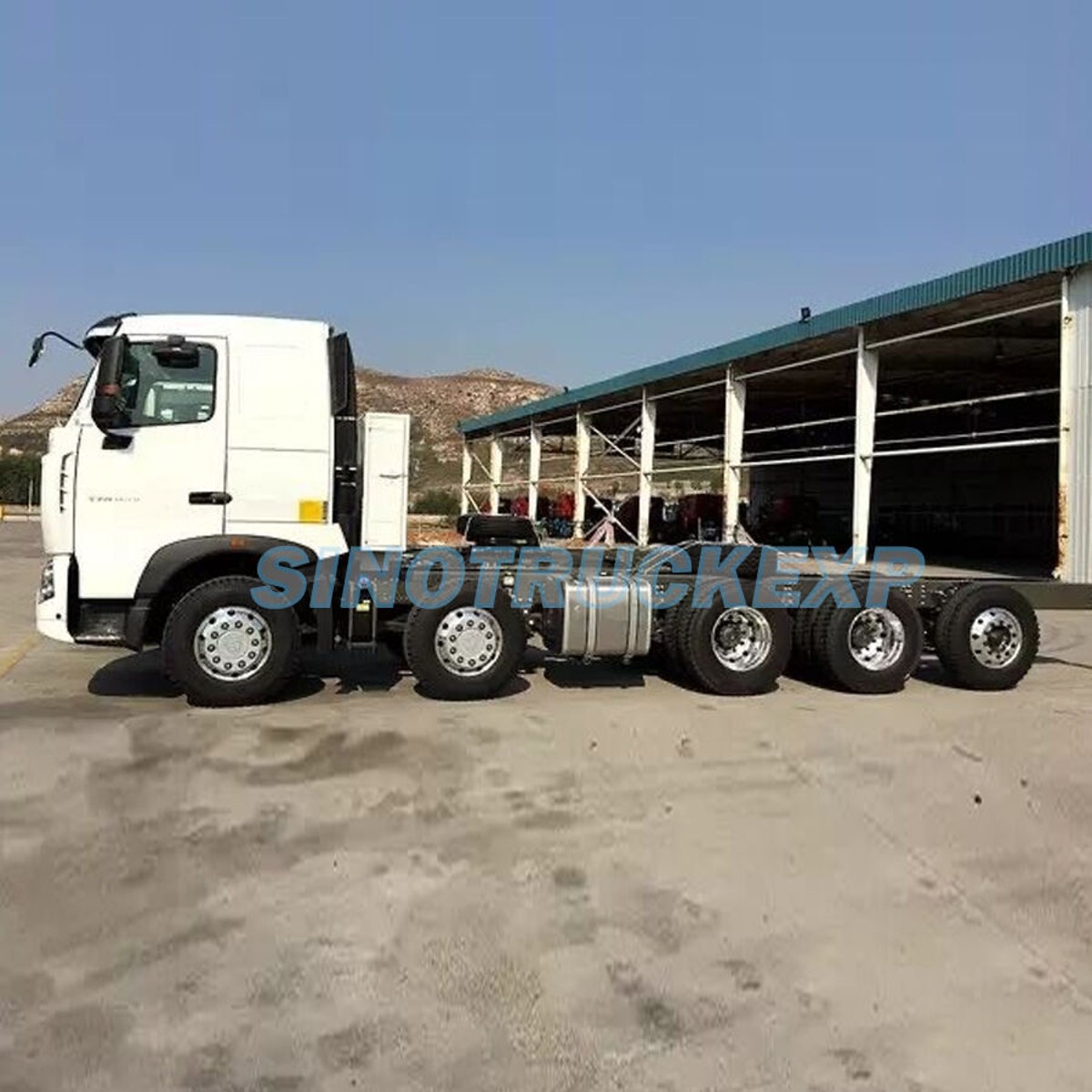

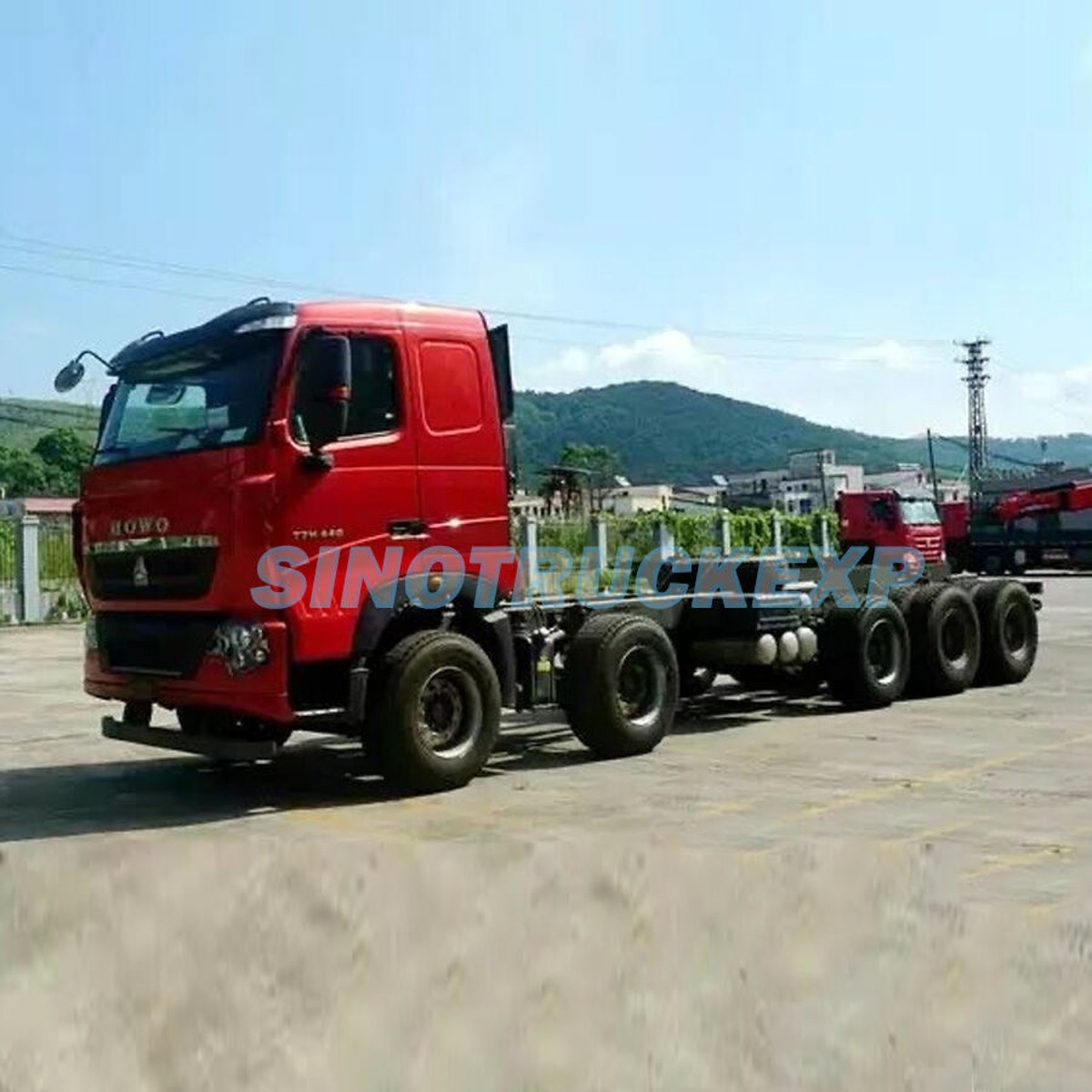

HOWO A7 10X6 CHASSIS
ZZ3317N4667N1 ，10x6 420hp howo a7 model Sinotruk 16 wheeler ，SINOTRUK HOWO-A7 10x6 CHASSIS SPECIFICATIONS
- Product Description -
| ZZ3317N4667N110x6 420hp howo a7 model Sinotruk 16 wheelerSINOTRUK HOWO-A7 10x6 CHASSIS SPECIFICATIONS | ||||
| Body | Carriage Internal Dimensions(mm) | |||
| Cubage (m3) | 32 | |||
| Steel thickness of Carriage(mm) | Floor:8mm/Side:6mm | |||
| Steel | Q235 | |||
| Hydraulic Lift of Carriage | Front Lift | |||
| Weight in kg | Kerb weight (Kg) | 15880 | ||
| Gross vehicle weight (Kg) | 45000 | |||
| Dimension(mm) | Dimensions(mm) | Length(mm) | 11345 | |
| Width(mm) | 2550 | |||
| Height(mm) | 3550 | |||
| Wheel base (mm) | 1800+4600+1350 | |||
| Performance | Maximum driving speed (km/h) | 75 | ||
| Fuel consumption (1/100 km) | 38 | |||
| Cab | Model | SINOTRUK A7-G High-floor High-roof CabDouble bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,right driving,air conditioner | ||
| Engine | Model | WD615.47(Euro 2);D12.42 | ||
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | |||
| Horsepower | 371 | |||
| Maximum output Kw/r/min | 273/2200 | |||
| Maximum torque N.m/r/min | 1460/1300-1600 | |||
| Bore x Stroke | 126x130mm | |||
| Valve | 2 | |||
| Displacement | 9.726L | |||
| Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 71℃ opening begin, Rigid fan | ||||
| Transmission | SINOTRUK HW19710 transmission ,10 forward and 2 reverse | |||
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | |||
| Steering | ZF8098 Steering Gear Box ,hydraulic steering with power assistance.(Right hand driving) | |||
| Front Axle | SINOTRUK HF9*2 Front Axle,new 9*2-ton front axles of equipped with drum brakes. | |||
| Rear Axles | SINOTRUK HC16*2 Heavy reduction drive axle and one axle liftable function,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.8;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. | |||
| Brake System | Service brake:dual circuit compressed air brakeParking brake (emergency brake):spring energy,compressed air operating on rear wheelsWater leaking system. | |||
| Wheels & Tyres | Rims:10 hole-steel ;Tyres:12.00R20*17 radial tyre with 1 Spare tire. | |||
| Electrics | Operating voltage:24V,negative groundedStarter:24V,7.5 KwAlternator:3-phase,28V,1500 WBatteries:2x12 V,165 Ahhorn,headlamps,fog lights,brake lights,indicators and reverse light | |||
| Oil Tank | Square type-300L Aluminum alloy fuel tank | |||
