- Product Description -

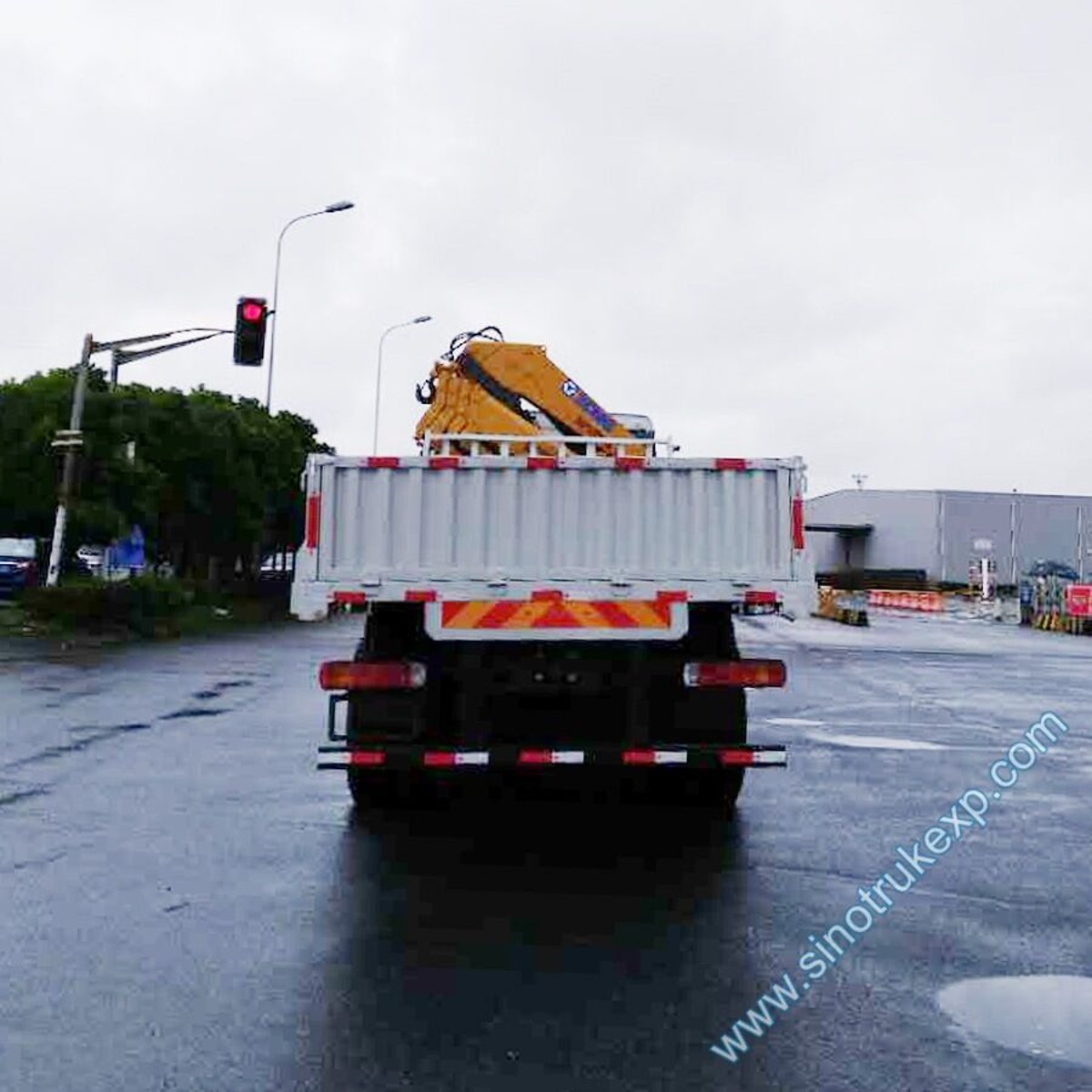

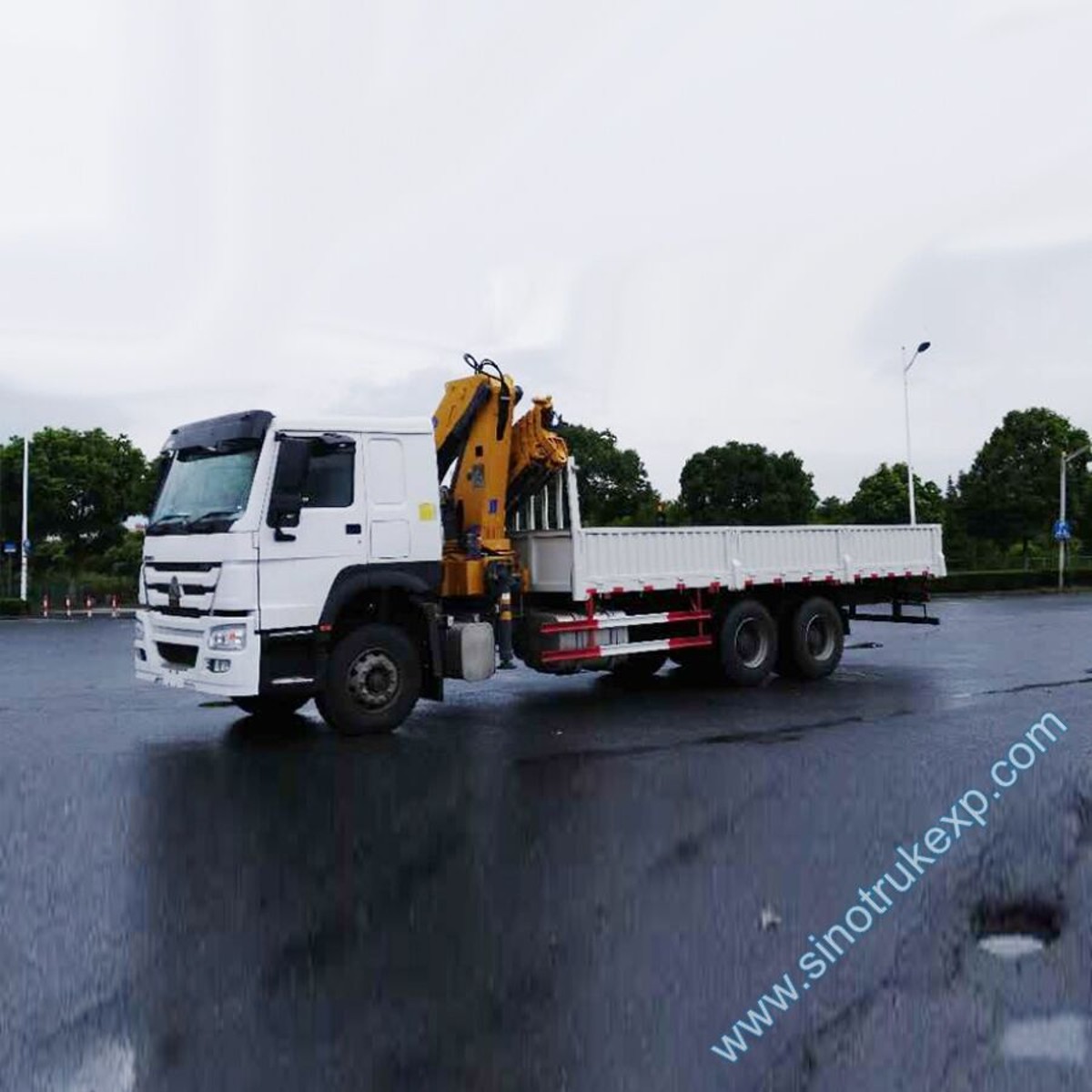

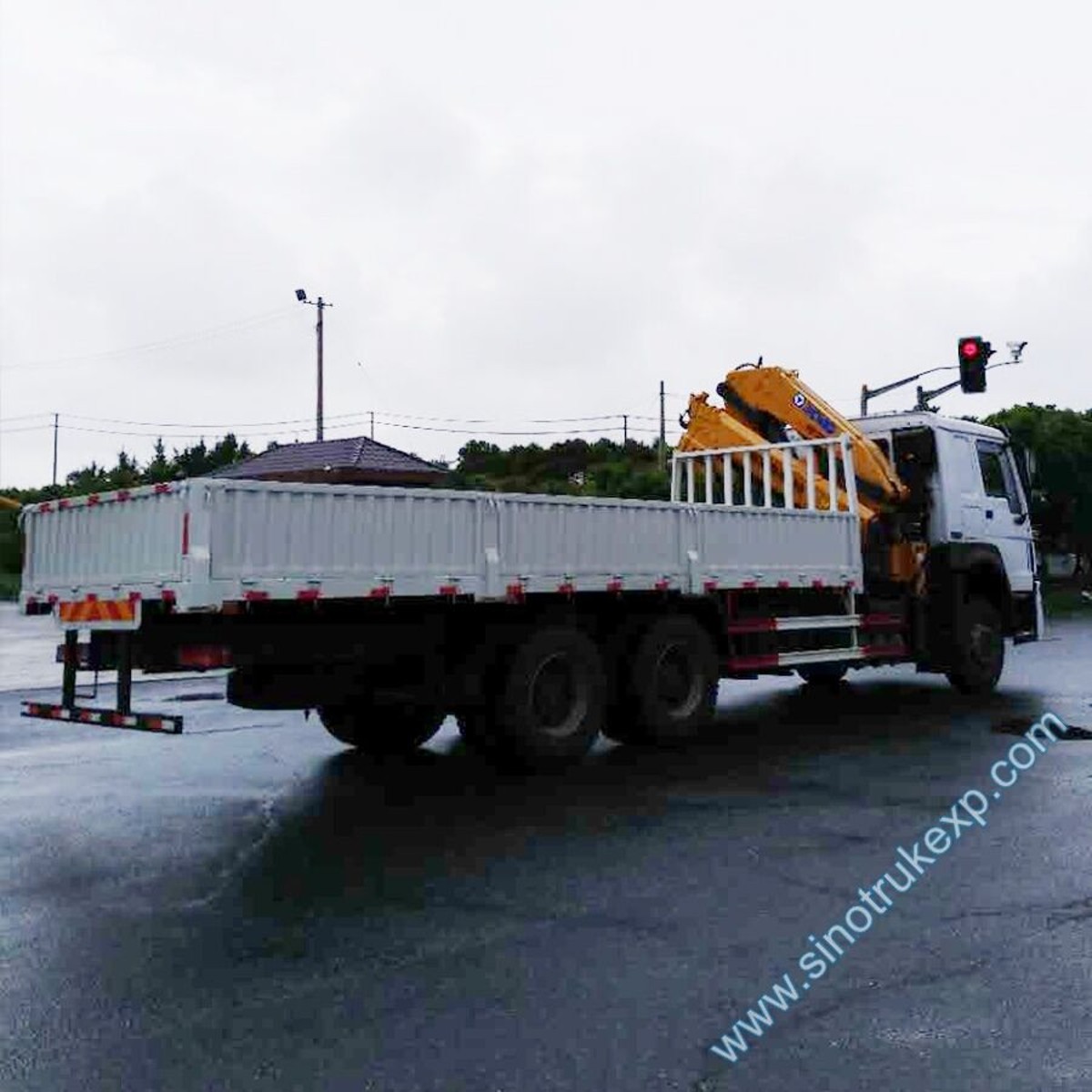

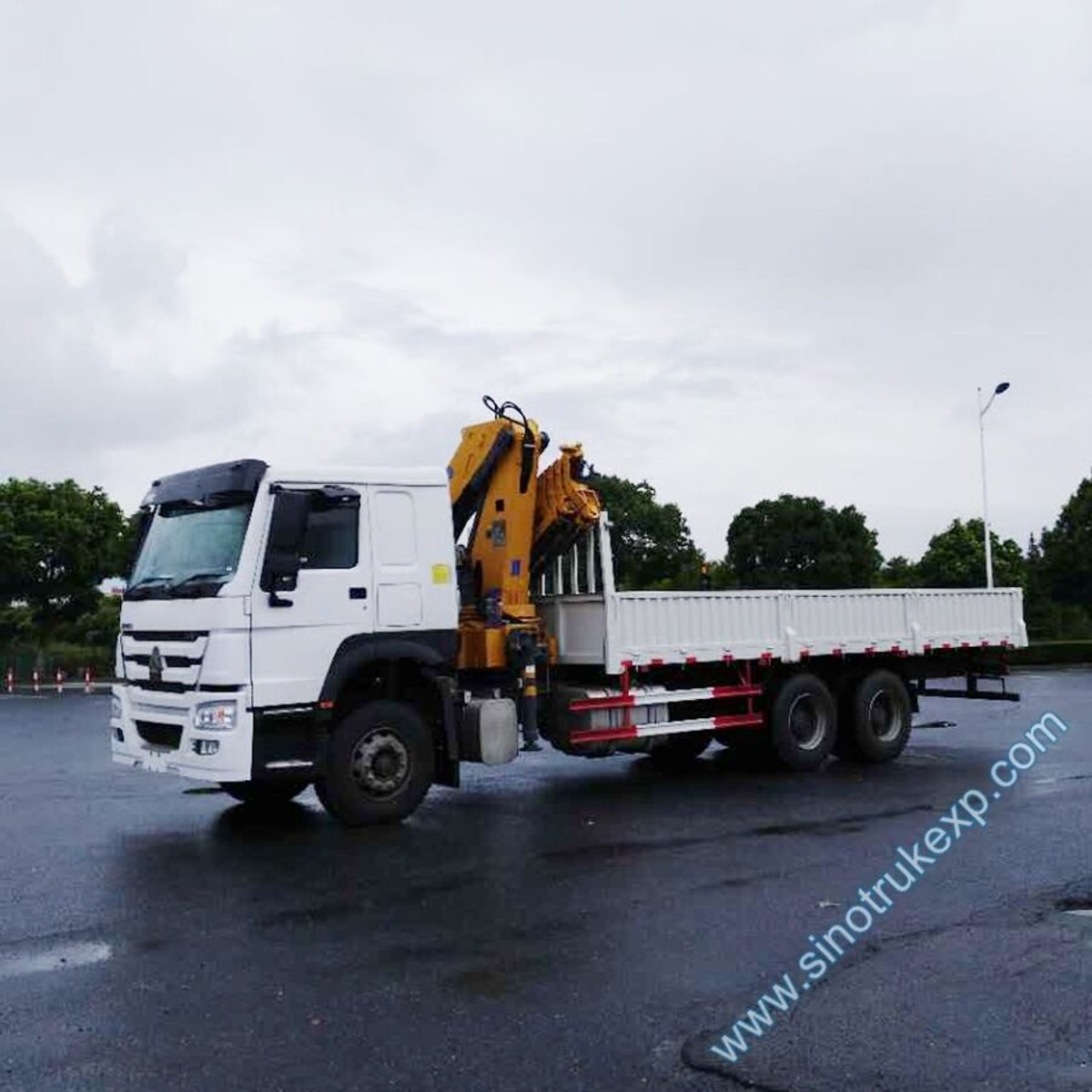

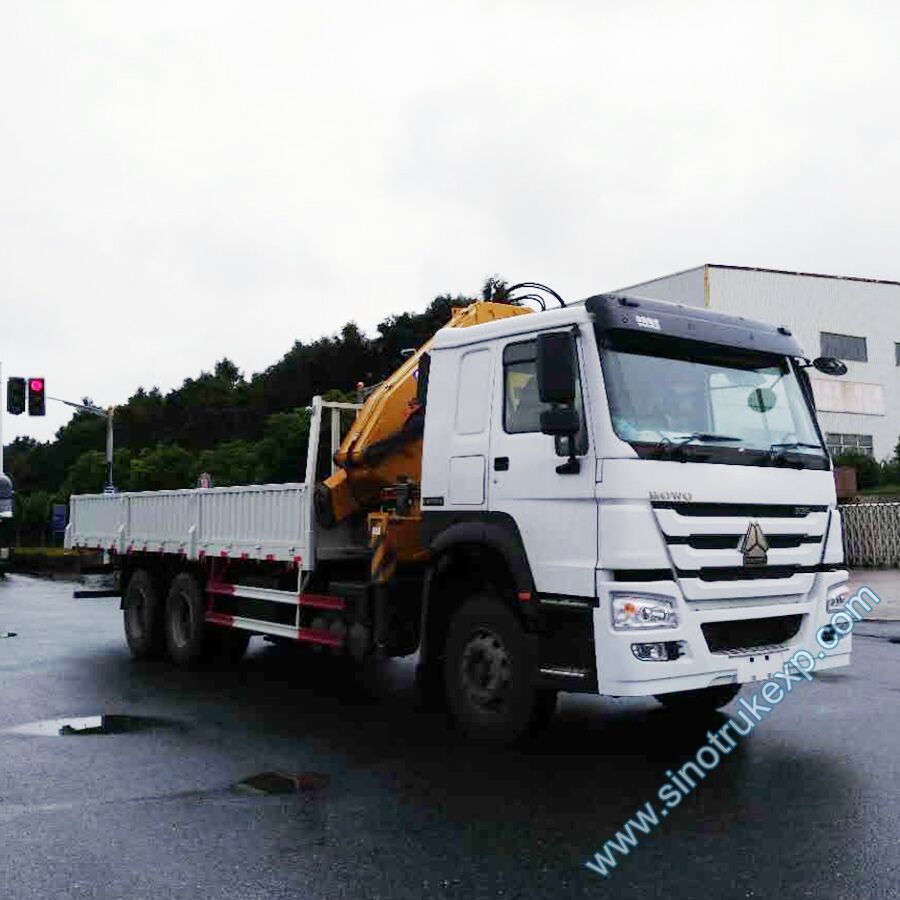

SINOTRUK HOWO 10 WHEELER 6X4 TRUCK MOUNTED XCMG CRANE, CRANE TRUCK.
| Cabin | Driving type 6x4 LHD/RHD ZZ1257N5247A | |
| HOWO 76 cab, with air condition and one bed, 70°hydraulically tillable to the front | ||
| Vehicle Main Dimensions | Overall dimensions (LxWxH)mm | 11000×2500×3900 |
| Carriage Size (LxWxH)mm | 7000×2300×600 | |
| Wheel base (mm) | 5225+1350 | |
| Wheel track (front/rear) (mm) | 2022/1830 | |
| Weight in KGS | Tare Weight | 16100 |
| payload | 25000 | |
| Front axles loading capacity | 1x9000 | |
| Rear axles loading capacity | 2x16000 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Brand | Sinotruck |
| Model | WD615.47 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 371/380 | |
| Emission standard | Euro Ⅱ/Euro IV | |
| Gearbox | HW19710 10 Forwards gear & 2 reverse gear | |
| Clutch | Reinforced diaphragm clutch, diameter 430 mm | |
| Steering Gear | ZF 8118,power steering, hydraulic steering with power assistance | |
| Tire | 12R22.5 tubeless tyre 11 pcs including one spare tire | |
| Crane specifications | Brand : XCMG | |
| Type: Telescopic | ||
| Max lift capacity: 14000 kg | ||
| Max working radius 15.8 m, Max lifting height : 17.8 m | ||
| Model | XCMG SQ14ZK4Q | Unit | ||||||
| Max Lifting Moment | 35 | t.m | ||||||
| Max Lifting Capacity | 14000 | kg | ||||||
| Recommend Power Needed At Recommend Oil Flow | 32 | kw | ||||||
| Max Oil Flow of Hydraulic System | 63 | L/min | ||||||
| Rated Pressure Of Hydraulic System | 26 | MPa | ||||||
| Oil Tank Capacity | 220 | L | ||||||
| Rotation Angle | (360°)All Rotation | . | ||||||
| Crane Weight | 4800 | kg | ||||||
| Installation Space | 1300 | mm | ||||||
| Choice of Chassis | ZZ1257N5247A, ZZ1257N5247D1, Z1257N5247P1 | |||||||
| SQ14ZK4Q Lifting capability diagram | ||||||||
| Working radius(m) | 2.5 | 4.046 | 5.826 | 7.646 | 9.516 | 11.4 | ||
| Lifting capacity(kg) | 140000 | 8400 | 5478 | 4080 | 3148 | 245 | ||
