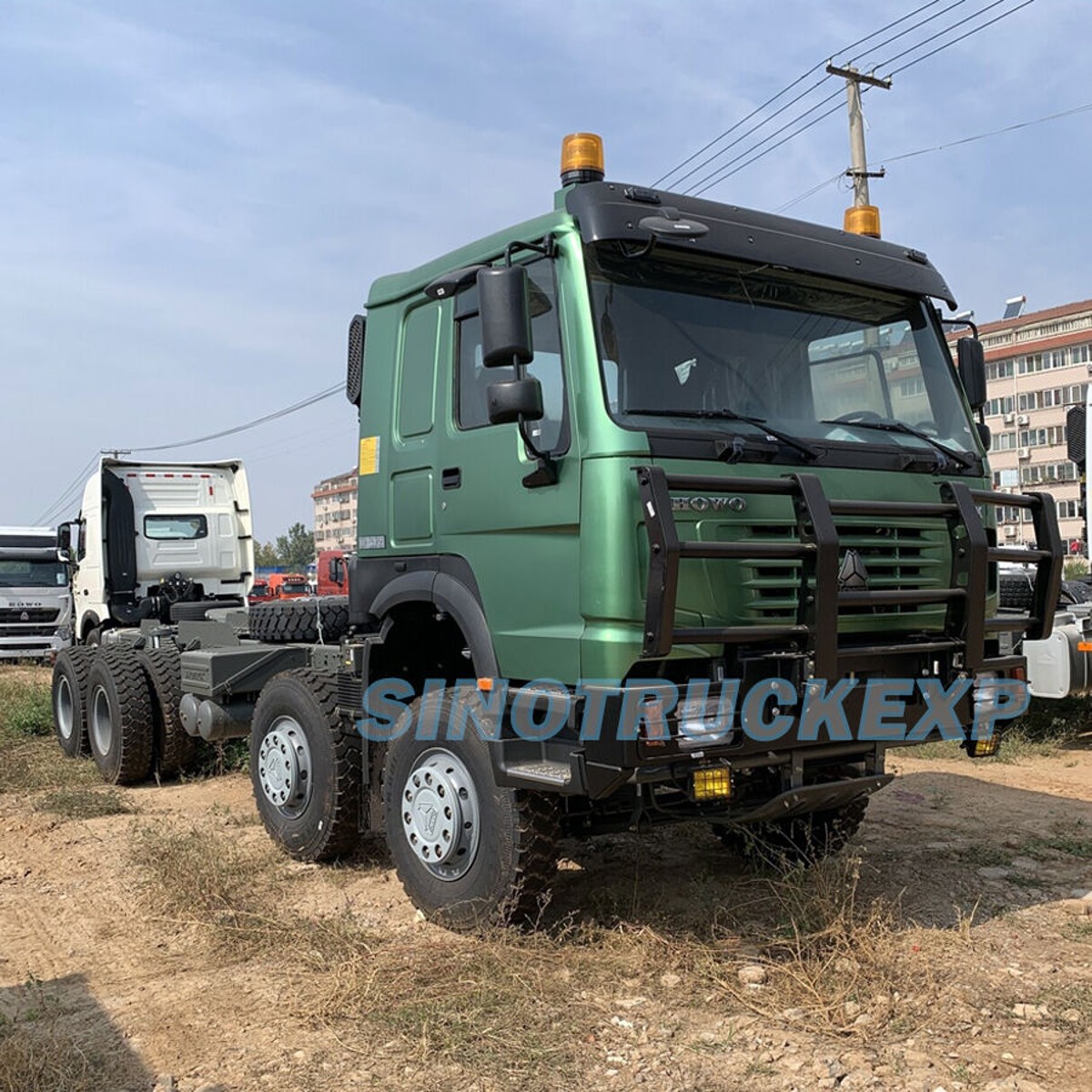

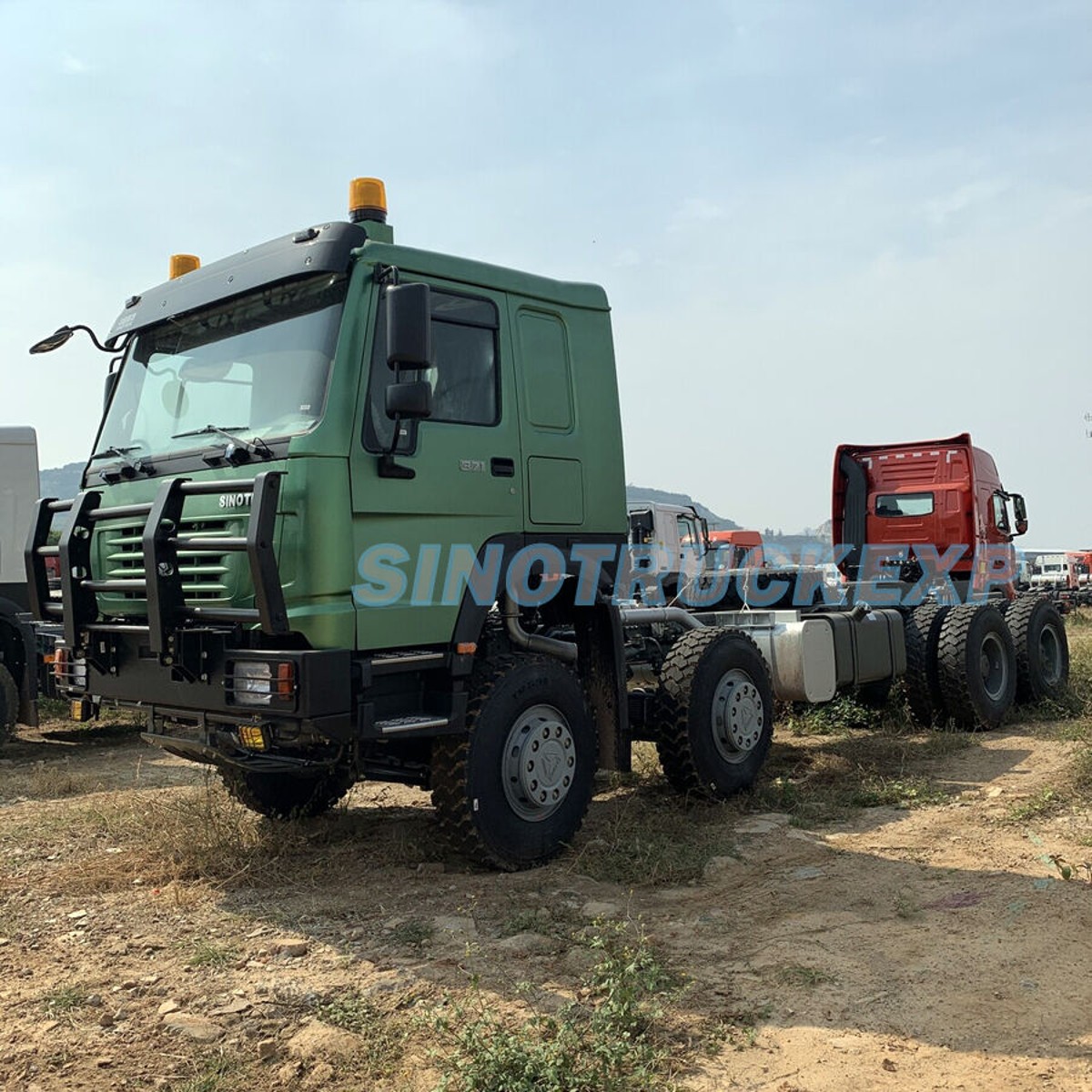

HOWO 8x4 dump truck chassis
It is a mature model of SINOTRUK driven by a powerful engine, with low oil consumption and high stability, with customization options available.
Contact us
Email

- Product Description -

HOWO 8x4 dump truck chassis

It is a mature model of SINOTRUK driven by a powerful engine, with low oil consumption and high stability, with customization options available. The driving cab is elegantly designed to provide a safe and comfortable driving environment, making it a preferable choice for long-range highway standard load transportations and medium-short transportation tasks.


Model8x4 cargo truck chassisZZ3317N3267W/ZZ3317N3267VZZ3317N3567W/ZZ3317N3567VZZ3317N3867W/ZZ3317N3867VZZ3317N4267W/ZZ3317N4267VZZ3317N4667W/ZZ3317N4667VZZ3317N3267D1ZZ3317N3567D1ZZ3317N3867D1ZZ3317N4267D1ZZ3317N4667D1
CabinFour point s suspension Howo Cabin with spring and air shock absorber, A/C, VDO panel

Adjustable steering, sun cover
EngineType: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
Model:WD615.47/D10.38STEYR technology (CNHTC)

MAX Horse power:266HP/196KW290HP/213KW336HP/247KW371HP/273KW420HP/309KW340HP/D10.34-40380HP/D10.38-40420HP/D12.42-40

Displacement(L):9.726liter (Euro 2 standard)

Max torque:1500NM@1200-1600rpm

Bore/stoke:126mm/130mm

Fuel consumption:197g /kwh
Gear boxCNHTCMax torque:1500NM

Model:HW15710/HW19710+HW50

Speed:10speed,2 reverse
Ratio123456789reverse

14.210.627.875.884.383.272.431.81.3413.91
Axle(front/rear)
Front axleHF9ton STEYR technology front steering axle
TandemHC/AC 16ton STEYR technology double reduction hub redactor driving axle Ratio: 4.42
ClutchD430 diaphragm type clutch
BrakeService brake: Dual lines air brake

Parking brake: Spring-Power drum brake

Engine brake: Engine exhaust brake(EVB)
SteeringZF8098, driver sit at the left hand side

Framestrengthen steel frame, designed according to tough road condition.
Tyre10+1 spare tyre with rim

12.00-20; 12.00R20; 12.00R24, 315/80R22.5, 12R22.5, 11R22.5, 11R20
Suspension system: strengthen heavy duty Leaf spring type

Front/Rear10/12
Cargo body:
Inside size of Body(mm): 6300×2326×1500mm, floor 8mm, side 6mm                      6500x2300x1500mm, floor 8mm, side 6mm                      6800x2300x1500mm, floor 8mm, side 6mm                      7300x2300x1500mm, floor 8mm, side 6mm                      7800x2300x1500mm, floor 8mm, side 6mm                      8200x2300x1500mm, floor 8mm, side 6mm                      8500x2300x1700mm, floor 8mm, side 6mm                      8700x2300x1700mm, floor 8mm, side 6mm                      9400x2300x1500mm, floor 8mm, side 6mm
Can be refitted into refrigerator truck, van truck, logging truck, vacuum truck, water truck, oil tank truck, and so on
