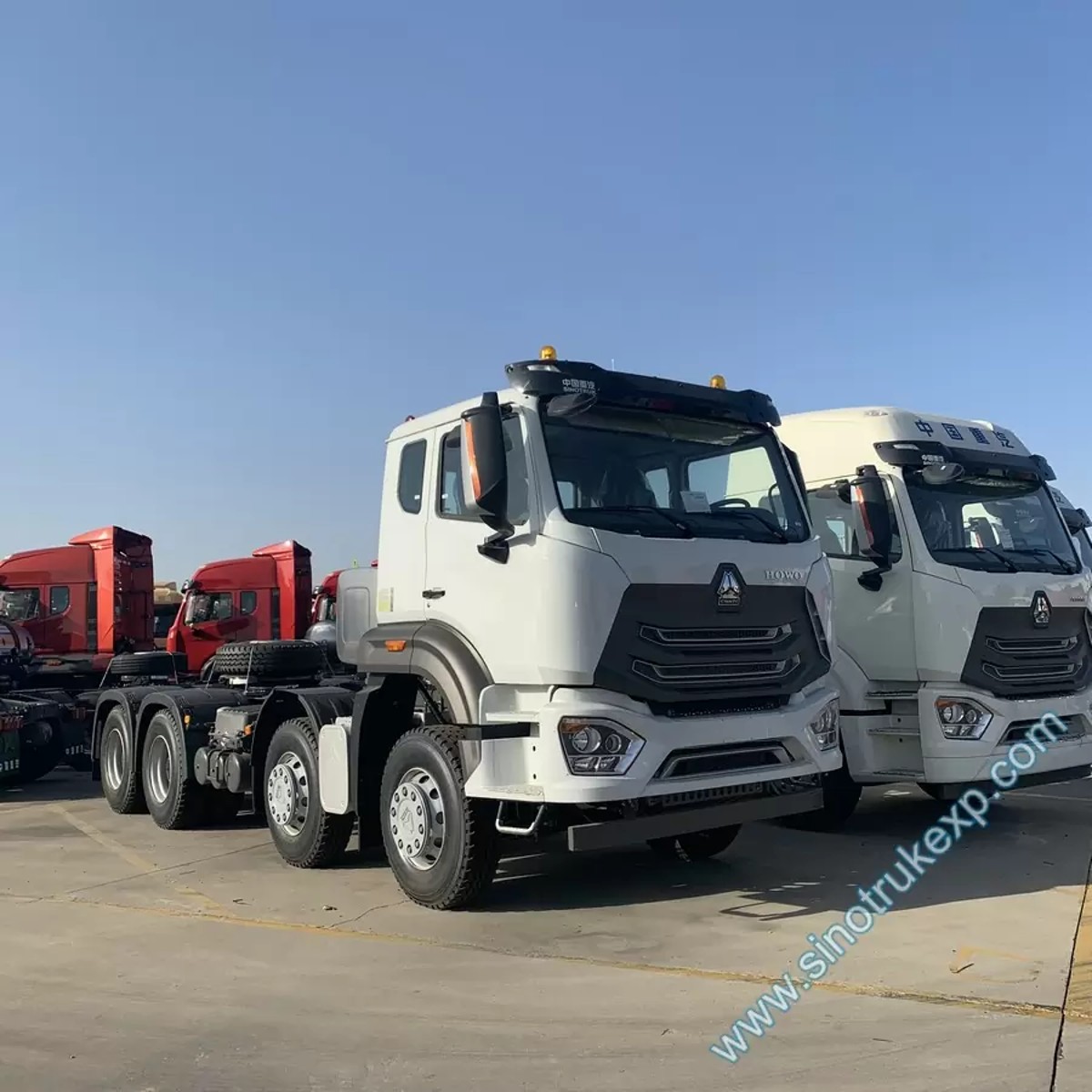

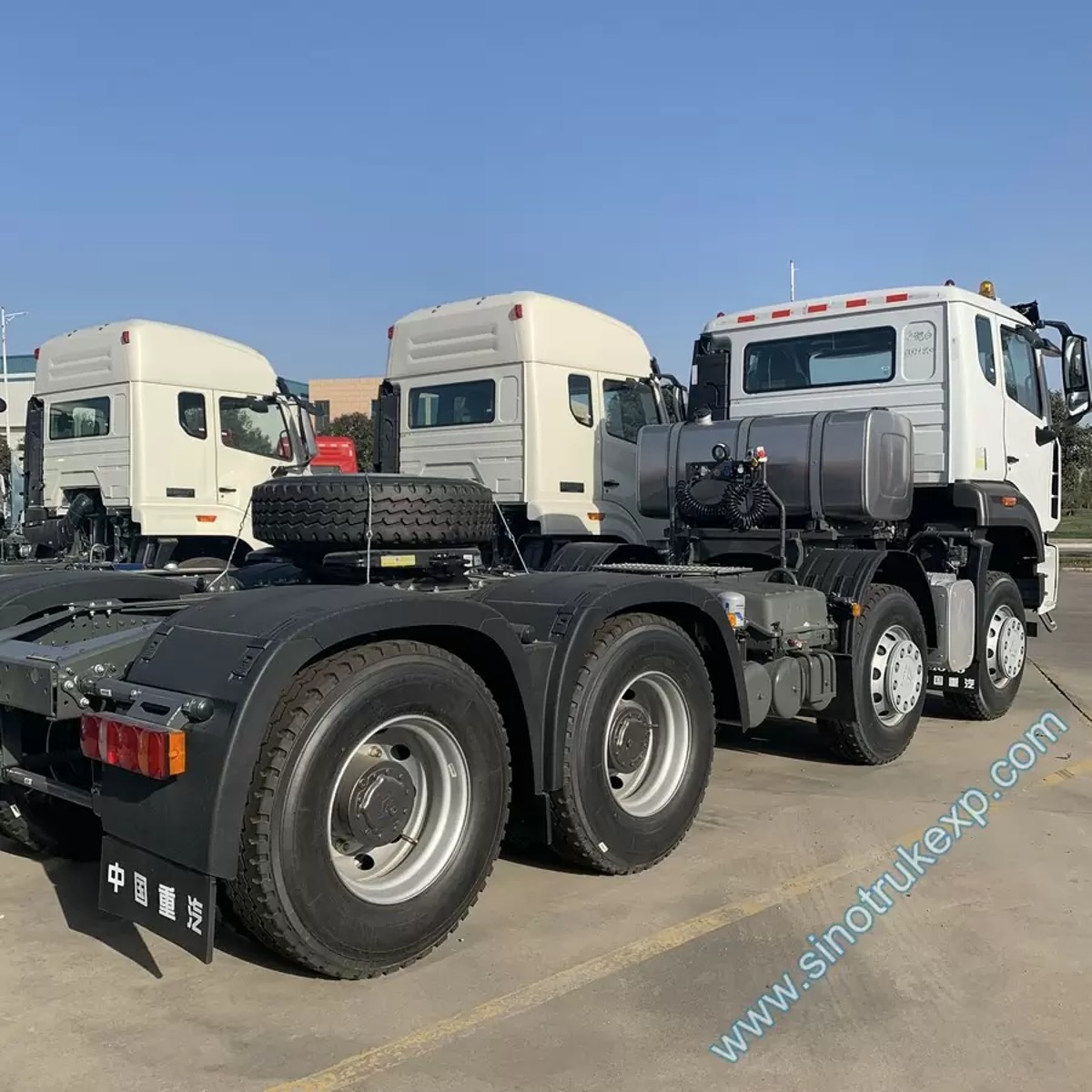

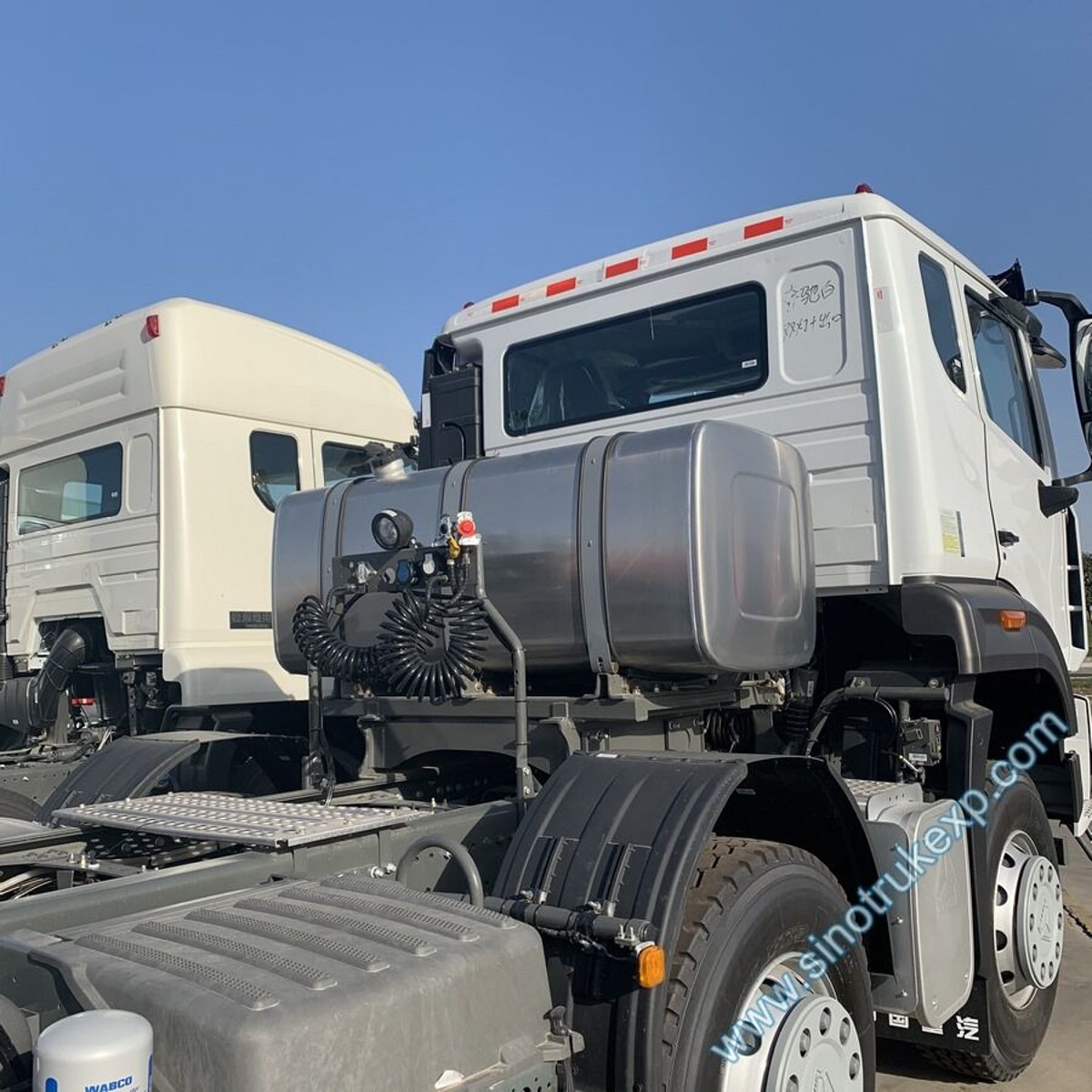

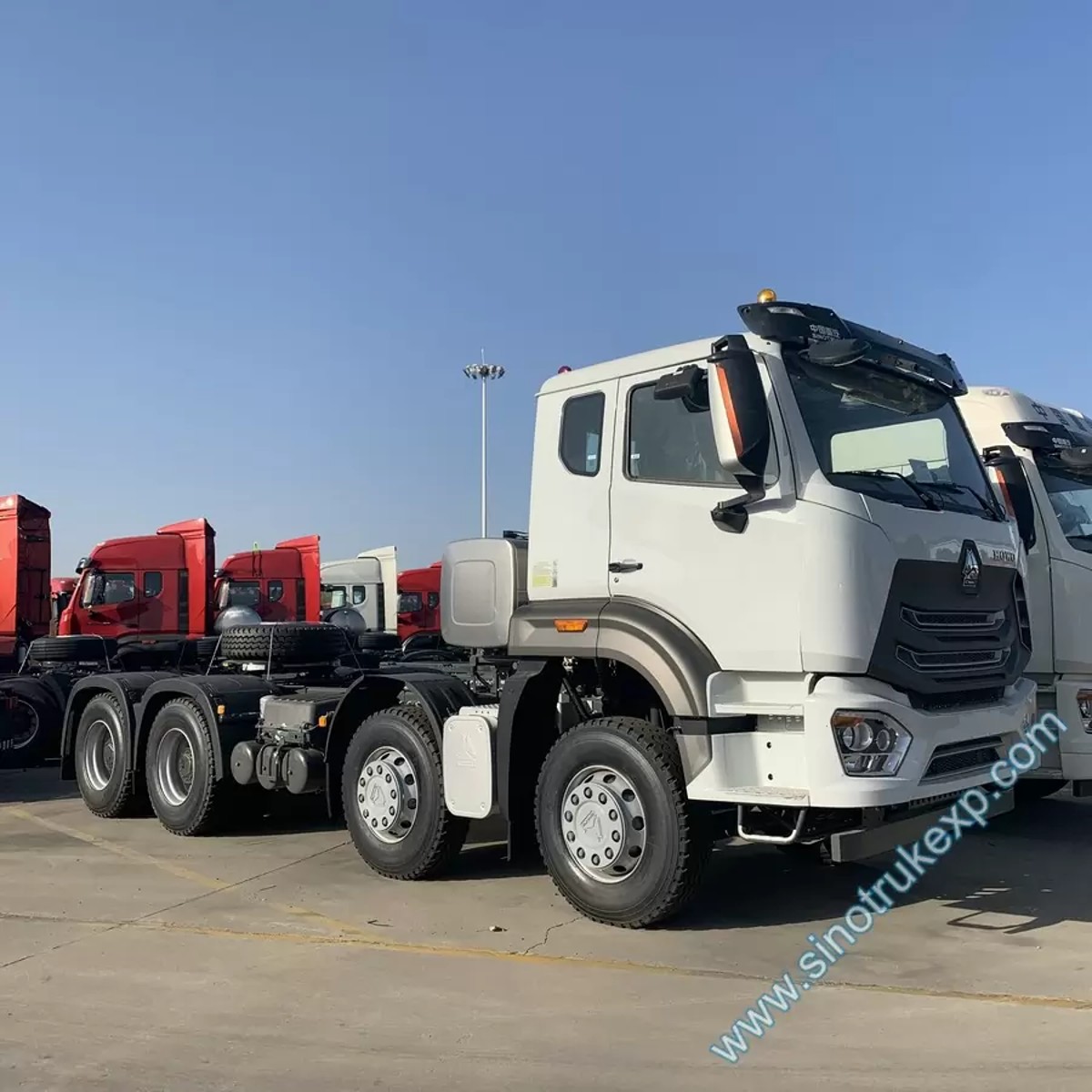

HOWO 8X4 TRACTOR TRUCK CHASSIS
ZZ4357S2841V/ZZ4357S2841W  SINOTRUK HOWO 8X4 Tractor Truck
Contact us
Email

- Product Description -


ModelZZ4357S2841V/ZZ4357S2841W  SINOTRUK HOWO 8X4 Tractor Truck12 wheeler tractor truck prime mover  430hp, 371hp 400hp
EngineMake:SINOTRUKEngine model: : WD615.47, Euro II emission standard4 stroke direct injection diesel engine6 cylinder in-line with water cooling, turbo-charging & intercoolingMaximum output: 371hp(273Kw) at 2200 rpm according to DINMaximum torque: 1500Nm at 1100~1600 rpmBore: 126mm;   Stroke: 130mm;  Displacement: 9.726L;  Compression ratio: 17:1Specific fuel consumption: 195g/kWh;  Engine oil filling quantity: 23LCooling system filling quantity (long-term filling): 40LThermostat opening temperature: 80oCTwin cylinder air compressor                   Rigid fanOption:  Thermostat with 71 oC opening begin   Visco fan
ClutchSINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
TransmissionTransmission, model HW19710T, 10 forward and 2 reverseRatio:14.28 10.62 7.87 5.88 4.38 3.72 2.43 1.80 1.34 1.00 13.91/3.18(R)Option:HW19710,  HW20716
Propeller ShaftDouble universal joint propeller shaft with gear-shaped coupling flange
Front AxleNew HF7 series, with drum brake systemSteering with double T-cross section beam
Rear AxlePressed axle housing, central single reduction and differential locks between axlesRatio: 3.73   Option:  4.22  4.42  4.80
ChassisFrame: High-strength U-profile frame, all cold riveted cross members and reinforced subframeFront suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizerRear suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizerSpare wheel carrier: with one spare wheelFifth wheel size: 2 inch  Option:3.5 inch
SteeringZF8098, hydraulic steering with power assistanceRatio: 22.2-26.2:1
Braking SystemFront and rear drum brake, four-circuit protection valveService brake: dual circuit compressed air brakeParking Brake: spring energy, compressed air operating on rear wheelsAuxiliary brake: engine exhaust brake
Wheel & TypesRims: 8.5-20,10 hole-steel Tyres: 12.00-20 TubeOption: 11.00-20 tube  12.00R20 Tube, 12R22.5 tubeless, 315/80R22.5 tubless
Driver’s cabHigh cab, all steel forward control, 55o hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, double berths with 4-point support fully floating suspension and shock absorber with transverse stabilizer, air conditioner, safety belt.
Electrical SystemOperating voltage:24V, negative groundedStarter: 24V, 7.5KWAlternator: 3-phrase, 28V, 1540WBatteries: 2×12V, 165AhCigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
Dimensions in mmWheel base (mm)Front wheel track (mm)Rear wheel track (mm)Front overhang (mm)Rear overhang (mm)Approach angle(°)Departure angle(°)Overall Dimension (mm)3200+14002022/20411830150070016707500×2496×3668
Weight in kgDead weightRated loading capacity at fifth wheelGross vehicle weightGross combination weightFront axle loading capacityRear axle loading capacity921015660250007000070009000×2
PerformanceMaximum driving speed(km/h)Maximum gradeability(%)Minimum ground clearance(mm)Minimum turning radius (m)Fuel consumption(L/100km)102(reference data)3326518.540(reference data)
