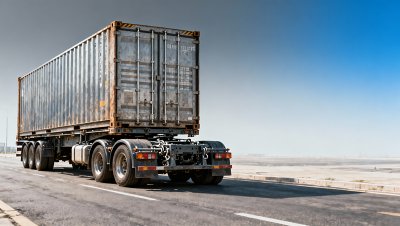

Truck Skeleton Trailer Specs That Matter for Container Stability

When evaluating truck skeleton trailer performance, the right specs directly affect container stability, safety, and transport efficiency. For buyers comparing truck skeleton designs alongside truck steel strength, truck air system reliability, and truck lighting system support, understanding these details is essential. This guide helps procurement teams, distributors, and market researchers assess key structural factors before making informed sourcing decisions.

In international and regional container transport, a truck skeleton trailer is expected to do more than simply carry a 20 ft, 40 ft, or 45 ft box. It must keep the container stable under braking, cornering, uneven road surfaces, and repeated loading cycles. Small specification differences in frame geometry, twist lock layout, cross-member design, suspension settings, and axle placement can significantly influence cargo security and operating cost.

For B2B buyers, the challenge is not just finding a competitive price. The real task is identifying whether a trailer specification matches route conditions, container types, payload expectations, maintenance capability, and compliance requirements. A sourcing decision that overlooks stability-related details may lead to faster tire wear, chassis stress, locking issues, and higher risk during long-haul transport.

Core Structural Specs That Directly Influence Container Stability

Container stability begins with the trailer frame. A truck skeleton trailer typically uses a high-strength steel longitudinal beam structure with cross-members designed to distribute concentrated loads from standard ISO container corner castings. For many heavy-duty applications, buyers should examine whether the frame is built around typical payload ranges such as 30–40 tons, rather than relying only on an advertised maximum capacity number.

The gooseneck profile, beam depth, and overall deck geometry affect the center of gravity. A lower center of gravity often improves road handling, especially when the trailer operates on highways at 60–90 km/h and also enters yards with uneven surfaces. If the frame is too flexible or poorly reinforced at high-stress zones, stability under dynamic load transfer can decline over time.

Twist lock arrangement is another critical factor. A standard container chassis must align accurately with 20 ft and 40 ft container corner positions. Adjustable or retractable locks may improve versatility, but they must maintain secure tolerance and locking consistency after repeated use. Procurement teams should verify lock material, corrosion protection, and whether the mechanism remains reliable after 5,000–10,000 loading cycles.

Cross-member spacing is often underestimated. Wider spacing may reduce weight, but excessive spacing can weaken support behavior under torsional stress. This becomes especially important when the trailer handles partially loaded containers, reefer units with uneven mass distribution, or routes with potholes, ramps, and terminal transitions. Strong truck steel selection matters here because frame rigidity and fatigue life are closely linked.

Key frame and locking checkpoints

• Confirm compatibility with 20 ft, 40 ft, and where needed 45 ft container formats.
• Check whether beam material and thickness match expected axle load and route severity.
• Review twist lock quantity, position accuracy, and operating convenience for yard staff.
• Inspect reinforcement around kingpin area, rear overhang, and suspension mounting points.
• Ask for tolerance control data on frame straightness and lock alignment before shipment.

The table below summarizes structural specifications that most directly affect container stability during commercial operation, especially for distributors and fleet buyers comparing multiple truck skeleton trailer suppliers.

For most sourcing projects, the best structural option is not necessarily the lightest trailer. Buyers should balance tare weight reduction with beam strength, locking precision, and fatigue resistance. In many logistics operations, a slightly heavier but better-reinforced frame delivers lower lifetime cost over 3–5 years of service.

Axle, Suspension, and Brake System Matching for Stable Road Behavior

A truck skeleton trailer may look structurally sound on paper, but poor axle and suspension matching can still reduce container stability on the road. The axle layout, wheelbase distribution, suspension type, and brake response all influence how the trailer behaves under lane changes, downhill braking, and mixed road conditions. For 2-axle and 3-axle configurations, proper weight distribution is essential to avoid sway and uneven tire loading.

In many export markets, 3-axle skeleton trailers are preferred for payload flexibility and compliance with road regulations. However, adding axles without proper suspension calibration can increase tire scrub and reduce handling consistency. Buyers should check whether the supplier provides mechanical suspension or air suspension options based on route profile, average speed, and container weight patterns.

Truck air system performance also matters because brake response and air line reliability affect directional stability during emergency deceleration. A poorly protected air circuit, low-grade valves, or inconsistent brake chamber specification can create delayed braking on one axle group. At 80 km/h, even a small response imbalance can increase stopping instability and tire flat-spot risk.

Suspension equalization should be reviewed together with axle brand quality, brake lining service interval, and hub maintenance requirements. In high-frequency port haulage, where trailers may complete 2–6 loading cycles per day, component durability often has more value than the lowest initial purchase price. Stability is a system outcome, not just a frame feature.

What procurement teams should verify

1. Axle rating per unit and total design load for the intended container operation.
2. Suspension type based on road quality, cargo sensitivity, and maintenance conditions.
3. Brake chamber consistency, air tank capacity, and line routing protection.
4. Availability of spare parts for axles, hubs, bushings, brake shoes, and valves.
5. Inspection intervals, such as every 10,000 km to 20,000 km for fleet maintenance planning.

The following comparison helps buyers align chassis running gear with actual transport requirements rather than generic specification sheets.

A reliable running gear package improves more than safety. It also supports tire life, reduces unscheduled maintenance, and keeps containers level during loading and unloading. For distributors evaluating resale potential, trailers with balanced axle and brake specifications are easier to position in competitive markets.

Container Compatibility, Dimensional Accuracy, and Load Distribution

Stability problems often begin with dimensional mismatch rather than obvious structural failure. A truck skeleton trailer must match container standards precisely enough to ensure proper lock engagement, even support, and legal road clearance. Buyers should verify compatibility for the intended mix of 20 ft, 40 ft, or 45 ft containers, especially when the fleet serves ports, inland depots, and cross-border routes with different box usage patterns.

The kingpin setting and axle spacing determine how payload transfers to the tractor and trailer group. If the trailer is optimized only for one container length, stability can decrease when operators regularly switch between different box sizes. This is particularly relevant for 20 ft heavy containers, where load concentration is higher and improper position adjustment can overload sections of the chassis.

Dimensional accuracy also affects service efficiency. If twist locks are misaligned by even small tolerances, loading time can increase, and repeated forced positioning may damage lock components. Over dozens of terminal cycles per month, this turns into a maintenance and safety issue. Procurement teams should request inspection records for frame straightness, axle alignment, and coupling geometry before accepting delivery.

Truck lighting system support should not be overlooked in this section. Lighting harness routing, rear lamp protection, and side marker visibility all contribute to safe operation when container overhang, yard movement, and nighttime road use are involved. Stable transport is not only mechanical; it also depends on visibility and predictable maneuvering.

Practical dimensional review points

Fit-up and alignment

• Confirm corner casting contact points are correctly positioned for the container types used most often.
• Review axle alignment and tracking tolerance to reduce tire drag during long-haul operation.
• Check kingpin placement against tractor compatibility and local axle load rules.

Operational stability factors

• Assess whether the trailer can maintain stable support when switching between empty and loaded containers.
• Verify rear protection, lamp placement, and harness routing for frequent ramp and yard movement.
• For 45 ft use, confirm extension design does not compromise lock security or rear frame rigidity.

For business evaluators, the most useful question is whether the trailer is dimensionally optimized for the actual container mix, not merely whether it can theoretically accept multiple lengths. A versatile specification should maintain secure load distribution across at least 3 operating conditions: empty repositioning, standard full-load transport, and frequent terminal handling.

How to Evaluate Supplier Specifications Before Purchase

Specification sheets can look similar across suppliers, but sourcing quality depends on how deeply a buyer validates the details behind the numbers. For truck skeleton trailer procurement, teams should compare not only nominal dimensions and capacity, but also materials, welding consistency, parts sourcing, and after-sales support. A low-cost offer may hide weaker steel grade selection, simplified reinforcement, or limited spare parts availability.

A practical evaluation process usually includes 4 stages: requirement definition, technical review, sample or factory verification, and commercial negotiation. In the technical review stage, buyers should request drawings, component lists, axle and suspension brands, brake system layout, and corrosion protection details. For export business, it is also helpful to confirm packaging method and typical lead times such as 20–45 days depending on order size and production schedule.

Factory verification is especially valuable for distributors and agents. Even if an on-site audit is not possible, a remote inspection can still cover welding lines, jig accuracy, paint preparation, assembly flow, and pre-delivery testing. This helps identify whether the supplier can consistently produce trailers with stable dimensional control rather than only one acceptable sample unit.

The Global Heavy Truck Industry Platform is useful in this process because buyers can compare suppliers across the heavy truck supply chain, review product categories, and narrow down partners based on configuration fit, market orientation, and business responsiveness. For procurement teams handling cross-border projects, access to multiple verified product options shortens the comparison cycle and improves negotiation confidence.

Supplier assessment checklist

The table below can be used as a practical sourcing tool when screening truck skeleton trailer suppliers for container stability, lifecycle reliability, and resale suitability.

A strong supplier review process reduces the risk of buying on appearance alone. In many cases, requesting 6 key documents or checkpoints before order confirmation can prevent costly disputes later: drawing confirmation, parts list, lock layout, axle and suspension details, anti-corrosion process, and pre-shipment inspection records.

Common Mistakes, Maintenance Priorities, and Long-Term Value

One common buying mistake is focusing only on rated load and trailer price. A truck skeleton trailer with insufficient reinforcement, poor brake line routing, or low-grade lighting protection may still meet basic shipping documents but create higher cost in service. Stability-related failures are often indirect: container vibration, uneven braking, accelerated tire wear, cracked brackets, or recurring lock maintenance.

Another mistake is underestimating maintenance discipline. Even well-built trailers need periodic inspection. In normal logistics service, buyers should plan checks for twist locks, brake chambers, hoses, fasteners, and lighting circuits at set intervals. A practical rhythm may include visual checks before dispatch, monthly hardware inspection, and more complete servicing every 10,000–20,000 km depending on route intensity.

Corrosion control is a long-term value issue, especially for port operations, humid climates, and coastal trade corridors. Surface treatment quality affects not only appearance but also lock function, frame life, and electrical reliability. Where trailers face frequent water, salt, or mud exposure, better coating systems and protected wiring can lower downtime over a 24–36 month period.

For dealers and distributors, the long-term value of a stable trailer specification is also commercial. Products with durable truck steel construction, dependable truck air system components, and protected truck lighting system layouts are easier to support in aftermarket service. This improves customer retention and reduces claim pressure after delivery.

FAQ for buyers and market researchers

How do I choose between a 2-axle and 3-axle truck skeleton trailer?

The decision depends on payload target, local road rules, and route severity. A 2-axle option may suit lighter or shorter-haul operations, while a 3-axle chassis is often better for higher payloads, wider compliance flexibility, and more stable load distribution over long distances.

Which specification matters most for container stability?

There is no single factor. Stability comes from the combination of frame rigidity, accurate twist locks, proper axle placement, matched suspension, and reliable braking. If one of these areas is weak, the overall performance can drop even when the rated capacity looks sufficient.

What delivery information should buyers request before placing an order?

Request confirmed dimensions, supported container sizes, axle and suspension details, brake system configuration, anti-corrosion process, spare parts list, and estimated production lead time. For many B2B orders, a realistic manufacturing and dispatch period may range from 20 to 45 days, depending on quantity and customization level.

How often should a container chassis be inspected?

Routine inspection frequency depends on route intensity, but many fleets apply pre-trip checks, monthly hardware reviews, and scheduled maintenance every 10,000–20,000 km. High-cycle port fleets may need more frequent lock, brake, and lighting checks.

For procurement teams, the most effective strategy is to treat truck skeleton trailer selection as a whole-system decision. Frame design, lock accuracy, axle and suspension matching, air brake performance, and lighting support all contribute to container stability and operating reliability. A better-matched trailer specification can reduce service issues, improve loading efficiency, and support safer transport across varying road and terminal conditions.

If you are comparing suppliers, planning distributor inventory, or evaluating container chassis options for cross-border sourcing, the Global Heavy Truck Industry Platform can help you access relevant trailer products, compare technical configurations, and identify suitable manufacturing partners. Contact us today to discuss your requirements, request product details, or explore more heavy truck and trailer solutions for your market.
