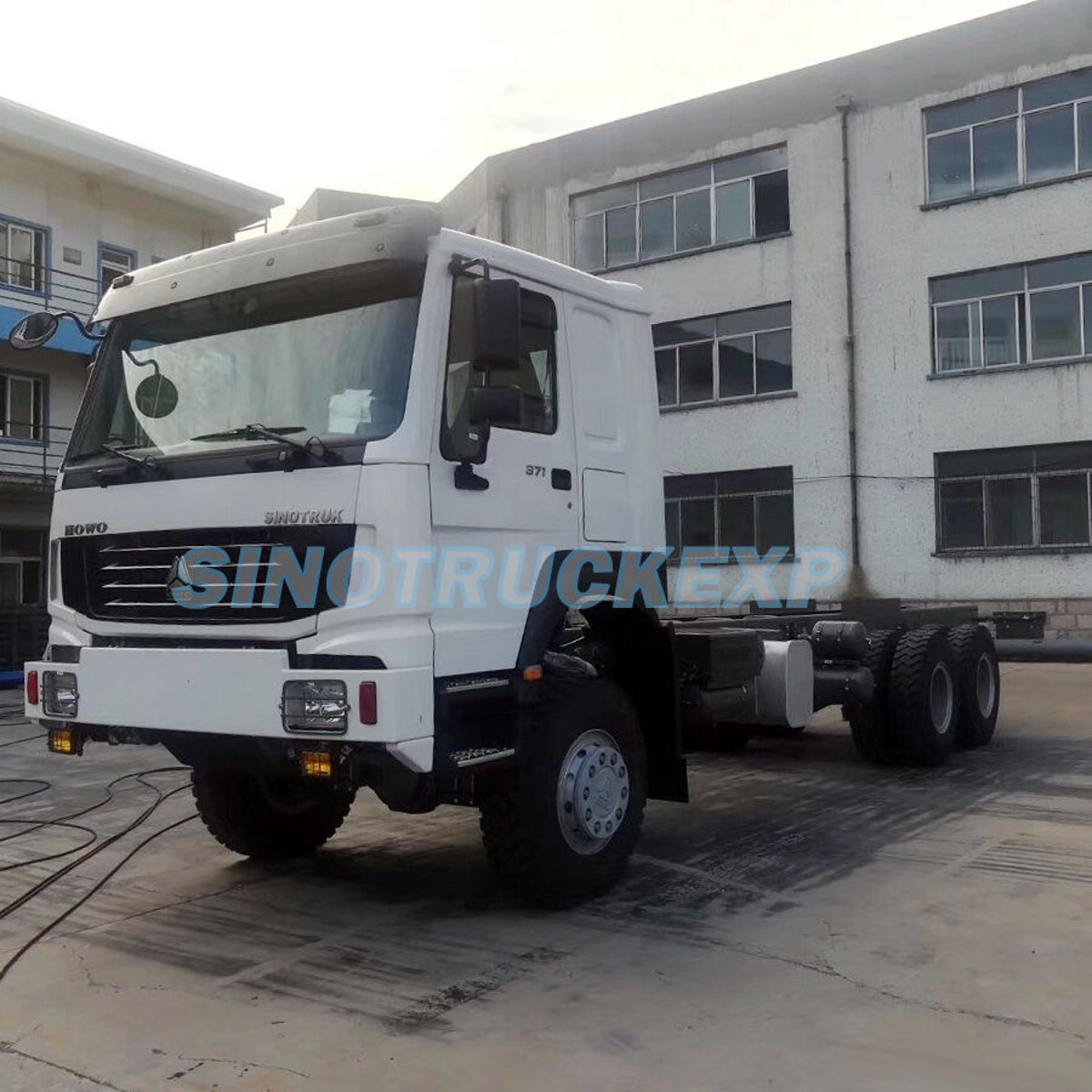

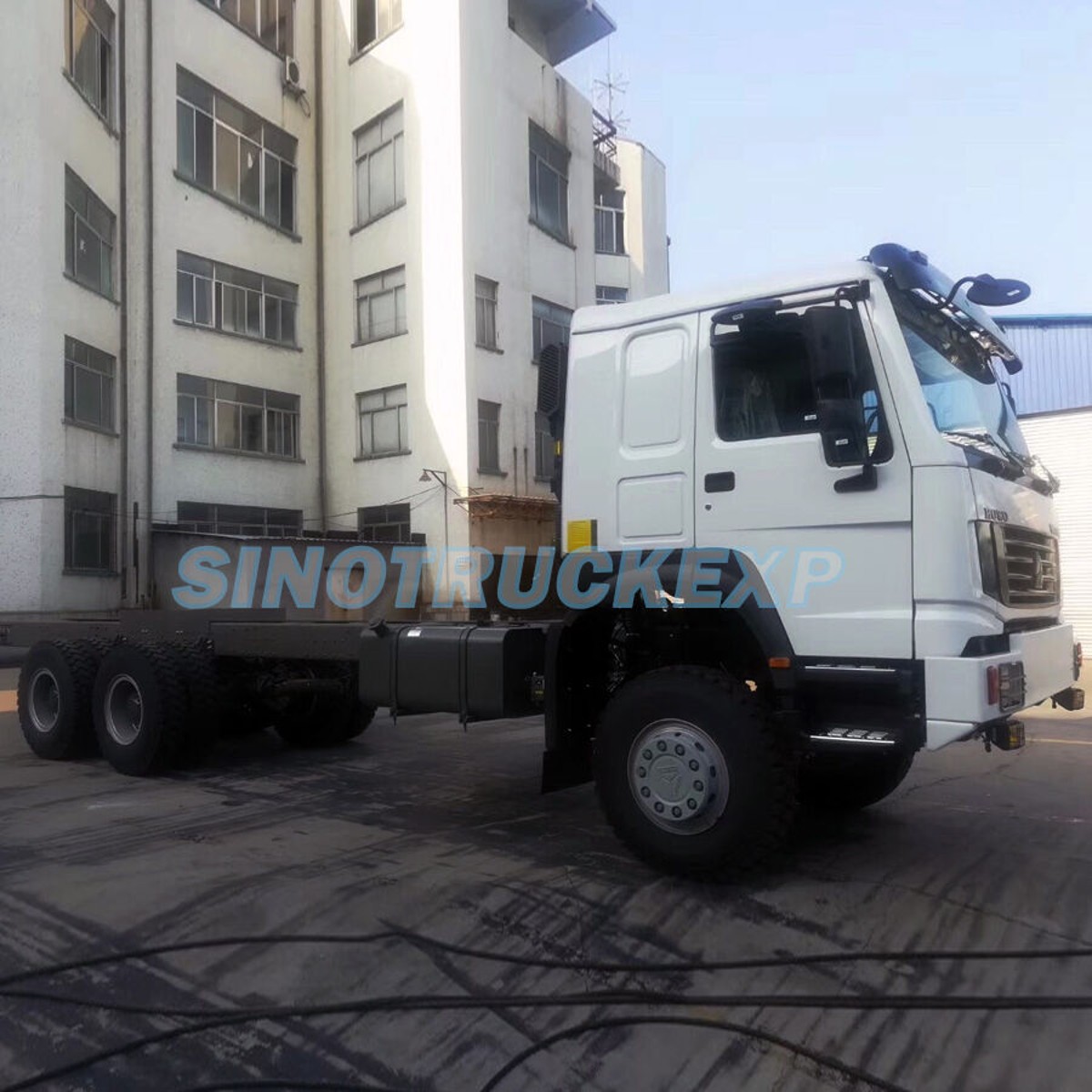

HOWO 6x6 cargo truck chassis

HOWO 6x6 cargo truck chassis
HOWO series products and Steyr series products which are the chassis for various special vehicles include mine dump truck series, low-speed tractor, 4-door fire engine series, timber truck series, multi-axis transporter series, cement mixer series, dump truck series, etc.

- Product Description -

HOWO 6x6 cargo truck chassis

HOWO series products and Steyr series products which are the chassis for various special vehicles include mine dump truck series, low-speed tractor, 4-door fire engine series, timber truck series, multi-axis transporter series, cement mixer series, dump truck series, etc. 1Ox10, 8x8, 6x6 and 4x4 series full-drive off-road vehicles and 6x4 and 4x2 series transporters make comprehensive services in the special vehicle market of various industries and have tremendous space for development.


Model6x6 cargo truck chassisZZ2257M5857A/ L0WAZZ2257M5857A/M0WAZZ2257N5857A/N0WAZZ2257N5857A/S0WA
CabinFour point s suspension Howo Cabin with spring and air shock absorber, A/C, VDO panel

Adjustable steering, sun cover
EngineType: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
Model:WD615.47STEYR technology(CNHTC)

MAX Horse power:266HP/196KW290HP/213KW336HP/247KW371HP/273KW

Displacement(L):9.726liter (Euro 2 standard)

Max torque:1500NM@1200-1600rpm

Bore/stoke:126mm/130mm

Fuel consumption:197g /kwh
Gear boxCNHTCMax torque:1500NM

Model:HW15710/HW19710

Speed:10speed,2 reverse
Ratio123456789reverse

14.210.627.875.884.383.272.431.81.3413.91
Axle(front/rear)
Front axleHF9ton STEYR technology front steering axle
TandemAC 16ton STEYR technology double reduction hub reductor driving axle Ratio: 4.42
ClutchD430 diaphragm type clutch
BrakeService brake: Dual lines air brake

Parking brake: Spring-Power drum brake

Engine brake: Engine exhaust brake(EVB)
SteeringZF8098, driver sit at the left hand side

Framestrengthen steel frame, designed according to tough road condition.
Tyre10+1 spare tyre with rim

12.00-20; 12.00R20; 12.00R24
Suspension system: strongthen heavy duty Leaf spring type

Front/Rear10/12
Cargo body:
Inside size of Body(mm): 9300×2326×800mm, floor 3mm, side 1.5mm
Can be refitted into refrigerator truck, van truck, logging truck, vacuum truck, water truck, oil tank truck, and so on
