Driving type 4x2 LHD/RHD2080 standard cab, with two seats, and air condition, one sleeper, without air deflector. 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions
Overall dimensions (L x W x H) mm
8500x2500x3350

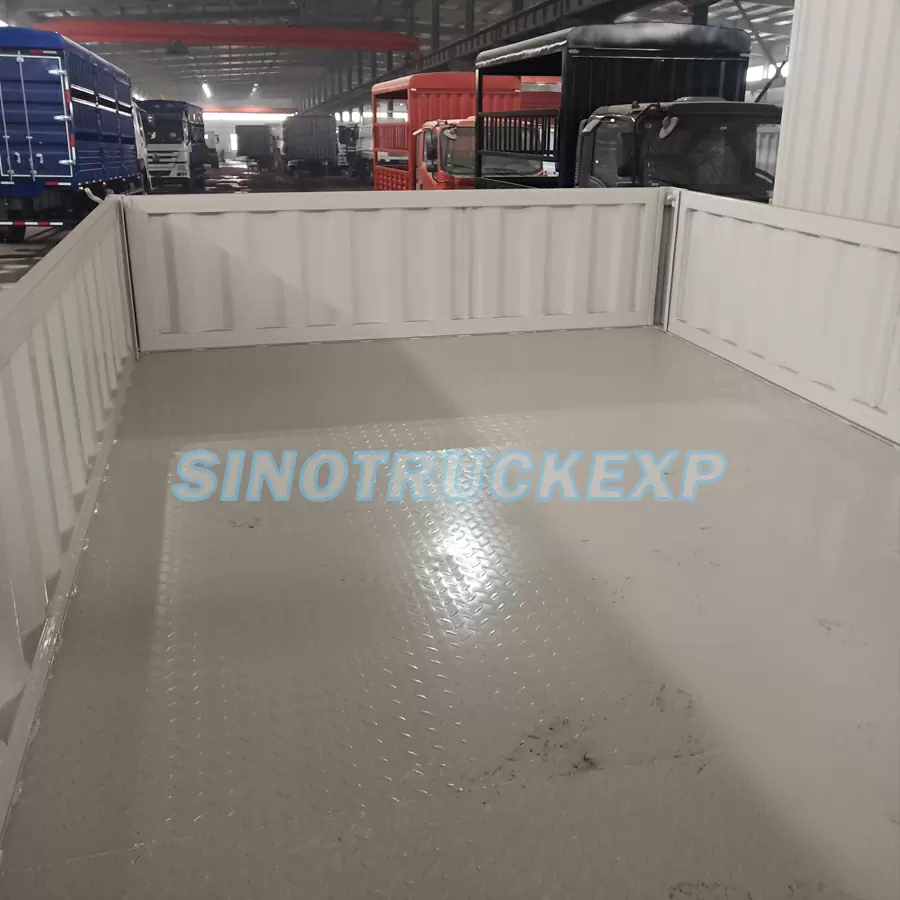

Carriage Size (L x W x H) mm
4900x2300x600
Wheel base (mm)
4500
Wheel track (front/rear) (mm)
1589/1599
Weight in KGS
Tare Weight
6000
payload
8000
Front axles loading capacity
1x4500
Rear axles loading capacity
1x9500
Max. driving speed（km/h）
90
Engine
Brand
YUCHAI
Model
4110Y
Type
4-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power（HP)
140
Emission standard
Euro Ⅱ, Diesel
Gearbox
WLY6T51, 6 Forwards gear & 1 reverse gear, Manual
Tire
8.25R20 steel radial tire 7 pcs including one spare tire
Crane specifications
Brand : XCMG
Model: SQ5ZK2Q/SQ5ZK3Q
Type: straight
Max lift capacity: 3200 kg
Max working radius 9.2 m, Max lifting height 12.3m
