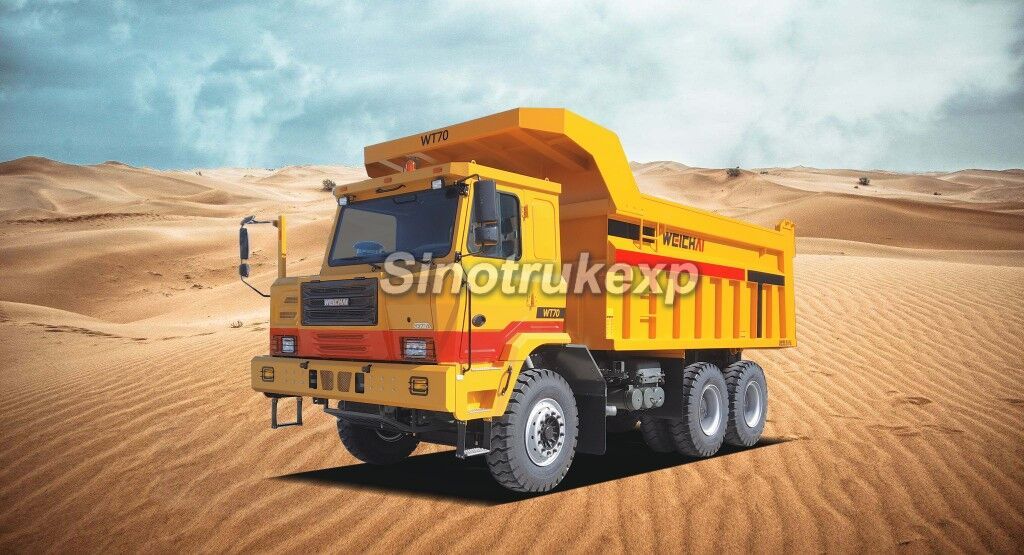

WECHAI LOVOL Mining Truck WT70
WECHAI LOVOL Mining Truck WT70

- Product Description -

Product Name

70Ton

Dimension Spefication

Model

WT70

GVW(t)

70

Payload(t)

45

Overall Dimensiom(length*width*Height(mm)

9050×3100×4150

Drive Type

6×4

Body Capacitym³)(平装)

24

Wheelbase(mm)

3800+1550

Wheel Track(mm)

2248(Front 2512)

Maxium speed(km/h)

40

Max Gradbility%

30

Min. Turning radius (m)

22

Min Ground Clearanc(mm)

380

Axle

Fully loaded(t)

18/25/25

Engine

Model

WP12G430E310(Euro III)

Maximum output

316/2100

Maximum torque

1870/(1200-1600)

Cluth

Model

430

φ Single-plate clutch,hydraulically operating with air   assistance

Transimission

Model

Fast 7DS200

Rear Axle

Type

Center, wheel side planetary double-stage speed reduction with   inter-axle differential lock

Max.loading(t)

25

Air Filter

Model

Electric multi-stage dust air filter

Radiator

Structure

Plate fin radiator

Fuel Tank

Capacity(L)

600L

Steering

Type

Hydraulic power steering, hydraulic cylinder assist

System Pressure(MPa)

17

Flow(L/min)

25

Brake system

Service brake

Double circuit drum air brake

Parking brake

Spring energy storage air brake, and emergency brake

Auxiliary braking

EVB+WEVB

System Pressure(bar)

10

Standing slope(°)

30(Up)/20(Down)

Suspension

Front Suspension

Vertical leaf spring

Leaf Spring   Thickness/Width/Number of Pieces

20/100/13

Rear Suspension

Leaf spring balance suspension

Leaf Spring   Thickness/Width/Number of Pieces

37/89/10

Hydraulic Cylinder

Bore

172

Cabin

Type

Unilateral left, semi-floating, forward 46°

shock-absorbing seat

Up and down, front and rear adjustable, backrest angle adjustable

Chassis

Type

High strength steel flexible frame (10+10)

Tyre

Tyre

14.00R24  ★★★

Wheel

10.00-24

Others

Options

Optional aluminum alloy fuel tank, hydraulic retarder, dual-chamber fuel   tank, back-flushing air filter, oil filter, spray device


WEICHAI LOVOL MINNING TRUCK_wk.jpg
