SINOTRUK HOWO A7 10 WHEELER TRACTOR TRUCK WITH XCMG KNUCKLE CRANE, MOUNTED HIAB CRANE, PRIME MOVER MOUNTED CRANE.
| Truck Model | ZZ4257V3247N1B |
| Truck Brand | SINOTRUK—HOWO A7 |
| Driving Position | Right Hand Driving / Left Hand Driving |
| Fuel tanker capacity(L) | 400 |
| Total Weight (KG ) | 25000 |
| Max speed(km/h)(km/h) | 101 |
| Color | Optional |
| Dimension(Lx W xH)(unloaded)(mm) | 6985x2496x3850 |
| Approaching angle/Departure angle(°) | 15/46 |
| Overhang(front/rear) (mm) | 1540/870 |
| Wheel base (mm) | 3225+1350 |
| Engine | D12.42 420hp |
| Emission | EURO II |
| Fuel type | Diesel |
| Clutch | SINOTRUKΦ430mm diaphragm spring clutch |
| Gear Box | HW19710 |
| Front Axle Model | HF9 |
| Rear Axle | HC16 |
| Steering system | 8118 hydraulic steering with power assistance |
| Tire | 12.00R20 10+1 sparen |
| Kin pin | 90mm |
| Cab | A7-Gdouble sleeper, with air-conditioner |

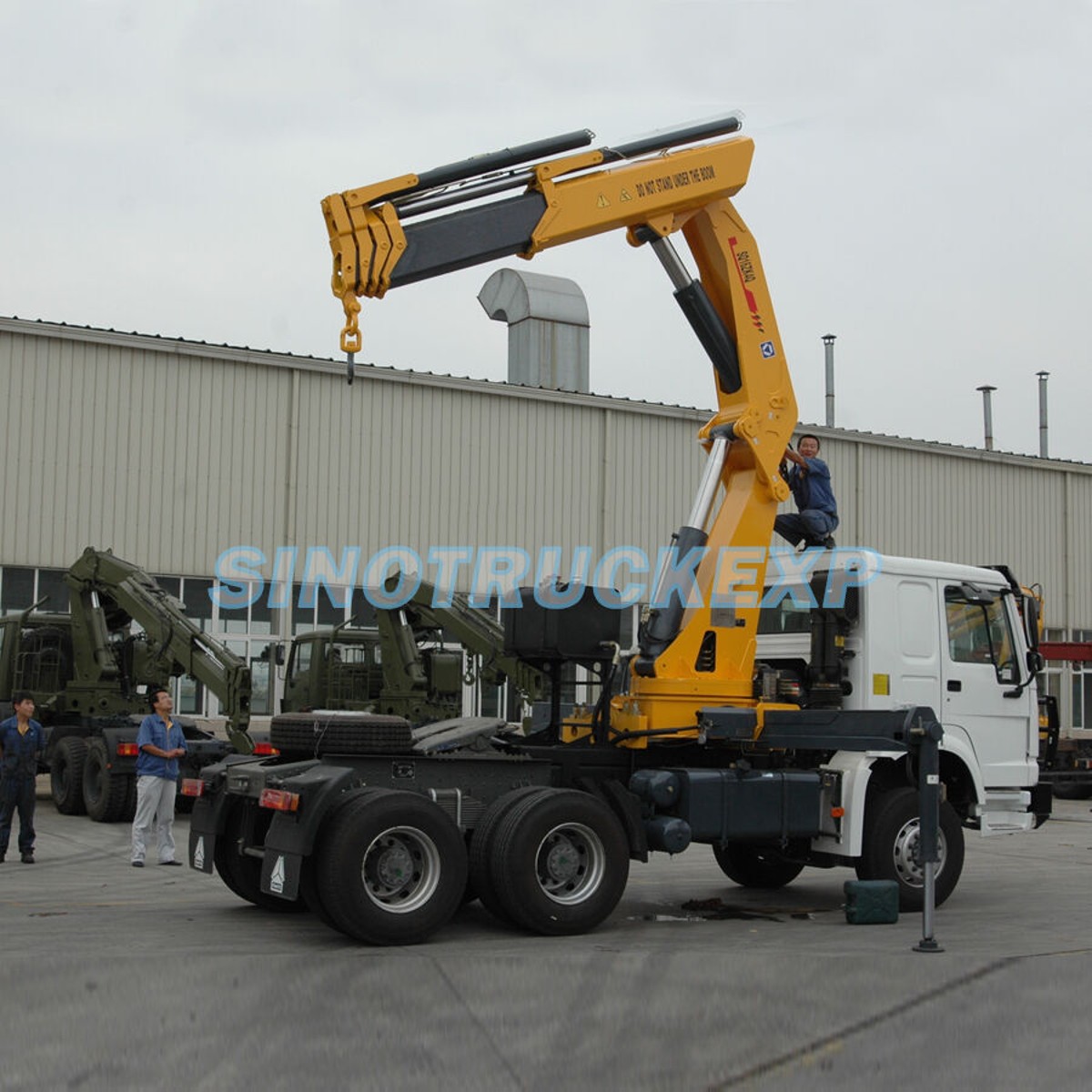

| Articulated boom mounted crane |
| Model | SQ10ZK3Qfolding boom crane |
| Crane loading capacity | 10,000KG |
| Max Lifting Moment | 20MIN |
| Recommend Power | 28T.M |
| Crane Weight | 3477KG |
| Installation space | 1150mm |
| Rotation Angle | 360 degree All Rotation |
| Max Oil Flow of Hydraulic System | 40 |
| Max Pressure of Hydraulic System | 30 L/min |
