HOWO 4x4 cargo truck chassis
HOWO series products and Steyr series products which are the chassis for various special vehicles include mine dump truck series, low-speed tractor, 4-door fire engine series, timber truck series, multi-axis transporter series, cement mixer series, dump truck series, etc.
Contact us
Email

- Product Description -

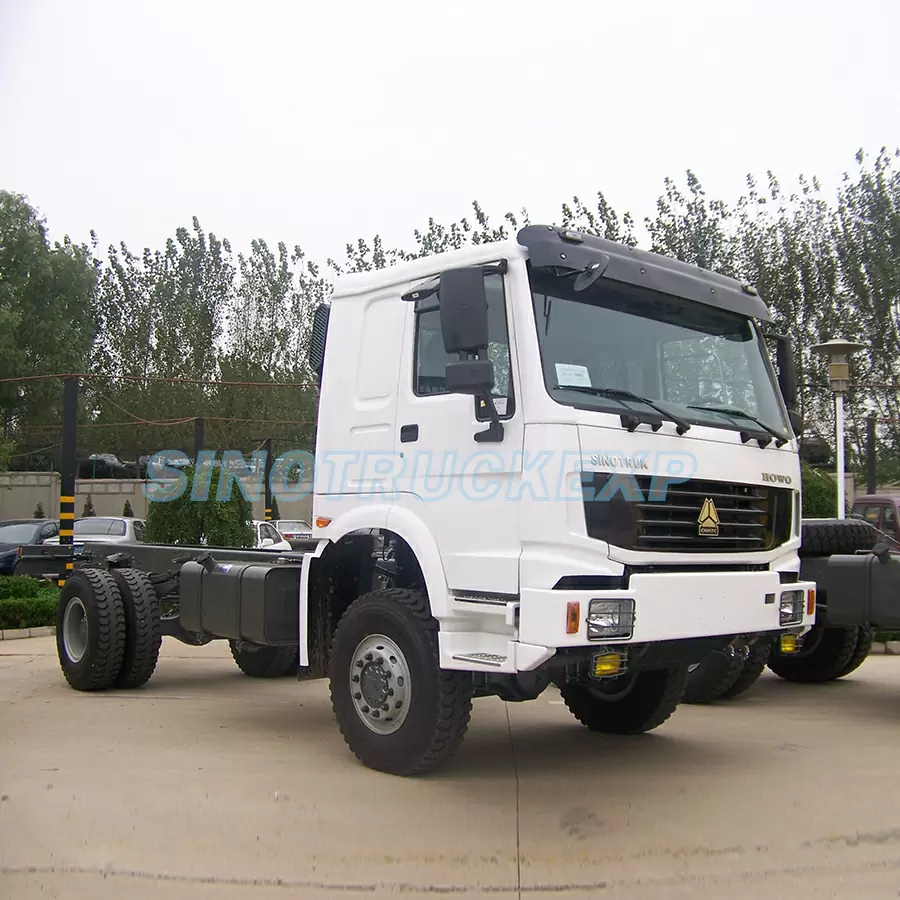

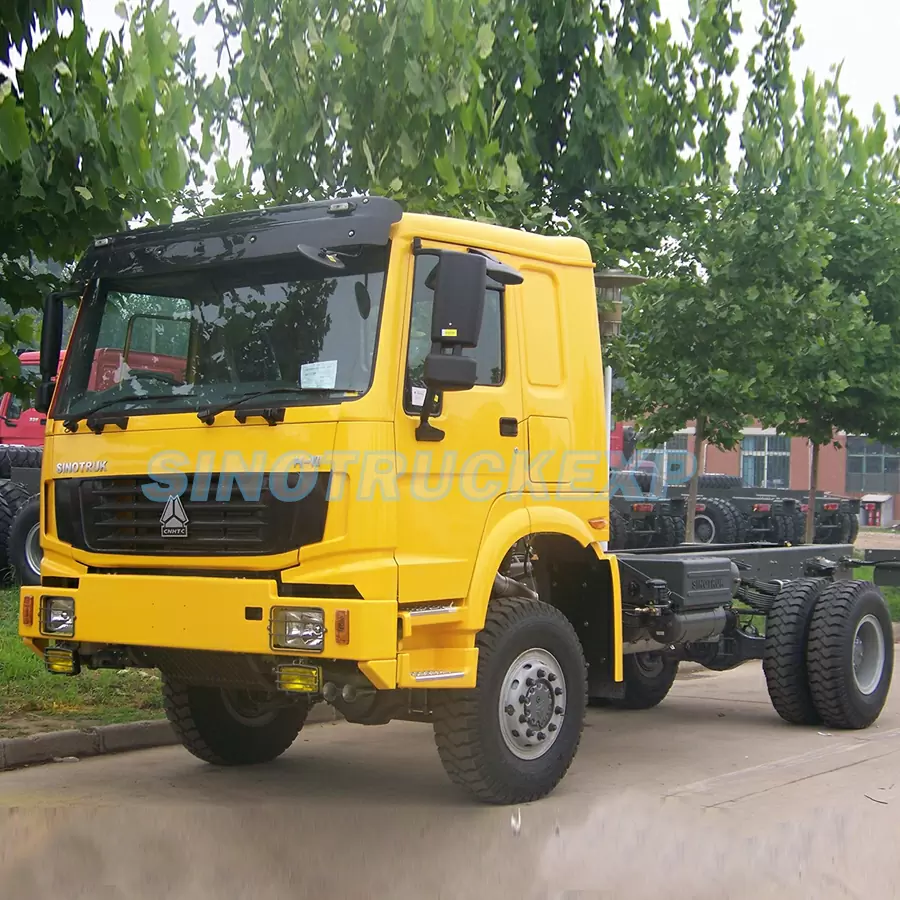

HOWO 4x4 cargo truck chassis

HOWO series products and Steyr series products which are the chassis for various special vehicles include mine dump truck series, low-speed tractor, 4-door fire engine series, timber truck series, multi-axis transporter series, cement mixer series, dump truck series, etc. 1Ox10, 8x8, 6x6 and 4x4 series full-drive off-road vehicles and 6x4 and 4x2 series transporters make comprehensive services in the special vehicle market of various industries and have tremendous space for development.



Technical Parameters



Main Specifications
Truck model ZZ2167M3827A/M0WAZZ2167M3827A/L0WAZZ2167M4327A/L0WAZZ2167M4327A/M0WAZZ2167M4627A/L0WAZZ2167M4627A/M0WAZZ2167M5227A/L0WAZZ2167M5227A/M0WA
Sales codeHW7/266/O43/4×4WHW7/290/O43/4×4WHW7/266/O38/4×4WHW7/290/O38/4×4WHW7/266/O46/4×4WHW7/290/O46/4×4WHW7/266/O52/4×4WHW7/290/O52/4×4W
Dimension ( length width height ) (mm)7568×2496×3146
Gross weight(Kg)16000
Total weight(Kg)7730
Max.speed(Km/h)76
Wheelbase(mm)4300
EngineModel                                             WD615.92/WD615.62/WD615.87
Rated engine power(KW/rpm)196/2200213/2200
Max.torque(N.m/r/min)1100/1100-1600
Clutchφ420mm Single-plate dry, spiral spring clutch(on 266-336PS);reinforcedφ430mm diaphragm clutch (on 375PS)
GearboxRT11509C(RT11509C on 266-336PS),RT11509G(RT11509G on 375PS). All models have the altemative of 5S-150GP.
Drive axle  steel front steering drive axle with paletary wheel reduction,ST16 rear drive axle
Steering ZF8098
TransmissonModelZQC1200
Ratio1/1.75
Brake typeService braking; dual circuit compressed air brake; parking brake(hand brake), spring energy air cut brake
CabHOWO76 cab
Electric systemHOWO electric system,24V, negative grounded
Tire12.00-20 Options are: 11.00-20 , 11.00R20 , 12.00R20 , 14.00-20
Fuel tank(L)400
