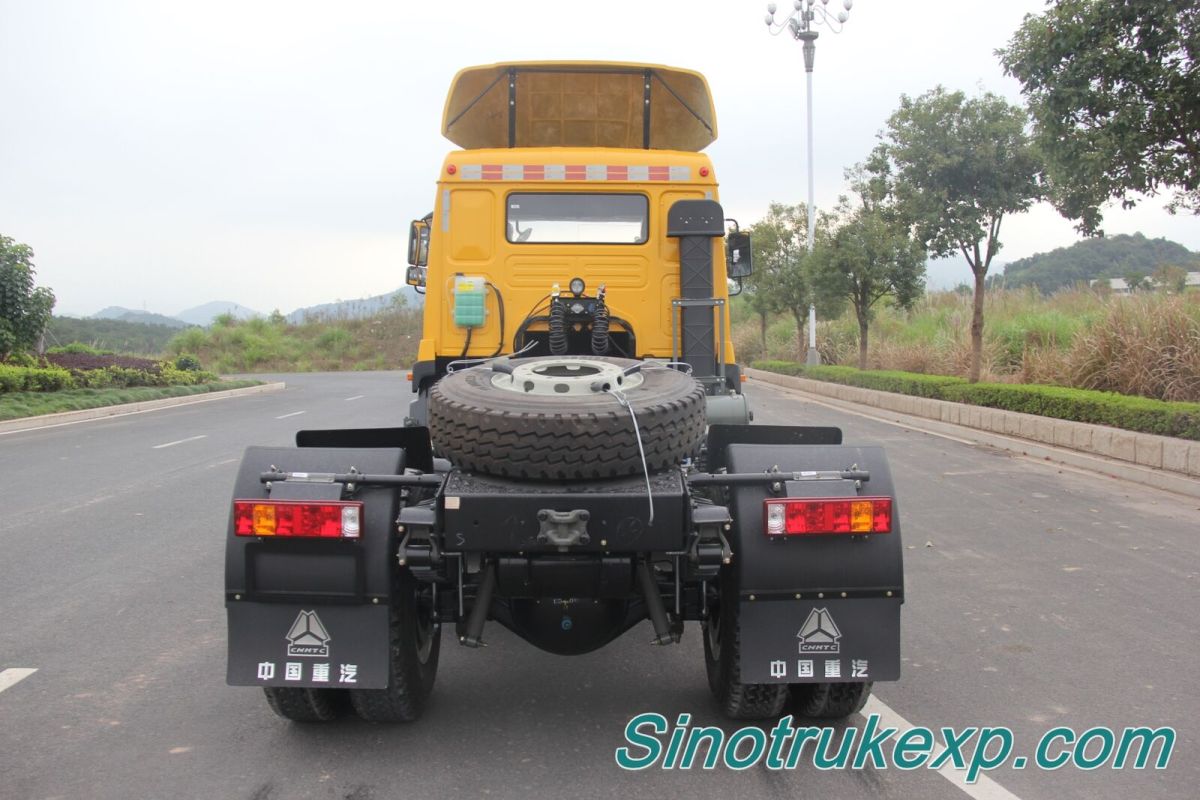

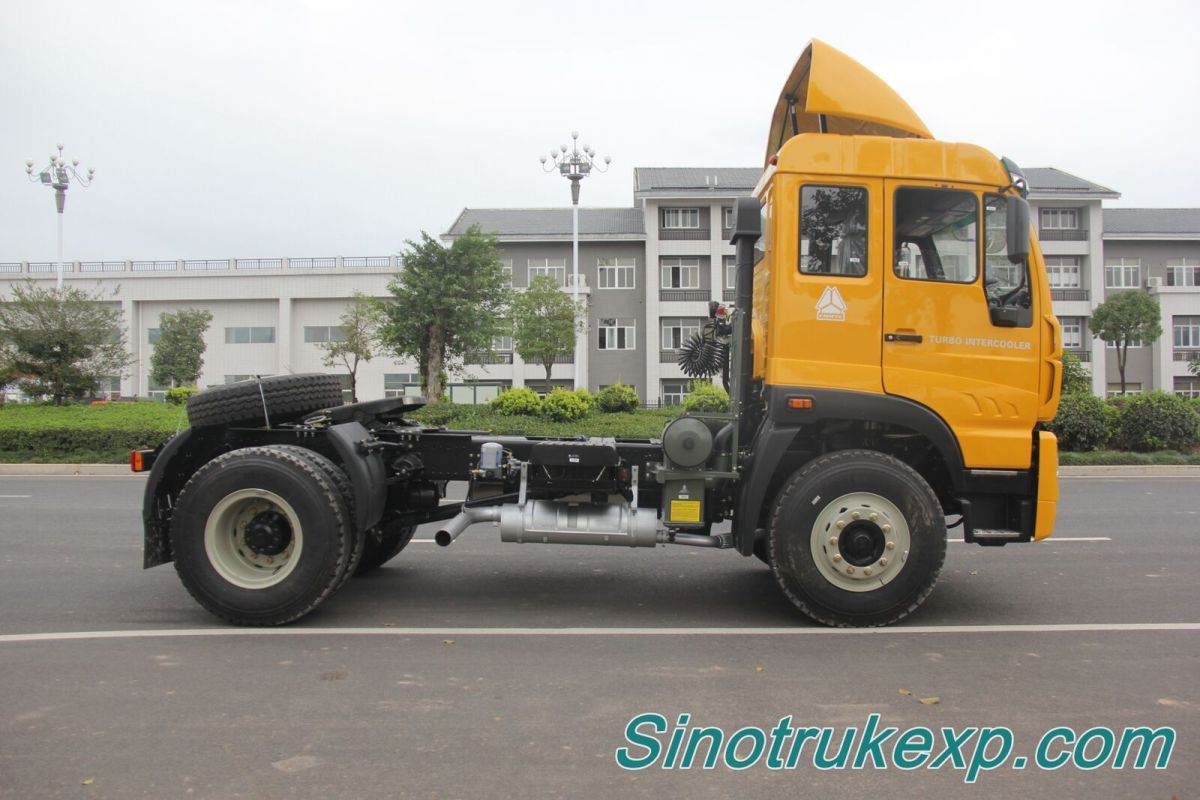

SINOTRUK HOMAN H5B-4×2 TRACTOR ZZ4188K3610C1R
SINOTRUK HOMAN H5B-4×2 TRACTOR ZZ4188K3610C1R
RIGHT HAND DRIVE

- Product Description -







Vehicle dimensions

Wheelbase

3600mm

Front overhang

1320mm

Rear overhang

895mm

Wheel track of front axle

2050mm

Wheel track of rear axle

1847mm

Chassis length

5815mm

Approach angle

22°

Departure angle

17°

Maximum driving speed

98 km/h

Maximum gradeability

38%~40%

Minimum ground clearance

204mm

Minimum turning diameter

<15m

Fuel consumption

28~30 L/100km

Cargo body size

-

Overall Dimension

5815mm×2460mm×3750mm

width of the cabin

H5B

Weight

Kerb.mass

7040kg

Gross vehicle weight

18500kg

Front axle loading capacity

5500kg

Rear axle loading capacity

13000kg

  Engine   Parameters

Engine Model

YC6J220-33

Rated Power

162/2500 (KW/rmp)

Maximum Torque

1760/1400~1700 (Nm/rmp)

Features

6-cylinder in-line,6.494 liter

Clutch

395B diaphragm spring clutch, single plate

Gearbox

Gearbox Type

DC7J100TC 7 speed manual control

Gearbox ratio

1

8.4

2

5.52

3

3.62

4

2.36

5

1.54

6

1

7

0.79

R

8.63

Braking System

Type

Air brake system

Service brake

Dual-circuit air brake

Parking brake

Spring energy,

Compressed air operating on rear wheels

Auxiliary brake

Exhaust valve braking(EVB)

Wheels & Tyres

Tyres

11.00R20

Wheels

8.00V-20

Steering Gear

Type

D39
  Hydraulically assisted

Axles

Steer

153(5.0T)forging l-beam front axle

Drum brake

Drive

457(13.0T) central single reduction


Drum brake


457:i=4.875

Fuel Tank

Capacity

300 Liters (iron )

Frame

Material

High tensile steel

Section

280*80*(8+4)mm

Frame width

865mm

Electrical System

Type

SINOTRUK CAN bus System with VCO instrument

Voltage

24V

Batteries

2x12V, 165Ah

Alternator

28V/80A

Starter

2.24KW

Suspension

Steer Axle

Semi-elliptical leaf springs
  with shock absorbers and
  stabilizer

Drive Axle

Semi-elliptical leaf springs
