General   Specification

Chiassis Model

ZZ1257N5847P1

Series

A7

Wheel Traction /   Drive Style

6X4

Total Mass

kg

25000

Curb Mass/ Self   Weight

kg

15375

Steering Wheel   Position

LHD/RHD

Engine

Model

D10.38-40

Brand

SINOTRUK

Displacement

9.726L

Type

In-line,   Six-cylinder, Water-cooled, Four- stroke,

Turbocharged   intercooler, high pressure common rail

Engine   Classification /

EURO IV

Bore/Stroke

mm

126/130

Rated Horse Power

hp

380

Net Power

KW/rpm

276KW/2000rpm

Torque (Nm/rpm):

Nm/rpm

1560Nm @ 1200-1500rpm

Clutch   & Gear Box Systems

Clutch

SINOTRUK's ∮430 diaphragm spring clutch

Gear Box

SINOTRUK's HW19710+HW70   PTO

Gear Speed/Lever

10 forward/ 2 reverse

Gear Ratio

14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34,1.00, 13.91(R1),   3.18(R2)

Axle &   Steering

Steering Model

ZF8118

Front Axle

SINOTRUK's HF9

Rear Axle

SINOTRUK's HC16

Ratio of Rear Axle

4.42

Loading Capacity per   Axle

front

(2x) 9000kg

rear

(2x) 16000kg

Brake   System & Suspension

Service Brake

Dual circuit compressed air brake

Auxiliary Brake

Engine exhaust valve brake

Parking Brake (Emergency

Brake)

front

spring energy

rear

compressed air

Suspension Type

front

10pcs leaf spring

rear

12pcs leaf spring

Wheels   & Tires

Wheel Type

stud piloted 10 hole steel disc

Number of Tires

10+1 (spare tire)

Tire Type/Size

12.00R20

Track

front

2022mm

rear

1830mm

General   Performance Parameters

Maximum Driving   Speed

km/h

102

Average Fuel Consumption

liter/km

30liters/100km

Maximum Gradeability

%

≈30°

Cargo Box Tilt Angle

%

Loading Capacity

kg

25000

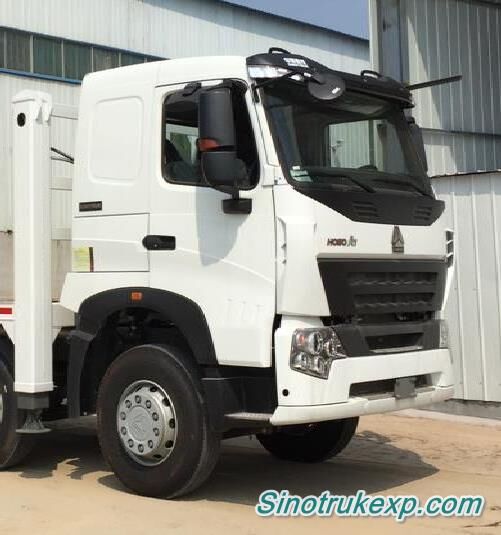

Cabin   (A7-W Model)

All-steel frame with 4-point support fully floating   suspension and shock absorbers , Forward control 70° hydraulically tilt   cabin, 3-speed Twin arm wiper system, Laminated windscreen with casted-in   radio aerial , AM/FM radio cassette stereo player, Hydraulically damped   adjustable driver's seat and rigid adjustable co-driver's seat with 3 point   safety (seat) belt, Adjustable steering wheel, Heating and ventilating   system, Exterior sun visor, Adjustable roof flap and Air horn

SINGLE SLEEPER

WITH A/C

VOLVO TECHNOLOGY CABIN

Chassis   & Dimensions

Frame Details

High-strength 8+7/300mm and reinforced sub- frame

Overall Dimension

length

12600mm

width

2800mm

height

3900mm

Wheelbase

mm

5825+1350

Ground Clearance

mm

314

Vehicle Overhang

front

1500

rear

3288

Front/Approach angle

%

16

Rear/Departure angle

%

9

SIZE (internal dimension)

Length

8500mm

Width

2800mm

Floor

2cm bamboo plywood

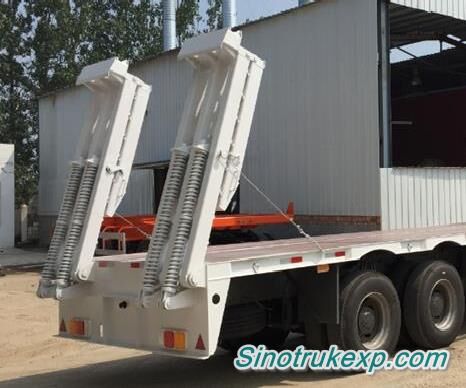

Ladder stand

With

Hydraulic Leg(2*15T hydraulic)

With

Electrical   System

Battery

V/ah

24V/165ah

quantity

2

Alternator

volts

28V

Operating Voltage

volts

24V

Fuel Tank

Capacity

liters

400

Shape / Structure

Rectangular / Aluminum

Crane   Specifications

Manufacture-Model

SQ8SK3Q(3 section   telescopic arm)

Max. lifting capacity

8000kg

Max. lifting moment

20T.M

Recommend Power

27kw

Max. oil flow of hydraulic system

55L/min

Outrigger

Two

Max. pressure of hydraulic

27Mpa

Oil tank capacity

160L

Crane weight

3315kg

Installation space

1200mm

Rotation angle

all rotation

Detailed specification can be   customerized by requirements. The manufacture reserves the right of technical   alteration/change for better improvement without prior notice
