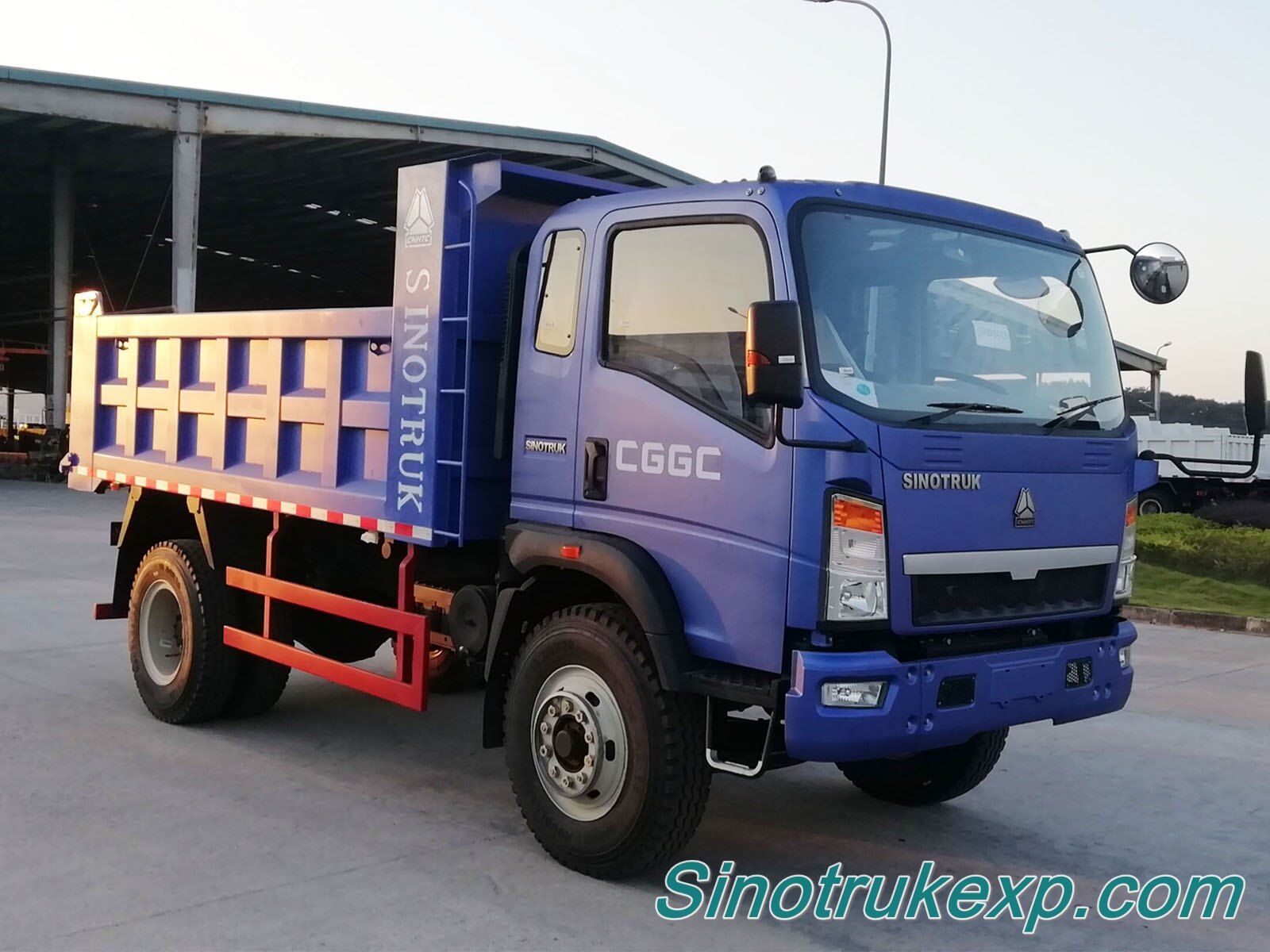

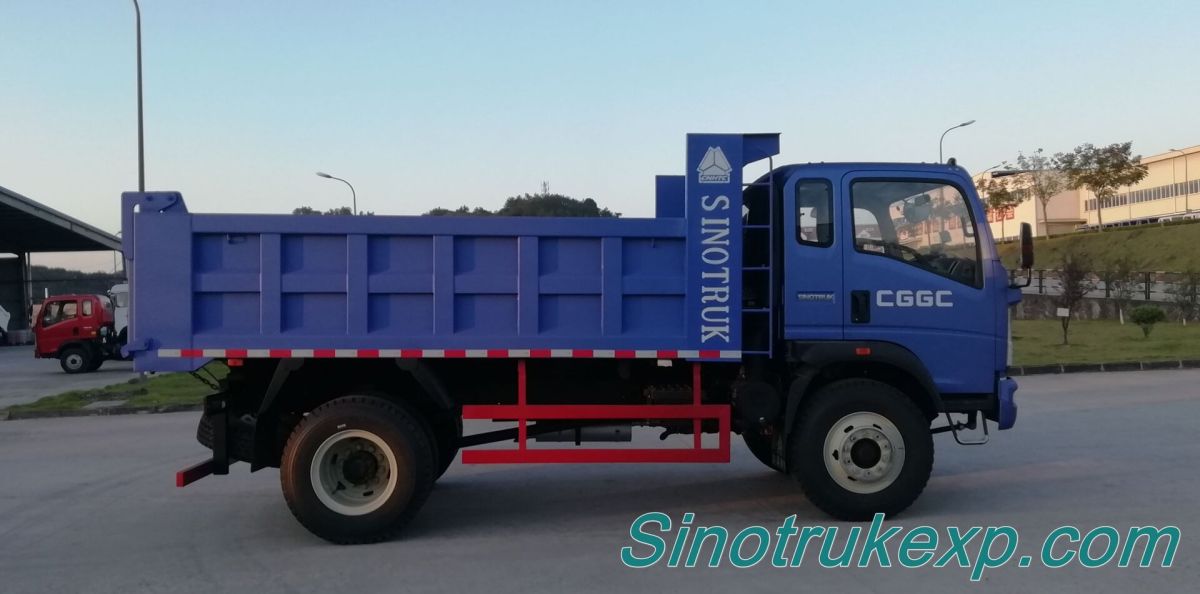

- Product Description -
Vehicle dimensions | |
Wheelbase | 3900mm |
Front overhang | 1320mm |
Rear overhang | 1910mm |
Wheel track of front axle | 2050mm |
Wheel track of rear axle | 1850mm |
Chassis length | 6580mm |
Approach angle | 21° |
Departure angle | 34° |
Maximum driving speed | 85 km/h |
Maximum gradeability | 38%~40% |
Minimum ground clearance | 274mm |
Minimum turning diameter | <16m |
Fuel consumption | 28~30(L/km) |
Cargo body size | 4500mm×2300mm×1000mm |
Overall Dimension | 7130mm×2496mm×3120mm |
width of the cabin | 2080mm |
Weight | |
Kerb.mass | 8900kg |
Gross vehicle weight | 21500kg |
Front axle loading capacity | 5500kg |
Rear axle loading capacity | 16000kg |
Engine Parameters | |
Engine Model | YC6J220-33 |
Rated Power | 162/2500 (KW/rmp) |
Maximum Torque | 760/1400~1700 (Nm/rmp) |
Features | 6-cylinder in-line,6.49 liter |
Clutch | 395A diaphragm spring clutch, single plate |
Gearbox | |
Gearbox Type | HW90510C 10 speed manual control |
Gearbox ratio | |
1 | 11.987 |
2 | 8.976 |
3 | 6.748 |
4 | 4.644 |
5 | 3.805 |
6 | 2.581 |
7 | 1.932 |
8 | 1.453 |
9 | 1.000 |
10 | 0.819 |
R1 | 9.989 |
R2 | 2.151 |
Braking System | |
Type | Air brake system |
Service brake | Dual-circuit air brake |
Parking brake | Spring energy,Compressed air operating on rear wheels |
Auxiliary brake | Exhaust valve braking(EVB) |
Wheels & Tyres | |
Tyres | 11.00R20 |
Wheels | 8.00V-20 |
Steering Gear | |
Type | D39 Hydraulically assisted |
Axles | |
Steer | 153(5.0T)forging l-beam front axle Drum brake |
Drive | HC16(16.0T) central single reduction |
Drum brake | |
Fuel Tank | |
Capacity | 300 Liters (iron ) |
Frame | |
Material | High tensile steel |
Section | 250*80*(7+5)mm |
Frame width | 865mm |
Electrical System | |
Type | SINOTRUK CAN bus System with VCO instrument |
Voltage | 24V |
Batteries | 2x12V, 165Ah |
Alternator | 28V/80A |
Starter | 2.24KW |
Suspension | |
Steer Axle | Semi-elliptical leaf springs with shock absorbers and stabilizer |
Drive Axle | springs Suspension |
