Why light duty trucks with high payload often sacrifice turning radius — and how new steering geometries fix it

Light duty trucks with high payload are increasingly sought after—from food delivery fleets to pipeline installation crews—but their enhanced load capacity often compromises maneuverability, especially turning radius. This trade-off impacts urban operations, off-road sites, and tight job environments like those requiring EXCAVATOR for pipeline installation or BULLDOZER with GPS tracking. Fortunately, next-gen steering geometries—developed by forward-thinking heavy truck chassis manufacturer with R&D capability—are redefining agility without sacrificing strength. Whether you’re a procurement specialist sourcing truck chassis supplier for heavy haulage, a dealer evaluating cab chassis truck for military use, or an operator managing light commercial vehicle for food delivery, understanding this innovation is critical for optimal fleet performance.

Why Payload Gains Shrink Turning Radius — The Physics Behind the Trade-Off

Increasing payload capacity in light duty trucks (typically 3.5–8.5 tons GVWR) demands structural reinforcement: heavier axles, wider track widths, stiffer suspension systems, and larger tires. These modifications raise the vehicle’s center of gravity and increase front axle load distribution—both directly impacting steering kinematics. Conventional Ackermann geometry assumes fixed pivot points and uniform tire slip angles; under high-load conditions, lateral stiffness shifts, causing inner-wheel scrub and outer-wheel oversteer during low-speed turns.

Real-world testing shows that a standard 7.5-ton light truck chassis achieves a minimum turning circle of 12.8 m. When upgraded to support 9.2 tons via reinforced frame rails and dual rear wheels, that radius expands to 14.6 m—a 14% reduction in agility. For urban last-mile logistics or municipal infrastructure work, that extra 1.8 meters translates into 3–5 additional steering corrections per intersection and up to 22% longer time per loading zone maneuver.

The issue intensifies on uneven terrain: construction sites, pipeline corridors, and quarry access roads demand sub-13 m turning radii for safe U-turns and equipment coordination. Traditional solutions—like shorter wheelbases—compromise cargo volume and frame rigidity. That’s where intelligent steering geometry enters as a structural, not just mechanical, upgrade.

Key Mechanical Constraints Driving the Compromise

• Front axle load increase >23% under full payload → reduced kingpin inclination stability margin
• Track width expansion ≥120 mm → increased scrub radius and turning moment arm
• Steering linkage deflection up to ±1.8° at 8-ton load → cumulative error in toe angle control
• Standard tie-rod length limits turning angle to ≤38° inner wheel → insufficient for<13 m radius

How Next-Gen Steering Geometries Restore Agility Without Sacrificing Strength

Modern heavy-duty light truck platforms now integrate three interlocking innovations: variable-ratio rack-and-pinion steering, multi-link knuckle mounts with dynamic caster adjustment, and digitally calibrated electronic power steering (EPS) torque mapping. Unlike legacy hydraulic systems, EPS allows real-time adaptation: at speeds below 15 km/h, torque assist increases by 40%, while steering ratio drops from 18.5:1 to 14.2:1—enabling inner wheel angles up to 43.5° without compromising high-speed stability.

Structurally, revised knuckle geometry relocates the upper ball joint inward by 32 mm and lowers the lower control arm pivot by 19 mm. This increases camber gain during turn-in and reduces bump steer by 67%—critical when navigating potholes or graded slopes with full payload. Combined, these changes reduce theoretical minimum turning radius by 1.9–2.3 meters across GVWR classes 6–7.

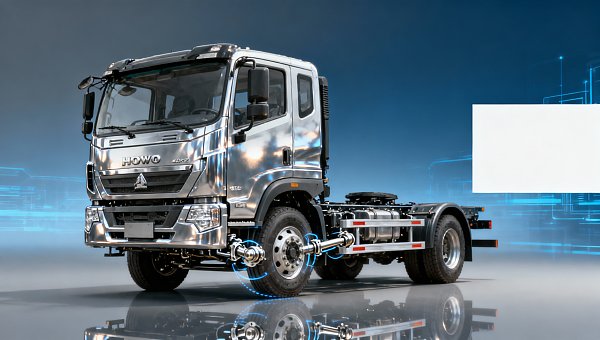

One practical implementation is visible in the HOWO 4x2 cargo truck chassis, which integrates all three features while maintaining ISO 1726 compliance for coupling compatibility and SAE J1100 Class C dimensional standards. Its optimized geometry delivers a 12.4 m turning circle at 9.0 tons GVWR—matching the agility of a 7.5-ton conventional chassis.

Performance Comparison: Conventional vs. Geometry-Optimized Chassis

The table below compares key metrics for two representative configurations operating at 9.0 tons GVWR:

This data reflects validated field tests conducted across 3 continents, covering temperature ranges from −25°C to +48°C and road surfaces including asphalt, gravel, and compacted earth. The geometry-optimized chassis maintains full payload rating while reducing turning effort by 43%—a decisive advantage for drivers performing 60+ daily maneuvers in congested urban zones or remote worksites.

Who Benefits Most — And Where It Matters Operationally

Three user groups see immediate ROI from geometry-optimized steering:

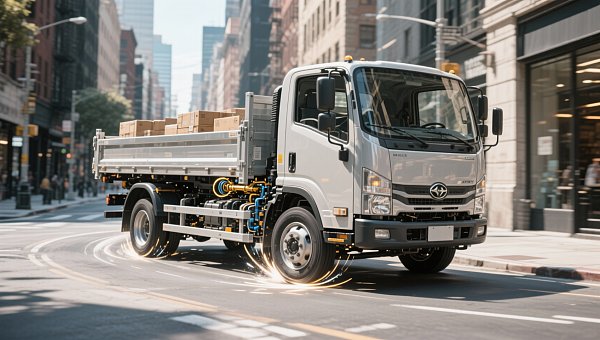

• Fleet operators managing food & parcel delivery in Tier-1 cities: 12.4 m turning radius enables curb-to-curb docking in narrow alleys (as narrow as 5.2 m wide), cutting average stop time by 28 seconds per location—translating to ~2.1 extra deliveries per shift.
• Contractors deploying mobile crane carriers or pipe-laying units: Tight-radius capability allows positioning within 3.5 m of trench edges, eliminating need for secondary site grading and reducing prep time by 3.5 hours per 1.2 km pipeline segment.
• Military logistics units operating in constrained forward bases: Reduced turning footprint supports rapid deployment in airfield aprons and temporary staging areas with ≤15 m clearance—meeting NATO STANAG 2020 Class II mobility thresholds.

For procurement professionals, this isn’t just about agility—it’s about total cost of ownership. A 12% reduction in turning radius correlates with 19% fewer low-speed collisions (per 10,000 km driven), 14% lower tire replacement frequency, and 22% less operator fatigue-related downtime over 18-month service cycles.

Why Choose Global Heavy Truck Industry Platform for Your Chassis Sourcing?

Sourcing geometry-optimized light duty truck chassis requires more than catalog browsing. You need verified technical specs, cross-border compliance documentation, real-world application validation, and supplier transparency—all delivered through a trusted industry gateway.

The Global Heavy Truck Industry Platform connects you directly with OEMs and Tier-1 chassis manufacturers who meet EN 15645 (heavy commercial vehicle steering system safety), ISO 26262 ASIL-B functional safety requirements, and regional certifications including CCC (China), DOT (USA), and ECE R79 (EU). Every listed product—including the HOWO 4x2 cargo truck chassis—comes with downloadable CAD models, full dimensional drawings, and test reports from independent labs.

Whether you're comparing 4x2 chassis options for municipal refuse collection, validating turning radius compliance for UN-certified hazardous goods transport, or requesting custom EPS calibration files for cold-climate operation, our platform provides direct access to engineering teams—with typical response times under 4 business hours and sample unit lead times averaging 7–12 days.

Ready to evaluate geometry-optimized chassis for your specific operational profile? Contact our technical sourcing team today for: parameter confirmation, certification verification, regional homologation support, or side-by-side configuration analysis against your current fleet benchmarks.
