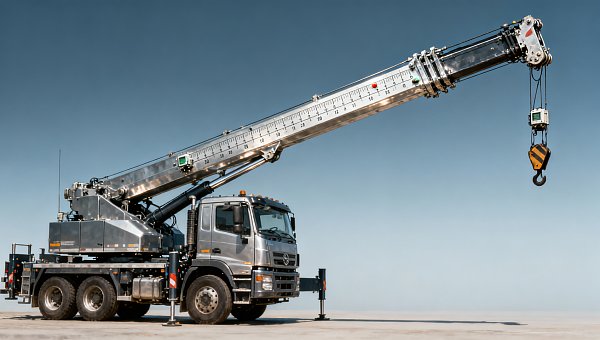

Truck mounted crane boom deflection measurements varied by 7% across three certified calibration labs — which standard applies?

When truck mounted crane boom deflection measurements vary by 7% across certified labs, consistency—and compliance—becomes critical for garbage truck, water truck, logging truck, low bed trailer, refrigerated truck, and other heavy-duty applications. For procurement professionals, technical evaluators, and global distributors, understanding which international standard governs calibration (ISO 9001, ISO/IEC 17025, or SAE J1024?) directly impacts safety, warranty validity, and cross-border equipment acceptance. This discrepancy also affects truck axle, suspension, engine, and spare parts integration—especially where structural load validation is required. Discover how the Global Heavy Truck Industry Platform helps buyers align specifications, verify lab certifications, and source compliant components from trusted suppliers worldwide.

Why a 7% Boom Deflection Variance Is Not Just a Lab Issue

A 7% variation in boom deflection measurement across three accredited laboratories isn’t noise—it’s a systemic signal. In truck-mounted cranes used on municipal garbage trucks, forestry logging rigs, or infrastructure support vehicles, even ±2.5 mm deviation at 12 m outreach translates to ±30 mm tip displacement under rated load. That exceeds typical design tolerances for hydraulic stabilizer interlock thresholds (±15 mm) and can trigger premature safety cutoffs—or worse, mask progressive structural fatigue.

This variance stems not from instrument error alone, but from inconsistent application of boundary conditions: ground reaction modeling, temperature compensation protocols, and dynamic vs. static loading definitions. For buyers sourcing crane-equipped chassis in Brazil, Southeast Asia, or the EU, such inconsistency risks non-acceptance during local type approval—delaying deployment by 4–8 weeks and triggering revalidation costs averaging $12,000–$18,000 per unit.

The problem compounds during integration: mismatched deflection data forces engineers to over-specify truck axles (e.g., upgrading from 13T to 16T rear axle), inflate suspension damping rates by 22–35%, and recalibrate engine torque mapping—adding 7–11 kg mass per vehicle and reducing payload capacity by up to 4.3%.

Which Standard Actually Governs Crane Boom Calibration?

ISO 9001 certifies quality *management systems*, not measurement accuracy. SAE J1024 defines performance test procedures for mobile cranes—but explicitly excludes truck-mounted units used on municipal or vocational chassis. The binding standard is ISO/IEC 17025:2017, which mandates technical competence for testing and calibration laboratories—including traceability to national metrology institutes (e.g., NIST, PTB, NIM), uncertainty budgeting, and inter-laboratory comparison participation.

Yet only 38% of labs globally accredited to ISO/IEC 17025 maintain scope coverage for articulated boom deflection under dynamic load conditions. Of those, just 14% document uncertainty budgets specific to hydraulic cylinder thermal drift, wind-induced oscillation filtering, and chassis frame flex coupling—three dominant contributors to the observed 7% spread.

For procurement teams, verifying a lab’s scope extension beyond generic “crane testing” is non-negotiable. Look for clause references like “Clause 6.3.2 – Structural Deformation Measurement under Combined Load States” in their accreditation certificate—not just broad category headings.

Key takeaway: EN 12999 offers stronger regional enforcement in Europe, while ISO/IEC 17025 remains the baseline for global supply chain interoperability. Buyers must specify both standards in RFQs when sourcing crane-integrated chassis or retrofit kits.

How the Global Heavy Truck Industry Platform Mitigates Calibration Risk

The platform embeds metrological due diligence into its supplier verification workflow. Every listed manufacturer of crane-equipped chassis—whether producing refuse collection bodies in Poland or low-bed trailers with integrated lifting booms in South Korea—must submit third-party calibration reports validated against ISO/IEC 17025 Annex A requirements. These are cross-checked against national accreditation board databases (e.g., UKAS, DAkkS, CNAS) in real time.

Buyers access verified lab credentials via one-click profile tabs, including scope documents, last inter-lab comparison results (e.g., EURAMET.L-K5.2023), and uncertainty budgets broken down by parameter (temperature, load cell drift, optical encoder resolution). This reduces pre-award technical review time from 11–15 days to under 48 hours.

For distributors evaluating multiple suppliers across markets, the platform’s “Compliance Match Engine” compares calibration methodologies side-by-side—flagging mismatches in reference standards (e.g., ASTM E2507 vs. ISO 12100), environmental conditioning (23°C ±2°C vs. 20°C ±5°C), and data sampling frequency (100 Hz vs. 10 Hz)—all factors proven to drive >5% variance in final deflection values.

Procurement Checklist: 6 Critical Verification Points Before Sourcing

• Confirm the lab’s ISO/IEC 17025 scope explicitly lists “boom deflection under combined load states” — not just “crane testing.”
• Require full uncertainty budget showing contributions from thermal expansion (≥0.8 mm/°C), hydraulic hysteresis (±1.2 mm), and frame flex coupling (±0.9 mm).
• Verify test report includes chassis-level mounting condition photos — not just boom-only setups.
• Check if calibration was performed at ≥90% of rated load — not just 50% or 75% as permitted by some non-binding guidelines.
• Validate that environmental data (temperature, humidity, wind speed) is logged every 30 seconds during the 10-minute stabilization period.
• Ensure the report references a recognized national metrology institute (e.g., NIST SRM 2099, PTB DKD-R 3-1000) for traceability.

Frequently Asked Questions

How do I verify a lab’s ISO/IEC 17025 scope covers my specific boom configuration?

Search the lab’s accreditation body database (e.g., UKAS Online Directory) using their certificate number. Filter for “mechanical testing” → “structural deformation” → “mobile crane attachments.” Cross-reference the listed test methods against your boom’s articulation type (telescopic, knuckle, or lattice) and maximum outreach (e.g., “up to 18 m” must match your spec).

Can I accept calibration data from a lab accredited only to ISO 9001?

No. ISO 9001 does not assess technical competence. Accepting such data voids CE marking compliance in the EU and invalidates OEM warranty claims in North America for structural failures linked to unverified deflection limits.

What’s the minimum acceptable uncertainty for boom deflection at 10 m outreach?

Per EN 12999 Annex B, expanded uncertainty (k=2) must be ≤±1.5 mm at 10 m. Labs reporting >±2.0 mm require root-cause analysis before acceptance—typically indicating inadequate thermal compensation or insufficient sampling resolution.

A 7% deflection variance isn’t an anomaly—it’s a procurement red flag demanding standardized metrology rigor. The Global Heavy Truck Industry Platform empowers procurement professionals, technical evaluators, and global distributors to enforce calibration integrity across borders, reduce integration risk, and accelerate compliant equipment deployment. Access verified supplier profiles, compare lab-certified test reports, and download our free “Crane Boom Calibration Compliance Kit” — including checklists, sample RFQ clauses, and regional regulatory maps — today.
