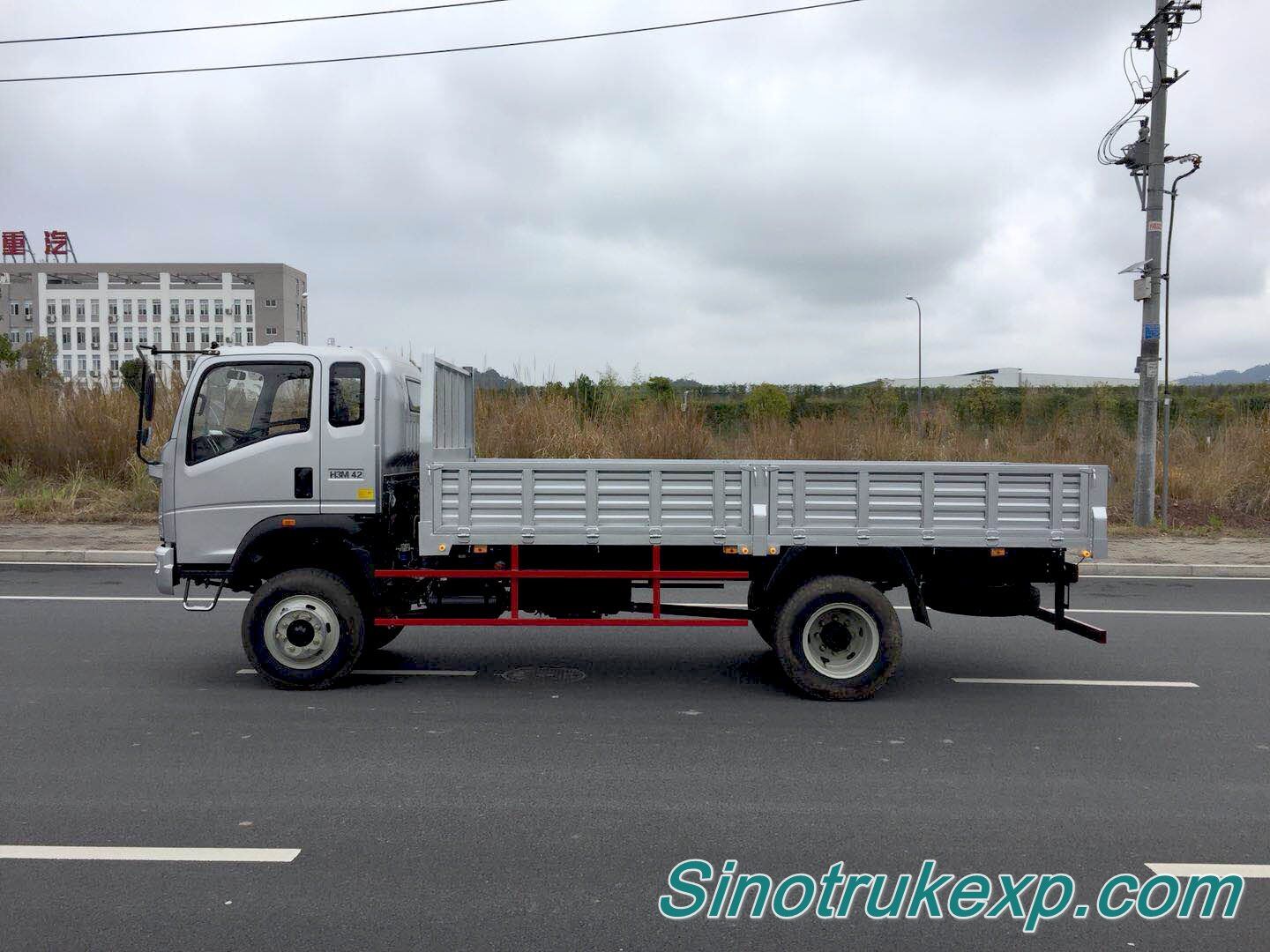

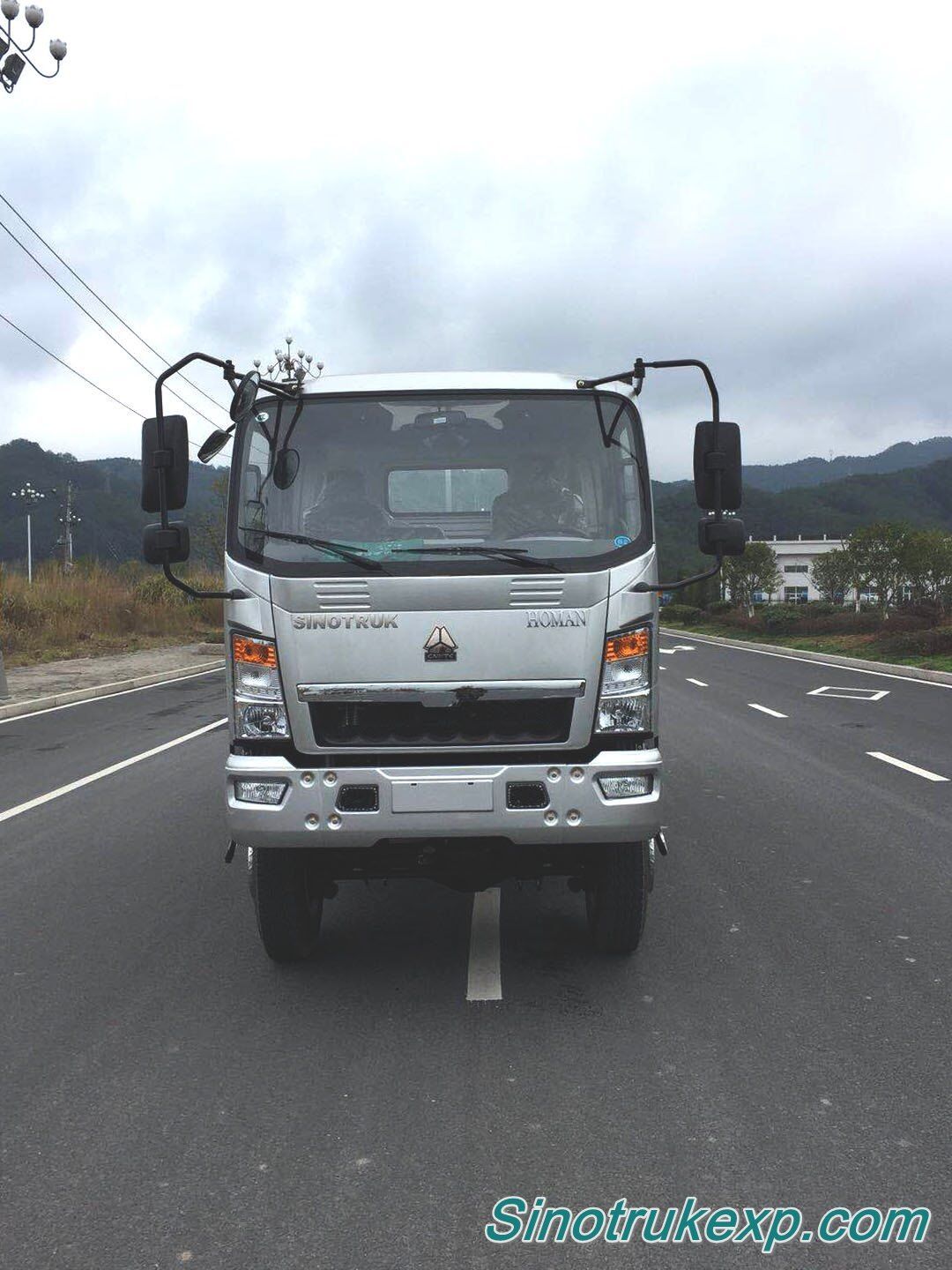

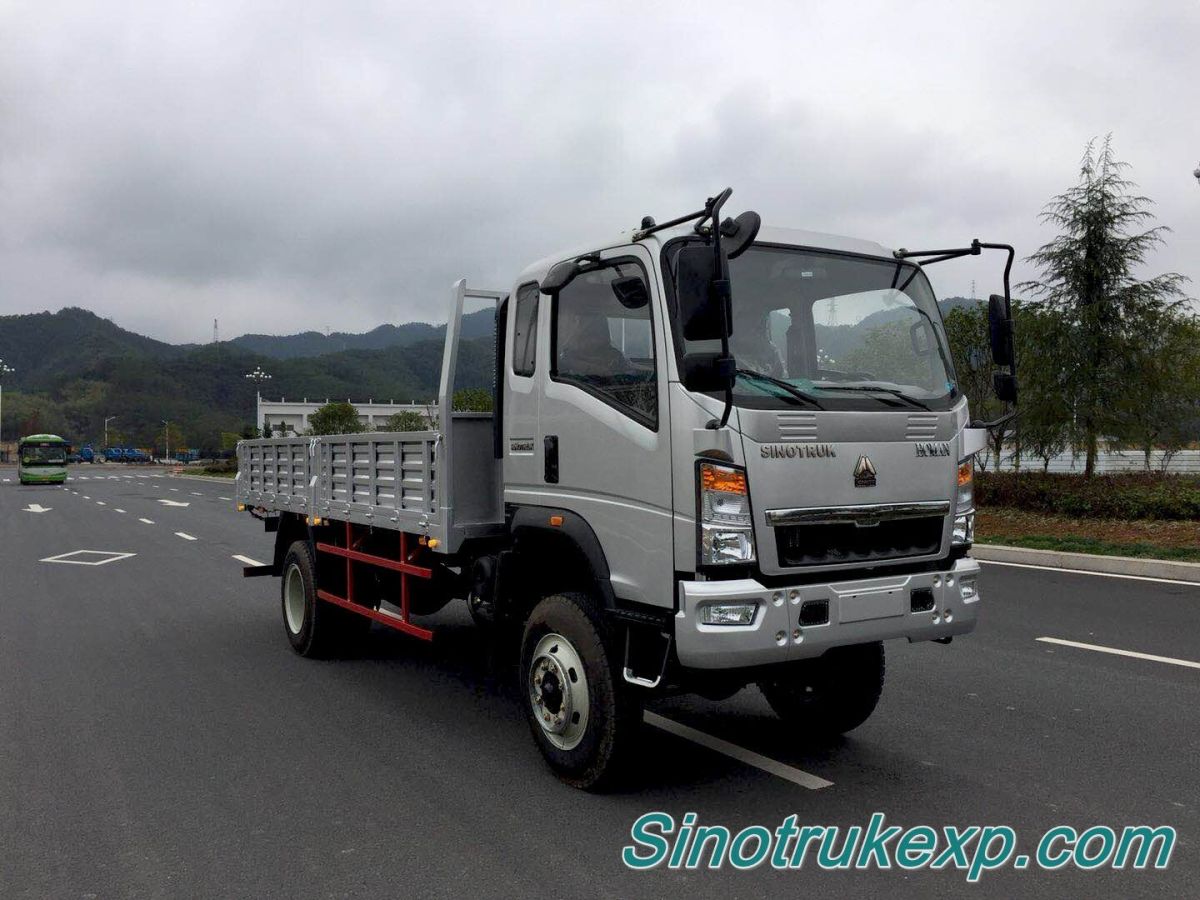

SINOTRUK HOMAN H3-4×4 CARGO TRUCK ZZ1168G4525C1
SINOTRUK HOMAN H3-4×4 CARGO TRUCK ZZ1168G4525C1 160HP

- Product Description -




Vehicle dimensions

Wheelbase

4500mm

Front overhang

1260mm

Rear overhang

2025mm

Wheel track of front axle

1750mm

Wheel track of rear axle

1830mm

Chassis length

7785mm

Approach angle

34°

Departure angle

15°

Maximum driving speed

88 km/h

Maximum gradeability

28%~35%

Minimum ground clearance

380mm

Minimum turning diameter

<16.5m

Fuel consumption

26~28(L/km)

Cargo body size

5900mm×2300mm×550mm

Overall Dimension

7900mm×2300mm×2750mm

width of the cabin

1880mm

Weight

Kerb.mass

4760kg

Gross vehicle weight

11500kg

Front axle loading capacity

2500kg

Rear axle loading capacity

9000kg

  Engine   Parameters

Engine Model

YC4E160-33

Rated Power

118/2600 (KW/rmp)

Maximum Torque

520/1300~1700 (Nm/rmp)

Features

4-cylinder in-line,4.256 liter

Clutch

350 diaphragm spring clutch, single plate

Gearbox

Gearbox Type

DC6J70TC 6 speed manual control

Gearbox ratio

1

6.54

2

3.78

3

2.168

4

1.44

5

1

6

0.81

R

6.53

Braking System

Type

Air brake system

Service brake

Dual-circuit air brake

Parking brake

Spring energy,Compressed air operating on rear wheels

Auxiliary brake

Exhaust valve braking(EVB)

Wheels & Tyres

Tyres

8.25R20 6+1

Wheels

7.00T-20

Steering Gear

Type

GY90

Hydraulically assisted

Axles

Steer

2080(2.5T)forging l-beam front axle

Drum brake

Drive

1094D(9.0T) central single reduction


Drum brake


1094D:i=6.833

Fuel Tank

Capacity

150 Liters (iron )

Frame

Material

High tensile steel

Section

250*80*(6+5)mm

Frame width

865mm

Electrical System

Type

SINOTRUK CAN bus System with VCO instrument

Voltage

24V

Batteries

2x12V, 105Ah

Alternator

28V/55A

Starter

5KW

Suspension

Steer Axle

Semi-elliptical leaf springs with shock absorbers and stabilizer

Drive Axle

Semi-elliptical leaf springs
