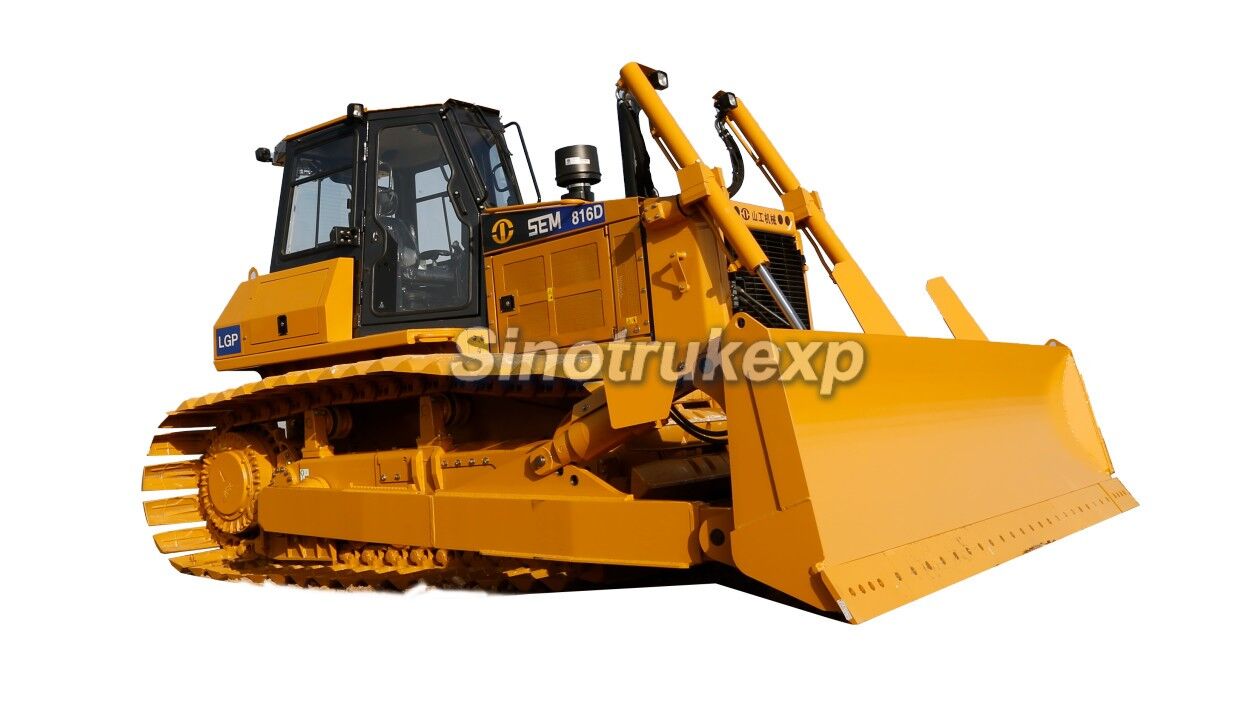

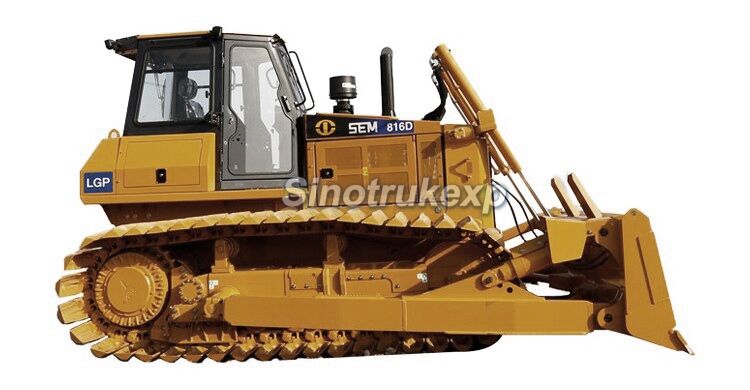

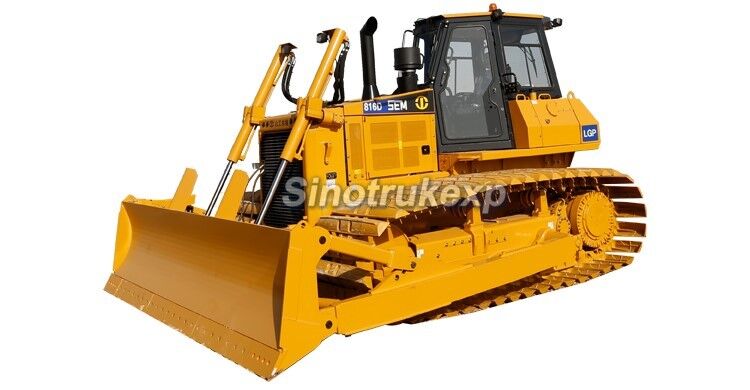

Track Type Tractor SEM816D BULLDOZER
SEM816D BULLDOZER
Key Specification
Operating Weight : 16,900kg (Standard Model)
Ground Pressure : 66.8kPa (Standard Model)
Ground Clearance : 410mm (Standard Model)
Advantage
Highly Efficient and Reliable
Outstanding Operator Comfort
Best-in-class Serviceability
C-Frame with manual & fixed-angle adjustments (up to 25°) for different earthmoving application (Angle Blade)
Manual tilt function for a more robust layout (Angle Blade)

- Product Description -

  • Specification
Model
ModelSEM816DSEM816D LGPSEM816D DSSEM816D CHSEM816D FRSEM816D Angle Blade
Main Specifications
Operating Weight16,900kg19,490kg19,760kg17,160kg18,580kg17,140kg
Max. Slope30°30°/30°30°30°
Engine
Engine ModelWD10G178E25WD10G178E25WD10G178E25WD10G178E25WD10G178E25WD10G178E25
Rated Power131kW131kW131kW131kW131kW131kW
Work Tool
Blade TypeSU SLGPLGPUSU Forestry S ForestryAngle Blade
Undercarriage
Track Shoe Width-Single510mm/950mm560mm560mm510mm
Track Shoe Width-APEX/1,050mm950mm///
Track Shoe Quantity374242373737
Track Roller Quantity677666
Carrier Roller Quantity222222
  • Feature

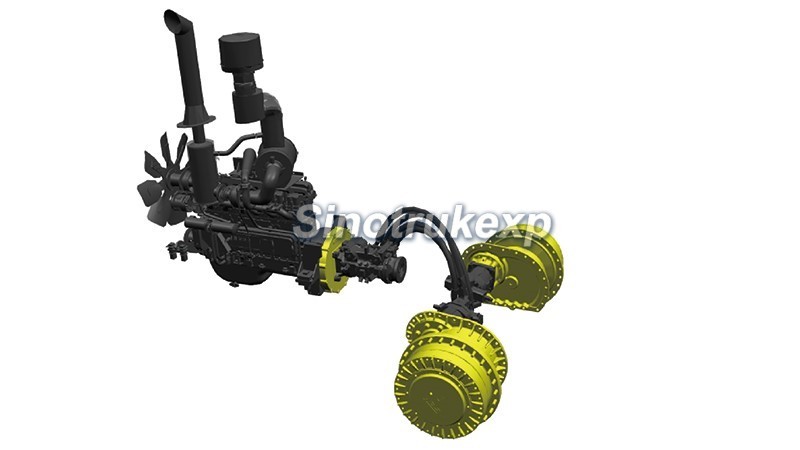

Hydrostatic Drive System

  • Upgraded hydrostatic system not only leverages Caterpillar automatic, dual path, hydrostatic drive with electronic control technology of the third generation TTT, but also increases efficiency and reliability.
  • Adopt Rexroth German new generation one case drive pump to combine control valve, track motor, simplified hose line design, continue to increase the reliability.
  • Caterpillar high pressure hose provides reliability and durability. Caterpillar control technology provides accurate control and high transmission efficiency.
  • Integrated the hydrostatic oil tank and implement hydraulic oil tank to improve filtrated precision and cooling capability of hydraulic system, increasing reliability and reducing maintenance cost.
  • Maintenance costs are reduced by 60% when compared competitors with torque converter and transmission and rear axle.
  • Counter rotation, power turn and infinitely variable speed save lots of time,increasing working efficiency.

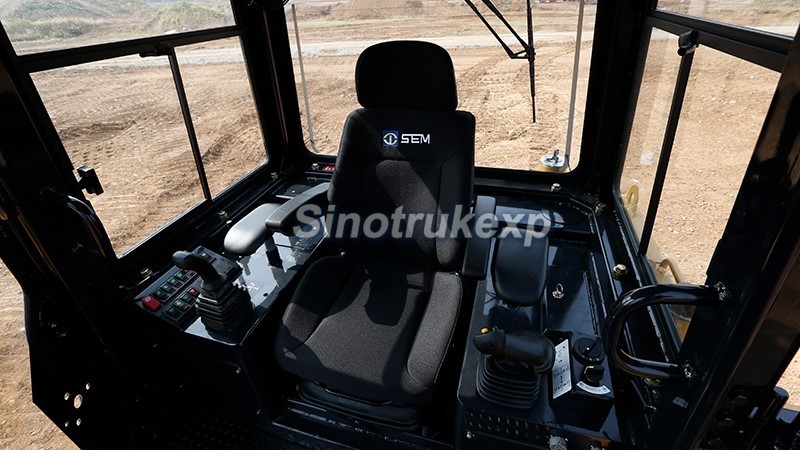

Comfortable Operation

  • Counter rotation—Tracks counter rotate to provide best in class maneuverability.
  • Powered turn—Machine maintains full power through turns to increase productivity.
  • Cruise control — Operators can retain previous speed settings which makes operation easily.
  • Multi-function joystick allows for counter-rotation, powered turn and cruise control.
  • Pilot joystick control provides comfortable precise blade operation.

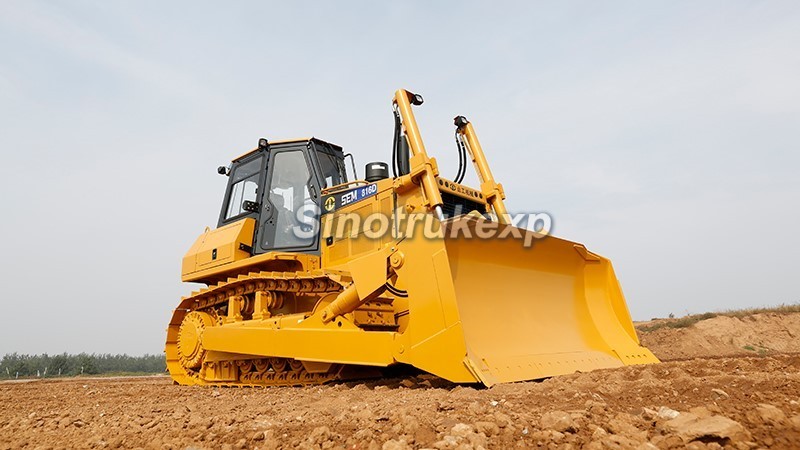

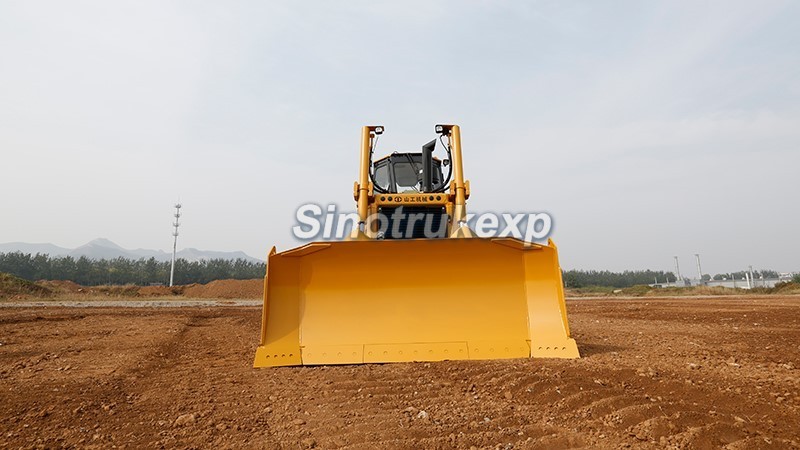

Semi-Universal Blade

  • SU blade combines the excellent penetration of the S blade and the high production capacity of the U blade.
  • Designed for superior load retention and penetration in tightly packed materials.
  • L-shaped push arms bring the blade closer to the machine, providing excellent maneuverability, balance and blade penetration.
  • Blades feature a strong box section design, made from high tensile strength steel to stand up to the most severe applications.

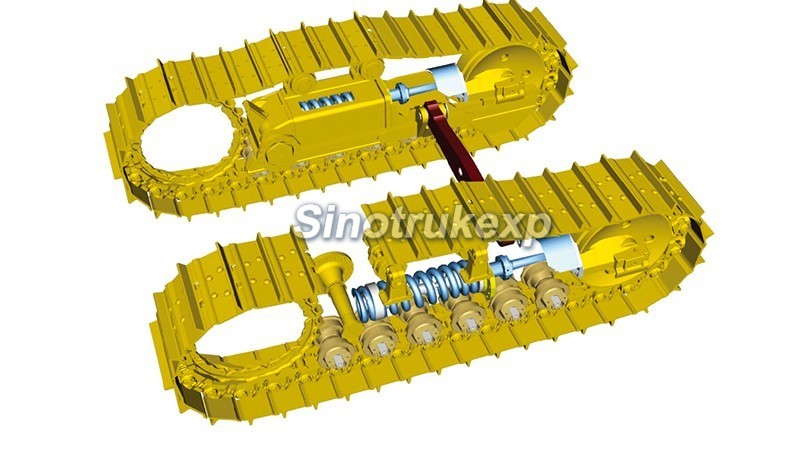

Undercarriage

  • Undercarriage is provided by China industry expert ensures high reliability and resistance to wear.
  • Carrier rollers track rollers and idle rollers are all maintenance free.
  • Planetary final drive design delivers increased torque ratio for higher transmission effi ciency and lower maintenance cost.
  • Durable final drive bearings and multiple wet disc brakes provide reliability, reduce system heat and extend overall life.



Structures

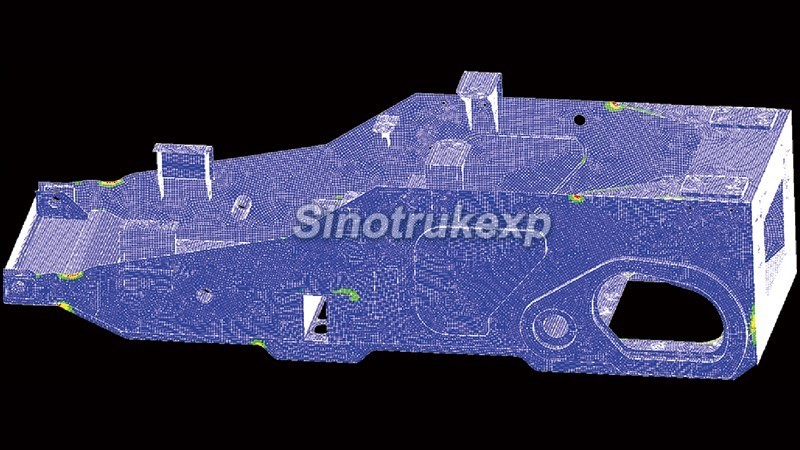

  • Machine structures are analyzed using Finite Element Analysis (FEA) and On Machine Stress Analysis (OMSA) to identify and protect high stress areas.
  • Advanced structure welding technique, relieving welding stress.




Cat ® Product Link™

  • Cat® Product Link™ will support your business, and accurately convey information of the equipment to relevant personnel in a timely and effective manner for your better equipment management.
